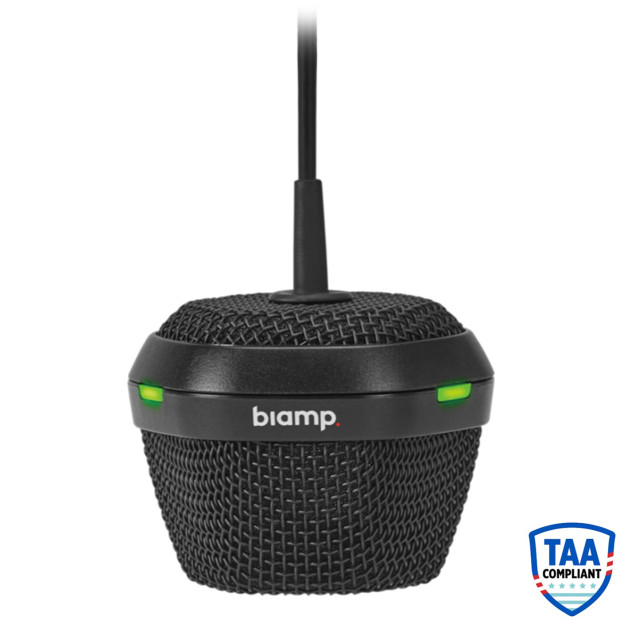

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The DCM-1 ceiling microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DCM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally.
The Devio DCM-1 has four software-selectable elevation angle modes for optimal sound pickup, and a second DCM-1 microphone can be added to the meeting room if needed.
All Devio DCM-1 models (Devio DCM-1 Black & Devio DCM-1 White) comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
| Pendant Microphone | |
|---|---|
| Color | Black |
| Microphone Technology | 8-Element Digital Array |
| Frequency Response | 150 Hz - 16 kHz, ± 3 dB |
| Polar Pattern | Active Beamformed |
| Power | < 1 W, phantom powered from plenum box |
| Pendant Cable Length | 5m (16ft) |
| Connector | Custom 2-pin, cable length (4.9 ft [1.5 m]) |
| Dimensions (H x W x D) | 2" (51 mm) x 2.5" (63 mm) x 2.5" (63 mm) |
| Weight | 0.38 lbs (0.17 kg) |
| Plenum Box | |
| Power | < 1 W, phantom powered from CR-1/SCR-20/SCR-25 |
| Connectors | Two RJ-45: one between DCM-1 plenum box and CR-1/SCR-20/SCR-25, the other between DCM-1 plenum box and additional DCM-1 plenum box |
| Dimensions (H x W x D) | 2" (51 mm) x 4" (102 mm) x 5.4" (137 mm) |
| Weight | 0.86 lbs (0.39 kg) |
