The Biamp Devio DTM-1 is a tabletop microphone for use in Devio® systems. Each microphone includes beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space.

Description

Biamp DTM-1 Beamtracking Tabletop Microphone

The Devio DTM-1 tabletop microphone includes beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DTM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing far-end conference participants to experience the conversation naturally.

The DTM-1 ships with a mounting plate for securing it to a table, and a second DTM-1 microphone can be added to the meeting room if needed.

The Devio DTM-1 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Features

  • Beamtracking technology actively tracks and intelligently mixes conversations around the table
  • Three 120-degree zones for 360 degrees of coverage
  • Three LED mute status indicators
  • Three capacitive touch mute buttons
  • Two selectable directivity modes
  • Mounting plate for secure installation included
  • Easy single-cable installation process

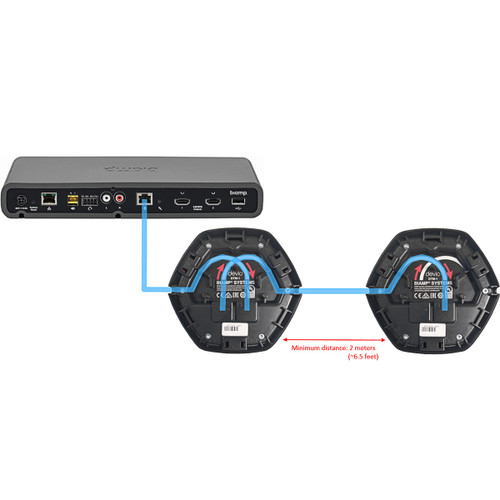

  • Additional RJ-45 for daisy-chain connection to another DTM-1 microphone (maximum of two microphones per daisy chain)
  • 2-year warranty
  • Compliant with the US Trade Agreement Act (TAA)

Specifications

Microphone Technology 8-Element Digital Array
Frequency Response 150 Hz - 16 kHz, ± 3 dB
Polar Pattern Active Beamformed
Connectors Two RJ-45: one between DTM-1 and Devio CR-1/SCR-20/SCR-25, the other between DTM-1 and additional DTM-1
Power Requirements < 1 W, phantom powered from CR-1/SCR-20/SCR-25
Dimensions (H x W x D) 2.2" (56 mm) x 5.1" (130 mm) x 4.8" (121 mm)
Weight 0.6 lbs (0.27 kg)
