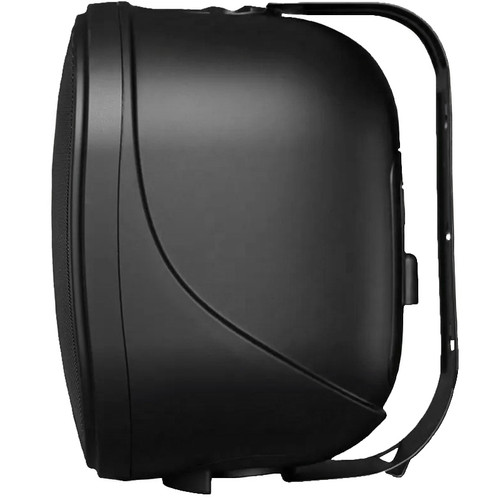

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The OVO5T-B is a pair of black two-way surface-mount loudspeakers designed for high-quality background music and paging in commercial and public spaces. Perfect for projects such as offices, retail environments, hospitality venues, schools, and shopping centers, these loudspeakers combine flexibility, durability, and excellent sound performance.
Each OVO5T-B loudspeaker features a 5.25" coated paper woofer and 1" silk-dome tweeter, delivering clear, full-range sound with wide dispersion, making them suitable for covering larger areas while maintaining budget efficiency. The design supports 16Ω low-impedance or 70V/100V transformer operation, allowing use in both small-scale systems and larger distributed audio installations.
Built with a durable ABS enclosure, the loudspeakers are paintable to match any decor. Installation is quick and versatile thanks to the included wall-mount bracket, spring-lever terminals, and input cover for a neat, professional finish.
| Operating Mode | Passive with selectable low-impedance or 70V/100V operation, single amplified with DSP |
|---|---|
| Operating Environment | Indoor |
| Operating Range (-10 dB) | 74 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130° x 100° |
| Transducers | LF 1 x 5.25" (133 mm) coated paper cone HF 1 x 1" (25 mm) silk dome tweeter |
| Sensitivity | 86 dB (2.83V) 89 dB (1W, 16Ω) |
| Nominal Continuous Power Handling | 25V (40W, 16Ω Nominal Impedance) |
| Transformer | 70V: 30W, 15W, 7.5W, 3W, 1.5W 100V: 30W, 15W, 6W, 3W |
| Recommended Amplifiers | 40W - 80W, 8Ω (18V - 25V) |
| Input Connection | Spring-lever terminals with wiring cover |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | Pan and tilt U-bracket |
| Compliance | IEC 62368-1 certified |
| Environmental Rating | IP40 per IEC 60529 |
| Dimensions (H x W x D) | 10.07" (256 mm) x 6.56" (167 mm) x 7.44" (189 mm) |
| Weight | 6.8 lbs (3.08 kg) |
| Shipping Weight | 17.75 lbs (8.05 kg) |
