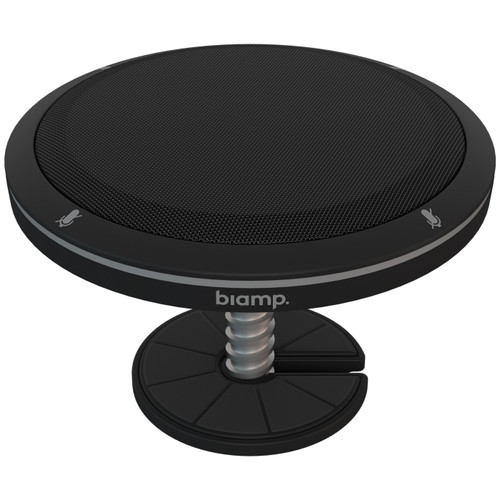

Biamp Parle TTM-X AVB Low Profile Beamtracking Tabletop Microphone - Black

Part #:
920-00510-10000
Model #:
Parle TTM-X Black
Availability:

Special Order (Return conditions apply)

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Biamp Parle TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.

Description

Biamp Parle TTM-X AVB Low Profile Tabletop Microphone

The Parlé TTM-X is an AVB low profile tabletop microphone for use in Tesira systems. Comprising a network box and a tabletop microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TTM-XEX. A maximum of two microphones are permitted (one TTM-X with TTM-XEX).

The Parlé TTM-X Black complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Features

  • Measures 4.7 inches (110 mm) in diameter
  • Sits directly on a table top to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Network box which includes DSP for Beamtracking
  • Uses only one channel of AEC per mic
  • Single cable connection via CAT cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator

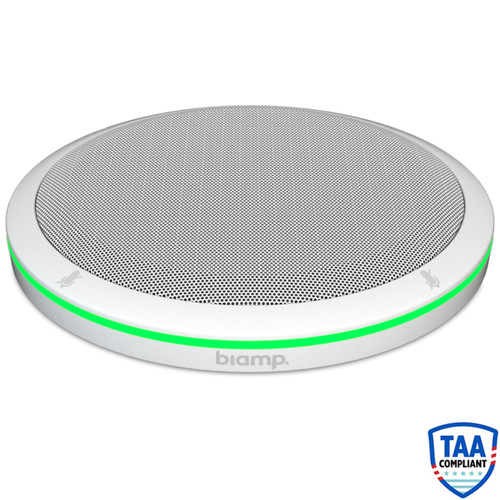

  • Available in either black or white
  • Additional RJ-45 connection for TTM-XEX
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems' five-year warranty

Specifications

Polar Pattern Beamformed
Connector RJ-45 (cable length 6.6 feet [2 meters])
Dimensions (Dia x H) 4.3" (110 mm) x 0.7" (18 mm)
Weight 0.5 lbs (0.23 kg)
