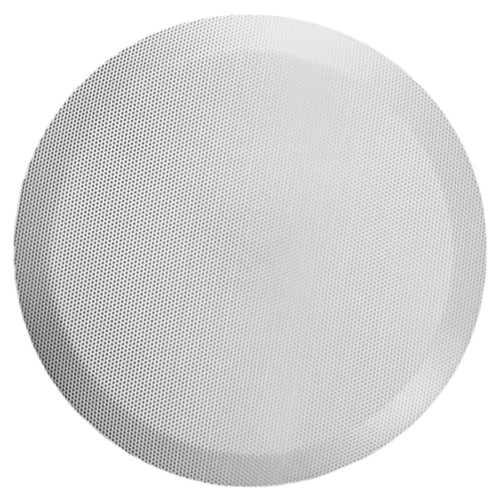

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.

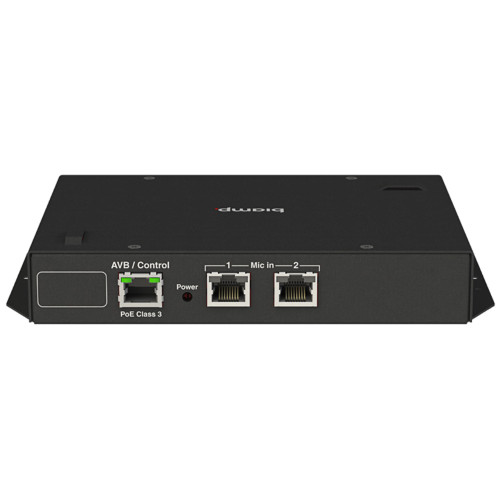

The Parlé TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.
The Parlé TCM-XEX Black complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
| Microphone Technology | 16-Element Digital Array |
|---|---|
| Frequency Response (150 Hz - 16 kHz) | ± 3 dB |
| Polar Pattern | Active Beamformed |
| SNR (at 1 kHz, 94 dB SPL A-Weighted) | > 76 dB |
| Maximum SPL (at < 1% THD) | 109 dB |
| Dynamic Range (THD+N < 1%) | 92 dB, A-Weighted |
| Connector | RJ-45 |
| Power | Custom/Proprietary |
| Max Distance Between Devices | 33 ft (10 m) between TCM-XEX and DSP host device |
| Compliance | FCC Part 15B (USA) CE marked (Europe) UL and C-UL listed (USA and Canada) RoHS Directive (Europe) Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces |
| Dimensions (H x Dia) | 0.6" (15 mm) x 5.9" (150 mm) |
| Weight | 0.7 lbs (340 g) |
