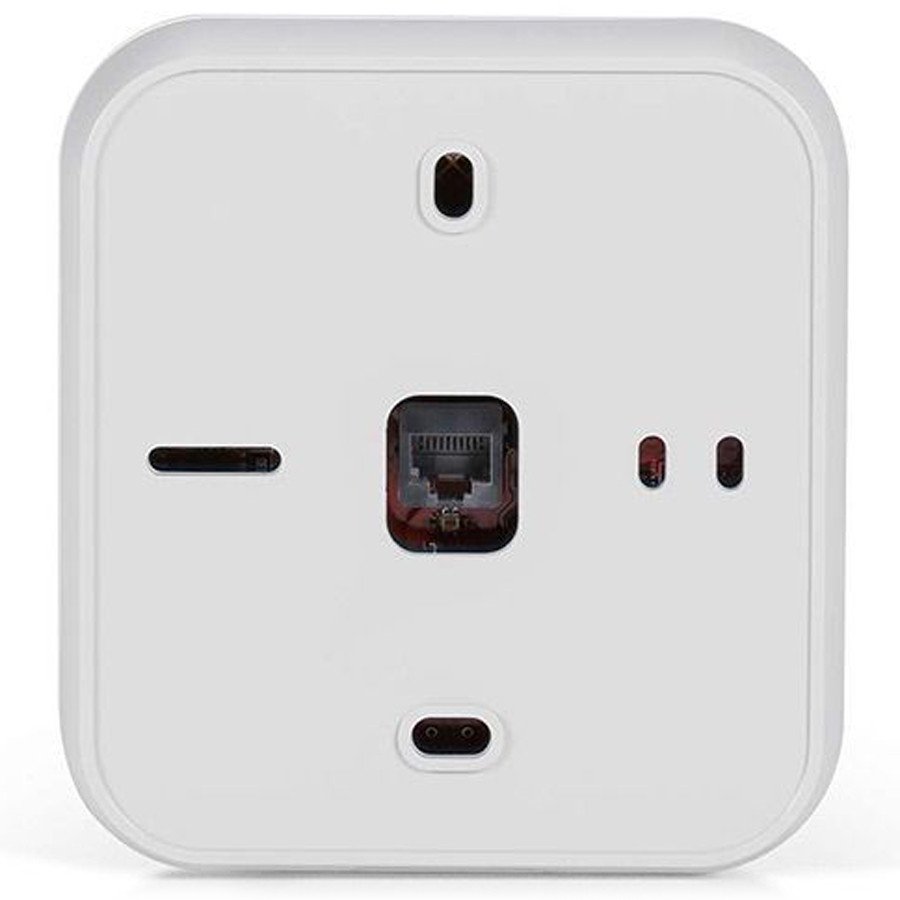

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Tesira TEC-1s is an Ethernet control device for use with all Tesira systems. It offers a simple, intuitive interface for end users and can be installed and configured to fit the unique needs of a particular application.
The TEC-1s connects via standard CAT-5/6/7 cabling and is powered over Ethernet, eliminating the need for custom cabling and local power sources. Multiple remote control panels can be connected over large distances using standard network technology. The TEC-1s is surface mounted.
The Tesira TEC-1s complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
| Power Consumption | PoE (IEEE 802.3at Class 1, 4W) |
|---|---|
| Control Cable Requirements | Unshielded twisted pair (UTP) wiring, 100BaseT interface (CAT-5/6/7 Ethernet cable) using either RJ-45 or Insulation Displacement Connector (IDC) |
| Control Cable Length | 330' (100 m) Ethernet cable length can be extended with standard PoE network technology |
| Control Wiring Topology | Standard Ethernet network wiring |
| Control Programming | Each control configured for specific operation by the system design software |
| Compliance | RoHS Directive; CE; FCC |
| Dimensions (H x W x D) | 5.1" (130 mm) x 4.7" (120 mm) x 1.25" (32 mm) |
| Weight | 0.5 lb (0.2kg) |
