Blizzard Lighting G-Max150 150W Moving Head LED Spot Light (Discontinued)

Part #:
123517
Model #:
G-Max 150
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

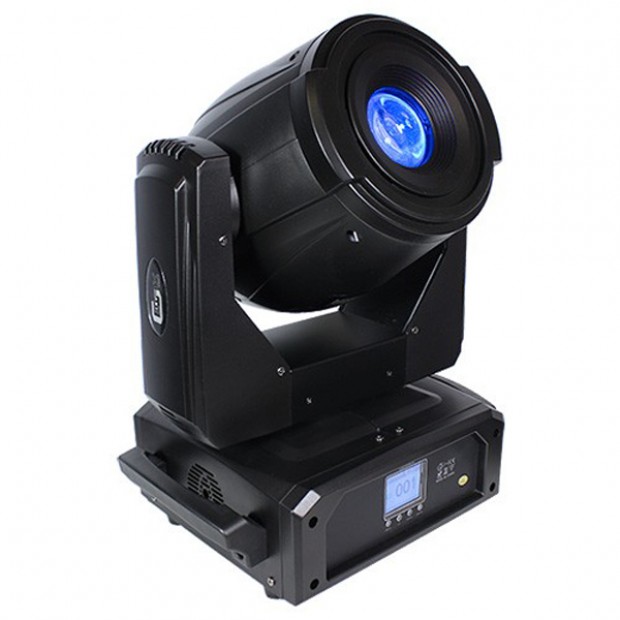

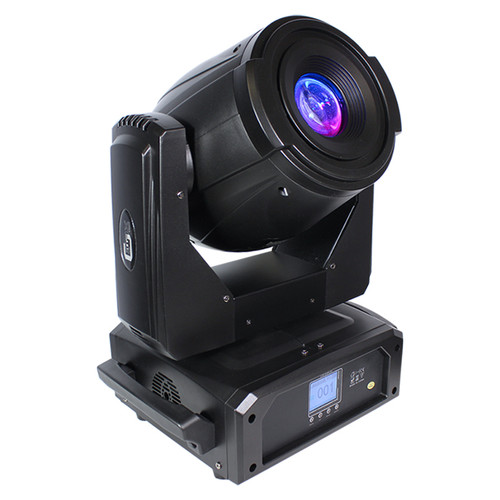

Blizzard Lighting's G-Max150 is a 150W LED moving head spot light with 3-phase steppers for 540º pan in 2.2 seconds and 270º tilt in under 1.2 seconds, 3 and 8-facet rotating, indexable prism, and 2 gobo wheels with 7 gobos each for maximum variety.

Description

Gotta have it brighter, faster, stronger, longer? Then you gotta have the G-Max150. With an eyeball-ripping 150-watt LED light source and a bag filled with lighting goodies, G-Max150 is built to impress, and do it for less!

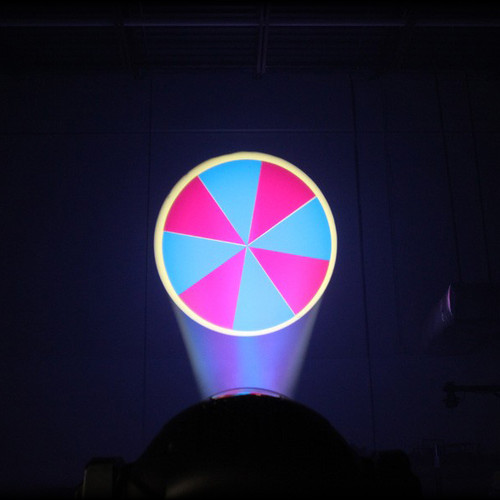

Gobos? How about two wheels, each with 7 gobos, including 7 rotating, indexing and interchangeable. Glass? You bet! It has 4 of them installed and ready to rock. Blizzard even threw in two extra gobos - so you can change things up when you're feeling saucy.

Wanna break things up a little? Do it all with G-Max's 3-facet AND 8-facet rotating, indexable prism. Going for a more smooth, sultry look? Try G-Max's frost filter for that subtle glow that satisfies, then blow 'em out of the water with the pinpoint accuracy and beam shaping from G-Max's smooth, multi-mode iris.

Did Blizzard mention speed? They didn't call it G-Max on accident. That's "Max" as in "Maximum speed and performance," my friend. It has 3-phase steppers under the hood for 540° pan in 2.2 seconds, and 270° tilt in under 1.2 seconds. An that's silent speed, son. G-Max's speed sensitive fans are as quiet as they come.

Then there's G-Max's multiple built-in programs and sound-active mode, for when you just want to go where the beat takes you.

Still want more? Try on a full color LCD display menu system for size. They think you'll like the way it fits. Then, rig it all up with 1/4-turn omega mounting brackets, POWERCON™-compatible power connections and 3 and 5-pin DMX. Blizzard has you covered.

Sure, there are other fixture out there that have "G" in the name, but this one ends with Max! Nothing beats the Max... Nothing!

Features

  • Single 150W white LED light source
  • 16-Bit smooth P&T resolution
  • Pan: 540° Tilt: 270° with 3-phase motors
  • Automatic pan/tilt position correction
  • User selectable 21/23/24-channel DMX modes

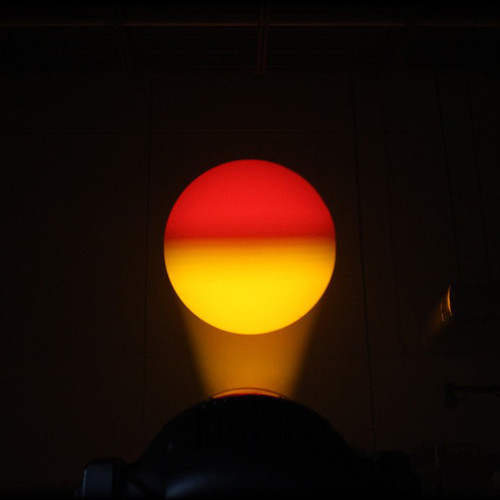

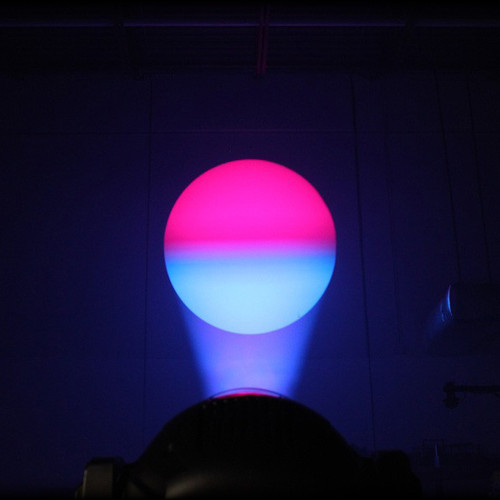

  • 7 Colors + open color wheel with half-colors
  • 2 Gobo wheels, 1 static/1 rotating both with 7 gobos + open   Gobo Size: 24.9mm
  • 3/8-Facet dual prism with variable speed and direction
  • 0-100% Linear LED dimmer
  • Extremely silent cooling fans
  • 3-Pin and 5-pin male/female input and outputs
  • PowerCon™ compatible AC power In/Out connectors

Specifications

Operating Voltage 90-250VAC, 50-60 Hz
Power Consumption 266W, 2.28A, PF: .99
LED 150W white LED, 60,000 hours
Beam Angle 15 degree beam
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Protocol USITT DMX-512
DMX Channels 21/23 or 24-channel DMX modes
Input/Output 3/5-pin XLR Male/Female
Other Operating Modes Standalone, Master/Slave, Auto, Sound Active
Warranty 2-year limited warranty, does not cover malfunction caused by damage to LEDs
Dimensions (H x W x D) 18.9" (480 mm) x 15" (380 mm) x 10.2" (260 mm)
Weight 33 lbs (15 kg)

DOCUMENTS

In The Box

  • (1) G-Max™ 150 Moving Head Spot
  • (1) Power Cord
  • (1) Safety Cable
  • (1) Set of Mounting Brackets
  • (1) User Manual
