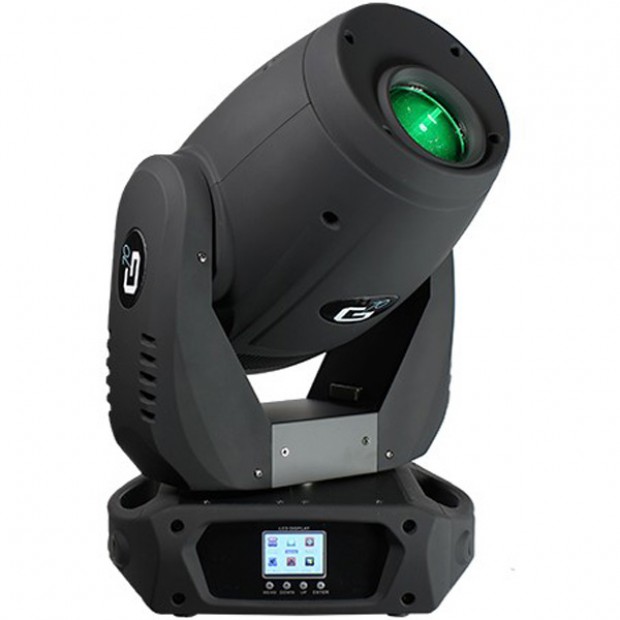

Blizzard Lighting G70 LED Moving Head Spot

Home /
Blizzard Lighting G70 LED Moving Head Spot (Discontinued)

Description

Details

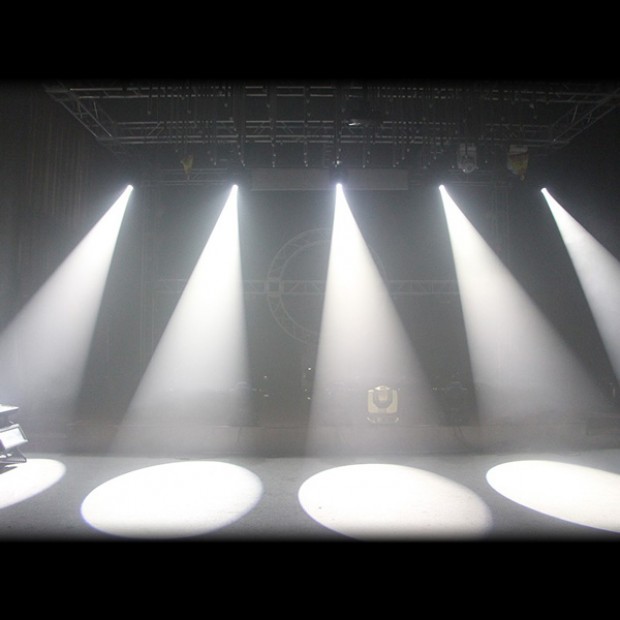

Built to impress, the Blizzard Lighting G70™ is a precise, feature-rich moving head spot fixture that produces bright, even beams of light from its advanced LED optical system which includes 7 high output 10W CREE® LEDs. The combination of dual gobo wheels, a richly saturated color wheel, and its three-facet prism enables awesome effects and totally smooth gobo morphing!

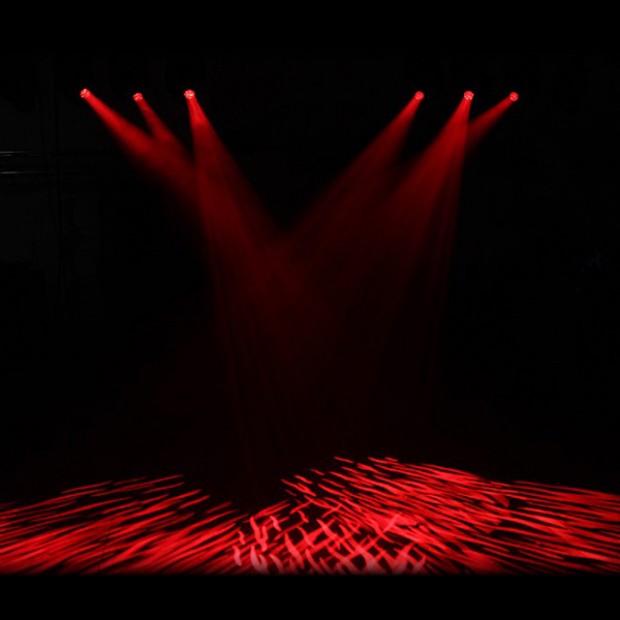

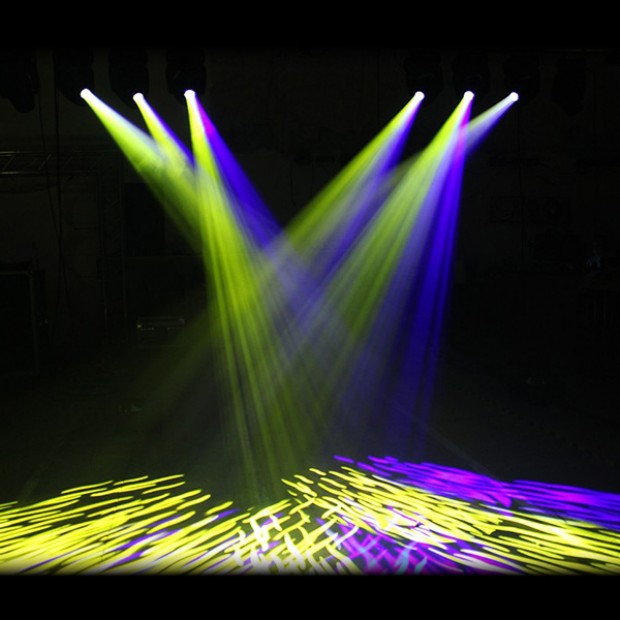

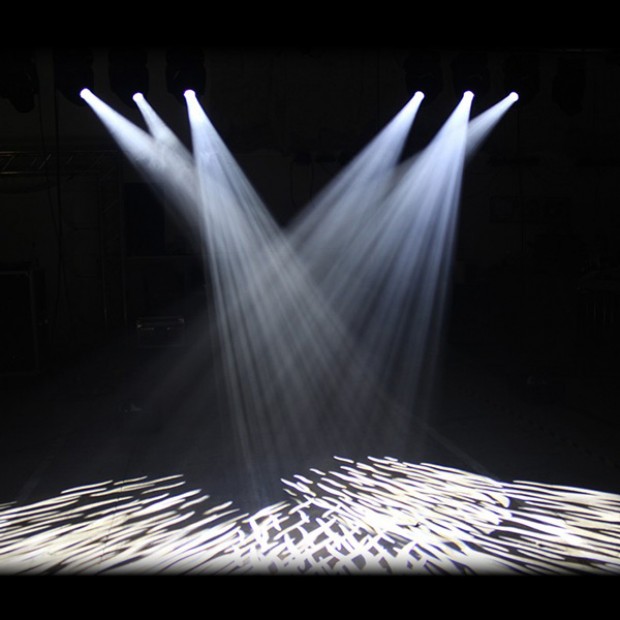

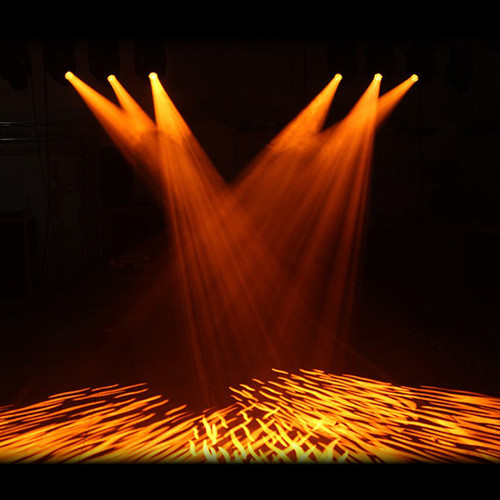

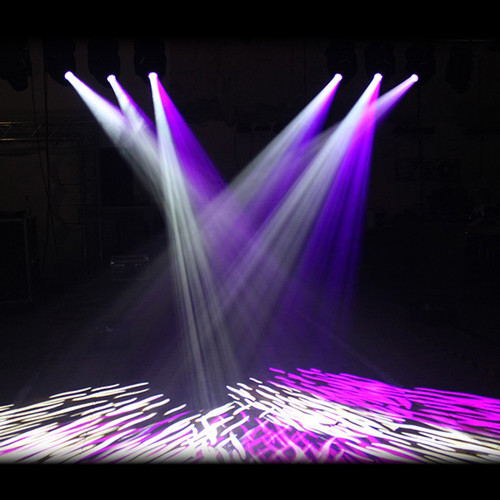

With its 540/270 degree pan & tilt, and dual gobo wheels (#1 rotating, with 2 metal, 4 glass + open, and #2 with 7 metal gobos + open), the G70™ will amaze your audience with fast paced, single, rotating or layered dual gobo display. Then add a 3-facet rotating prism effect, shake effects, or 1-20Hz cycle strobe for endless amounts of spectacular colored beam effects! You can put on a really high impact light show buy running multiple G70™ fixtures with optional reversed pan & tilt in either 11/17-channel DMX master/slave mode, your choice of 3 awesome auto run programs, or even automated sound active mode!

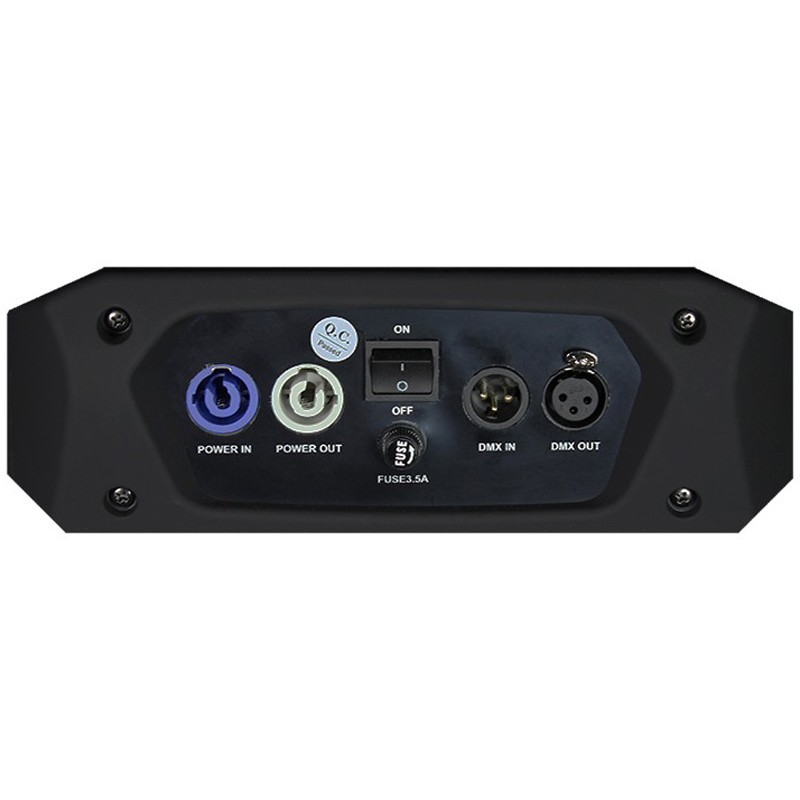

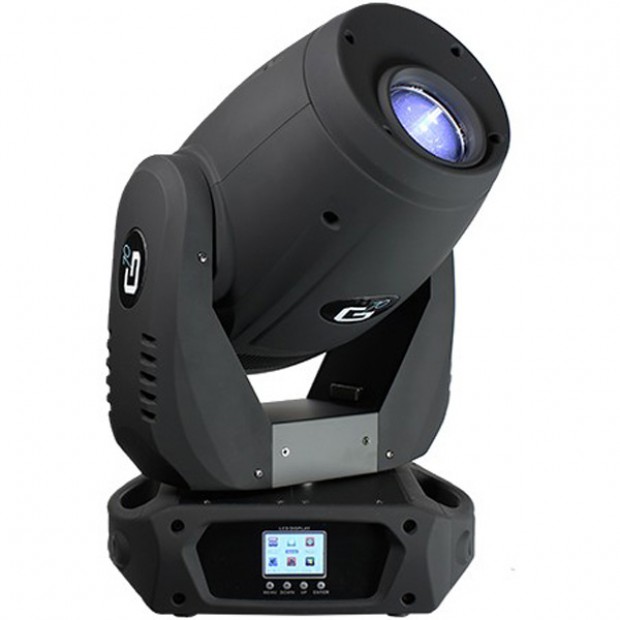

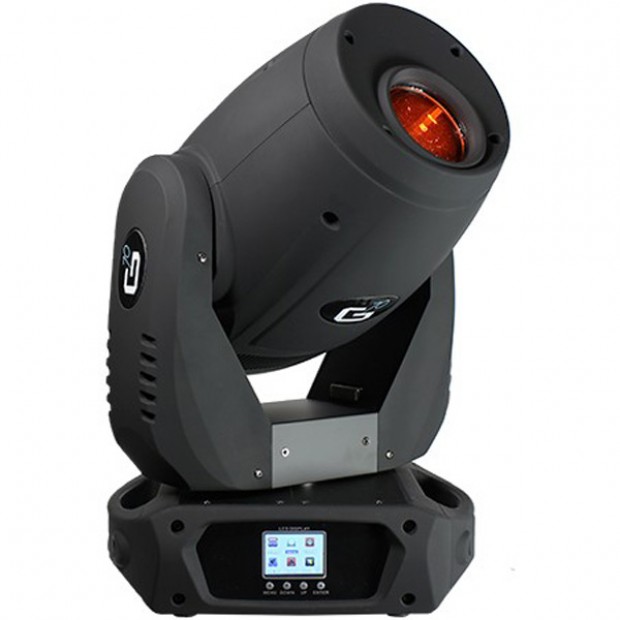

The G70™ comes equipped with an easy-to-use LCD 4-button control panel, dual side handles for easy transportation, industry standard powerCON® compatible power In/Out connections, DMX In/Out jacks, and dual quarter-turn “Omega” quick connect type clamp brackets, making this one intensively engineered, incredible moving head spot fixture!

Its bright, feature packed, and super affordable... the G70™ really delivers!

Features

Features

Compact Intelligent Moving Head Fixture
70W (7 x 10W) CREE® LEDSource
7 Dichroic Colors + White
11/14-Channel DMX Control Modes

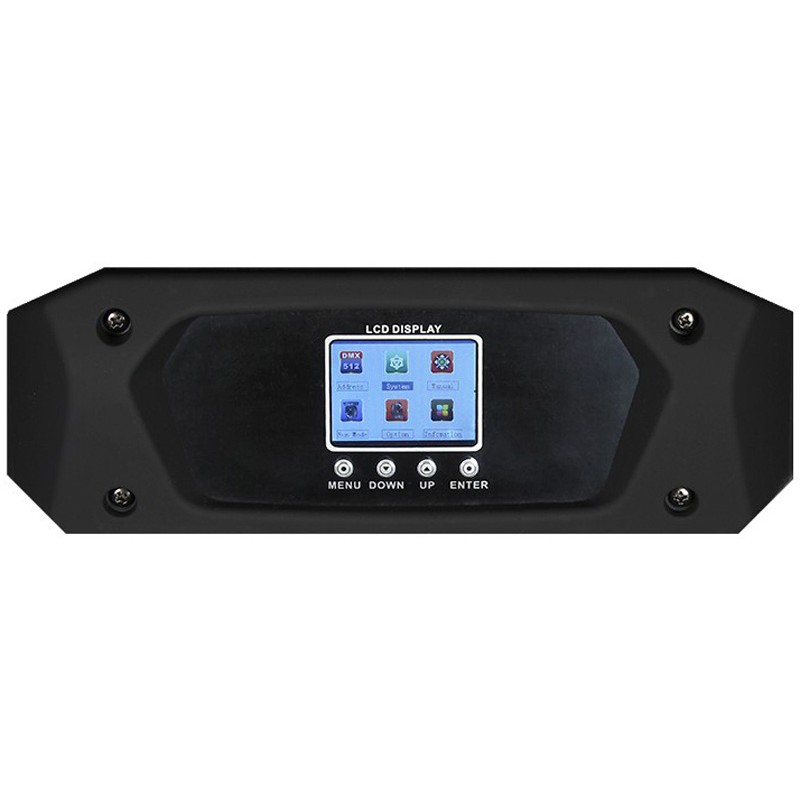

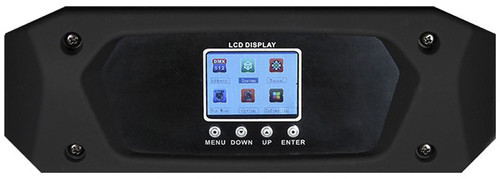

4-Button LCD Control Panel
Pan: 540º/ Tilt: 270º (8-16 Bit Resolution)
Dual Gobo Wheels
Static Gobos: 7 Metal + Open
Rotating Gobos: 2 Glass, 4 Metal + Open
Gobo Size: 31.9mm
Rotating 3-Facet Prism
Variable Electronic Dimmer (0 – 100%)
Electronic Focus
Gobo-Flow, Rainbow-Flow + Shake w/Bi-Directional Rotation
Built-In Auto & Sound Activated Programs

Specification

Operating Voltage	90-260VAC 50/60Hz (auto-ranging)
Power Consumption	119W, 1.58a, pf: .61
Fuse	3A, 250V
LED	70W (7 x 10W) CREE® LED Source
Beam Angle	15 degree
Luminous Intensity	45,300 Lux @ 1m \| 8,300 Lux @ 2m
Pan	540 degrees
Tilt	270 degrees
Max. Operating Temperature	104 degrees F (40 degrees C) ambient
Protocol	USITT DMX-512
DMX Channels	11/14 Channel
Input	3-pin XLR Male
Output	3-pin XLR Female
Warranty	2-year limited warranty, does not cover malfunction caused by damage to LED’s
Dimensions (H x W x D)	21.5" (546 mm) x 13.3" (341 mm) x 10.5" (265 mm)
Weight	33.1 lbs (15 kg)
