Blizzard Lighting IRiS R2 LED Video Panel 2.9 mm Pixel 168 x 168 Resolution (Discontinued)

2.9mm Indoor LED Panel

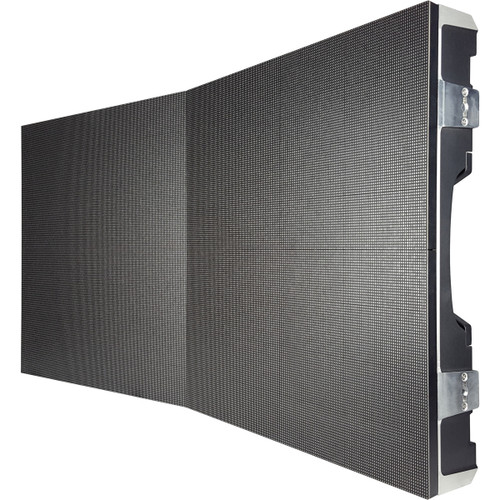

IRiS™ R2 is an ETL listed professional indoor rated LED video panel with a 2.9mm pixel pitch for high resolution at both short and far viewing distances, and have an exceptional 1200nit brightness with a 3840Hz refresh rate. They are designed for easy one manhandling, and their sophisticated quick lock system makes setup a breeze. These panels also feature fast and accurate side locks that allow curved connections from 10° concave to 5° convex.

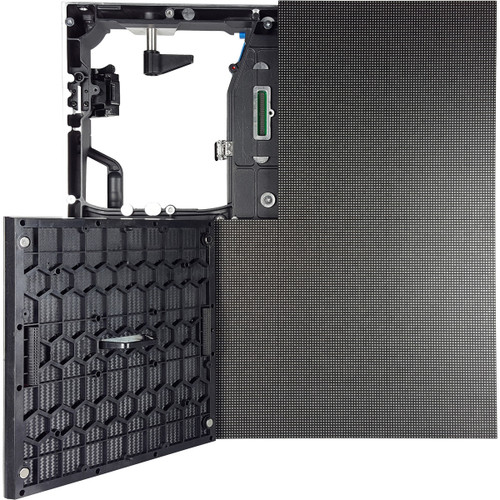

Quick + Easy Maintenance

These panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 4x magnetic-mount front/rear modules per panel. They can be controlled flawlessly with the Novastar® TB6 or VX4S LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable.

• Panel Dimensions: 500×500x100mm
• Pixel Pitch (mm): 2.9
• LED Type: Blackface SMD 2020
• Pixel Per Panel: 168×168
• Curvature: 10° concave, 5° convex maximum
• Brightness (cd/m2): 1200
• Refresh Rate (Hz): 3840
• Panel Material: CNC + Cast Aluminum
• Modules Per Panel: 4
• Module Dimensions: 250×250mm
• Viewing Angle (H/V) (°): 150/140
• Send/Receive: NovaStar® Enhanced (Armor Series)
• Power: Neutrik® powerCON® in/out
• Data: Neutrik® etherCON® in/out
• IP Rating (Front/Rear): IP40/IP21
• Certificate: cETLus | FCC | CE | RoHS

Cut Sheet
