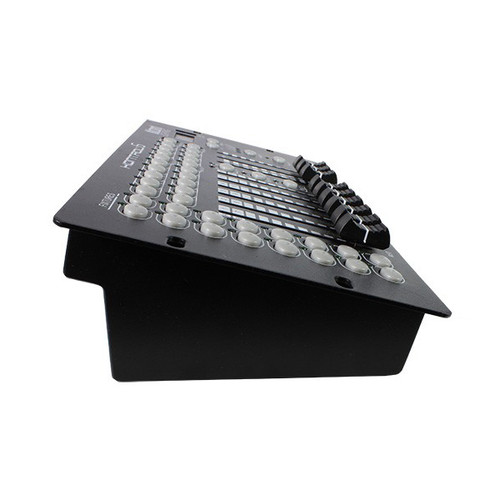

Blizzard Lighting Kontrol 6 12-Channel 6 Fader DMX Controller
Blizzard Lighting Kontrol 6 12-Channel 6 Fader DMX Controller
Blizzard Lighting Kontrol 6 12-Channel 6 Fader DMX Controller
By Blizzard Lighting

Blizzard Lighting Kontrol 6 12-Channel 6 Fader DMX Controller

Write a Review
Part #:
123571
Model #:
Kontrol 6
MSRP: $214.99
$159.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Blizzard Lighting Kontrol 6 is the perfect compact DMX controller to compliment LED lighting fixtures with 6-in-1 LEDs with its conveniently labeled red, green, blue, white, amber, and UV sliders!

Description

The perfect compact DMX controller to compliment LED lighting fixtures with 6-in-1 LEDs with its conveniently labeled red, green, blue, white, amber, and UV sliders!

The Kontrol 6™ will allow you to control up to 18 fixtures composed of 10 channels each and up to 16 programmable scenes. Its sixteen chase banks can contain up to 200 steps composed of saved scenes or manual inputs in any order. Programs can be triggered by music, automatically or manually. Plus, all chases can be executed at the same time.

On the surface of the Kontrol 6™, you will find various programming tools such as 6 universal channel sliders, quick access fixture + scene buttons, and an LED display indicator that makes for easier navigation of controls and menu functions.

Features
  • DMX512/1990 Standard
  • Controls 16 fixtures of up to 12 channels, 192 channels total
  • 18 preset scene/color banks, 9 per page
  • Record up to 18 chases with up to 200 scenes per chase
  • 6 sliders for direct control of channels
  • Built-in microphone for music mode
  • Auto mode program controlled by fade time sliders
  • DMX out: 3-pin XLR
  • LED information display
  • Blackout function and instant strobe with variable speed fader
  • USB Backup/Restore of Data

Specifications
Operating Voltage 9-12 VDC, .3A (From included power supply)
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Protocol USITT DMX-512
DMX Channels 192
Output 3-pin XLR Female
USB Specification 1.0
Disk Format FAT16 / FAT32 ONLY
Maximum Disk Size 4GB
Warranty 2-year limited warranty
Dimensions (H x W x D) 2.75" (69.5 mm) x 5.6" (142 mm) x 10.2" (255 mm)
Weight 3.25 lbs (1.5 kg)

DOCUMENTS

In The Box
  • (1) KONTROL 6™ DMX Controller
  • (1) 9VDC, 300ma (minimum) AC/DC Adaptor
  • Warranty Card & Warranty Info
  • User Manual
