The perfect compact DMX controller to compliment any LED lighting fixtures with 3/4/5-channel modes. Its 5 conveniently labeled red, green, blue, white and amber sliders make for ultra easy color-mixing control!
The Kontrol 5™ will allow you to control up to 16 fixtures composed of 10 channels each and up to 16 programmable scenes. Its sixteen chase banks can contain up to 200 steps composed of saved scenes or manual inputs in any order. Programs can be triggered by music, automatically or manually. Plus, all chases can be executed at the same time.

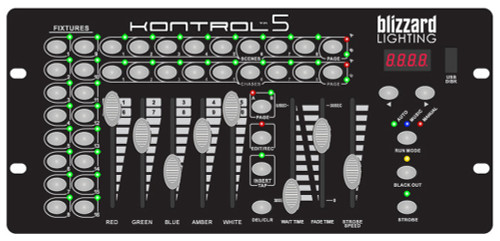

On the surface of the Kontrol 5™, you will find various programming tools such as 5 RGBAW/universal channel sliders, quick access fixture and scene buttons, and an LED display indicator for easier navigation of controls and menu functions.
| Operating Voltage | 9-12 VDC, .3A (From included power supply) |
|---|---|
| Max. Operating Temperature | 104 degrees F (40 degrees C) ambient |
| Protocol | USITT DMX-512 |
| DMX Channels | 160 |
| Output | 3-pin XLR Female |
| USB Specification | 1.0 |
| Disk Format | FAT16 / FAT32 ONLY |
| Maximum Disk Size | 4GB |
| Warranty | 2-year limited warranty |
| Dimensions (H x W x L) | 2.75" (69.5 mm) x 5.6" (142 mm) x 10.2" (255 mm) |
| Weight | 3.25 lbs (1.5 kg) |
