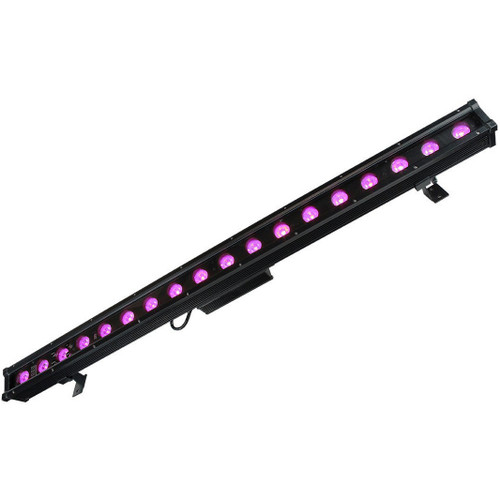

Blizzard Lighting Motif Vignette IP65 Linear Magic
Brilliant, Rich Mixed Colors
The Motif™ Vignette is RGB+Warm White, as opposed to a typical cool white, which increases CRI and emulates the warmth of traditional tungsten filament fixtures. You'll get that and a ton more with the Motif Vignette™, which comes fitted with 18x 10-watt high output Quad-Color RGBW LEDs and a 25 degree beam angle. Perfect for sound sensitive environments, these fixtures feature high efficient, natural convection cooling thanks to their attractive cast aluminum housing with heat sink design and no internal cooling fans.
Control with Ease
The Motif Vignette™ can be controlled via 3/4/5/7 or 10-channels of DMX, or directly with its easily accessible, easy-to-use LED control panel found right on the face of its water-tight tempered glass lens. It also comes with an IR remote control (IR-1) that is simple to use and offers the exact same functionality the LED control panel.
| Operating Voltage | 100-264VAC, 50-60 Hertz |
|---|---|
| Power Consumption | 83W, .98A, PF: .68 |
| LED | 18x 10-watt LEDs, 100,000 hours |
| Beam Angle | 25 degrees |
| Max. Operating Temperature | 104 degrees F (40 degrees C) ambient |
| Protocol | USITT DMX-512 |
| DMX Channels | 3/4/5/7 and 10-channels |
| Input/Output | 3-pin XLR Male/Female |
| Other Operating Modes | DMX512, Master/Slave, Auto, Standalone |
| Warranty | 2-year limited warranty, does not cover malfunction caused by damage to LEDs |
| Dimensions (H x W x D) | 4" (100.1 mm) x 39.8" (1001 mm) x 2.7" (68.8 mm) |
| Weight | 9 lbs (4.1 kg) |
