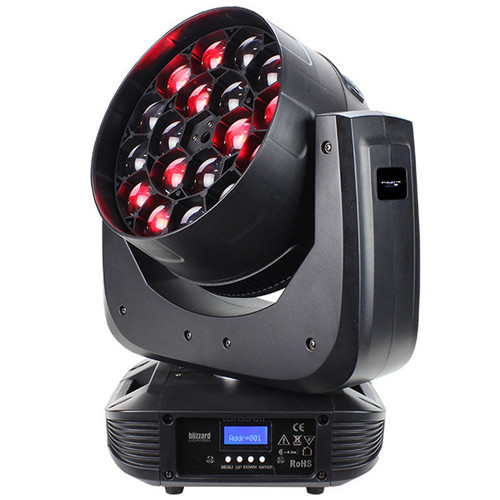

Blizzard Lighting Stiletto Z18 RGBW 4-in-1 LED Moving Head (Discontinued)

Part #:
STILETT 18
Model #:
STILETTO Z18
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Blizzard Lighting Stiletto Z18 is a beam/wash fixture equipped with 18 multi-chip 4-in-1 RGBW 15W LEDs, a motorized lens plate to effortlessly zoom from a knife-edged 6.5° to a 60° beam angle, controllable 6-pixel segments, and smooth 0-100% 32-bit dimming that is flicker free and has multiple color temperature presets.

Description

Like its namesake, feared and respected for its deadly accuracy and grace. The Blizzard Lighting Stiletto Z18 is a versatile beam/wash fixture equipped with 18 multi-chip 4-in-1 RGBW 15W LEDs, Stiletto™ Z18’s motorized lens plate effortlessly zooms from a knife-edged 6.5° to a 60° beam angle.

And, while its zoom makes it an exceptional beam shaper, Stiletto™ Z18’s controllable 6-pixel segments make it great for “eye candy” applications as well, both when viewed directly and in aerial effects! Stiletto™ Z18 also features smooth 0-100% 32-bit dimming that is flicker free and has multiple color temperature presets, making it excellent for broadcast and video work.

Stiletto™ Z18's 2 user-selectable DMX modes (20/40-channels) allow ease and flexibility in programming, as does its easy to use LCD 4-button control panel. Power connections are via industry standard powerCON® compatible jacks, and DMX 3-pin and 5-pin In/Out jacks + dual quarter-turn "Omega" quick connect type clamp brackets round out the pro feature set.

Finally, all of Stiletto™ Z18's built-in white color temperatures, color presets, auto programs, and individual segment RGBW intensity settings are available in DMX mode to allow tons of flexibility and ease of programming... even on the fly!

Features

  • 18 Multi-chip 4-in-1 RGBW 15W LEDs
  • 6-Segment RGBW color mixing with stunning effects
  • 6.5°-60° Degree zoomable beam angle
  • Individually controllable LED segments
  • 8/16-Bit pan and tilt (360°/540° pan, 270° tilt)
  • Four user selectable dimming curve modes via DMX
  • Smooth 0-100% dimming, flicker free
  • Built-in automated programs via master/slave
  • Built-in sound activated programs via master/slave
  • PowerCon™ compatible AC power In/Out connectors
  • USITT DMX-512 (20/40-channels)
  • 3/5-Pin DMX In/Out
  • 4-Button menu with LCD display

Specifications

Operating Voltage AC 100-240VAC, 50-60 Hertz
Power Consumption 305W, 2.55A
Power Factor .99
LED 18 multi-chip 4-in-1 RGBW 15W LEDs
Beam Angle 6.5°-60° zoomable beam angle
Luminous Intensity 28,091 Lux @ 2m (narrow) 6,705 Lux @ 5m (narrow) 1,967 Lux @ 2m (wide)
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Protocol USITT DMX-512
DMX Channels 20/40 Channels
Input 3/5-pin XLR Male
Output 3/5-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Auto, Sound Active
Warranty 2-year limited warranty, does not cover malfunction caused by damage to LEDs
Dimensions (H x W x D) 16.5" (419 mm) x 13.5" (343 mm) x 9.5" (241 mm)
Weight 22 lbs (10 kg)

DOCUMENTS

In The Box

  • (1) Stiletto™ Z18 Moving Head Fixture
  • (1) Mounting Bracket
  • (1) Power Cord
  • (1) User Manual
