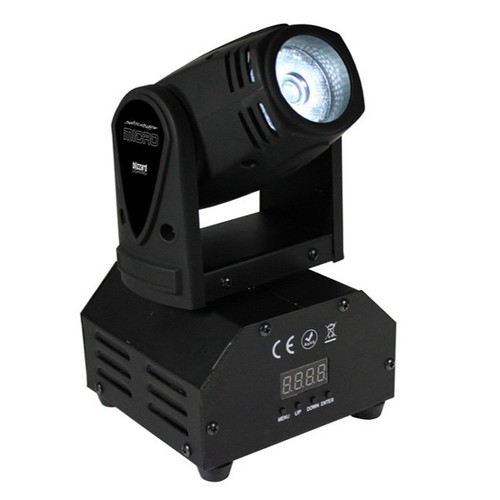

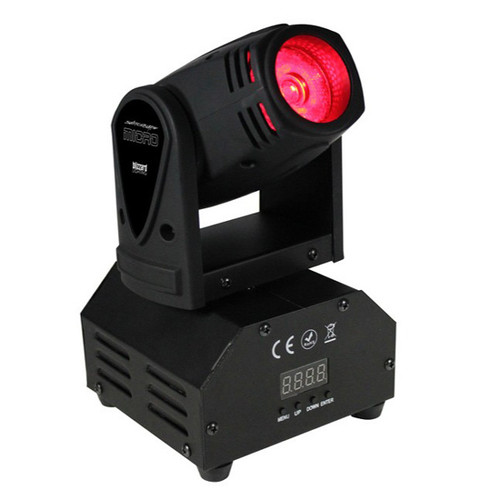

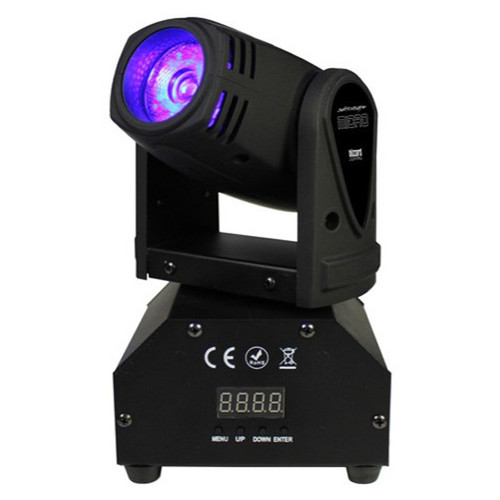

Blizzard Lighting SwitchBlade Micro LED Moving Head Beam

Home /
Blizzard Lighting SwitchBlade Micro LED Moving Head Beam (Discontinued)

Description

Details

With its 1 15W Quad-color RGBW 4-in-1 CREE LED, this little gem will blow anything in its class away on show and tell day! Amazing brightness from a tiny little fixture is what this incredible little prodigy is all about! If you're looking for a moving head beam effect that is ultra-light and ultra-bright, look no further! The SwitchBlade™ Micro is all you need!

With its blazing fast 16-bit 540°/270° pan and tilt, the SwitchBlade™ Micro is equipped to blow away the competition! This fixture does everything you would want a mini moving head beam to do, giving you an amazing display of light to wow your audiences in compact form! Add a pair...or more...for even bigger effects!

The SwitchBlade ™ Micro has an easy to use, LED 4-button control panel and DMX operation via 11 or 13-channels as well as master/slave capability. Its Built-In/Sound Active programs are more than equipped to handle a great light show even if you are not using DMX! And with its sharp 8° beam angle, outstanding quad-color beam effects and incredibly fast movement, the SwitchBlade™ Micro will be your go-to mini fixture, every time!

Industry standard IEC compatible power-In connection, DMX In/Out jacks, and secure clamp bracket all come equipped with this precisely engineered, extraordinary moving head spot fixture!

The SwitchBlade™ Micro is a unique, ultra mini, moving head fixture that you won't want to pass up for your small or big lighting rig!

Features

Features

Mini moving head fitted with 1x CREE® 15w R/G/B/W 4-in-1 LED
Blazing fast 540° pan and 270° tilt
User selectable 11 or 13 DMX channels
Full RGBW color in standalone & DMX mode
Sharp 8 degree beam angle
Outstanding quad beam effects
Built-in sound active programs
Built-in automated programs via master/slave
Built-in sound activated programs via master/slave
3-Pin male input and 3-pin female output

Specification

Operating Voltage	AC 100-240VAC, 47-63 Hertz
Power Consumption	35W
LED	1 15-watt R/G/B/W CREE® LED
Beam Angle	8 degree
Luminous Intensity	1m: Red-985 Green-961 Blue-1,457 White-1,872 All-6,710 2m: Red-3,760 Green-3,397 Blue-5,690 White-6,780 All-16,890
Max. Operating Temperature	104 degrees F (40 degrees C) ambient
Protocol	USITT DMX-512
DMX Channels	11 or 13 Channels
Input	3-pin XLR Male
Output	3-pin XLR Female
Other Operating Modes	Standalone, Master/Slave, Auto, Sound Active
Warranty	2-year limited warranty, does not cover malfunction caused by damage to LED’s
Dimensions (H x W x L)	9.4" (237 mm) x 5" (124 mm) x 4.9" (123 mm)
Weight	4.41 lbs (2.0 kg)
