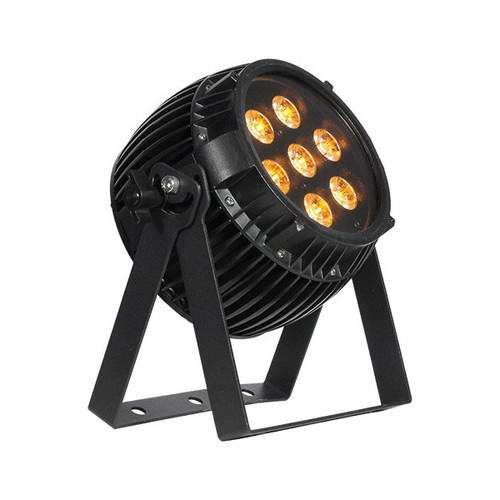

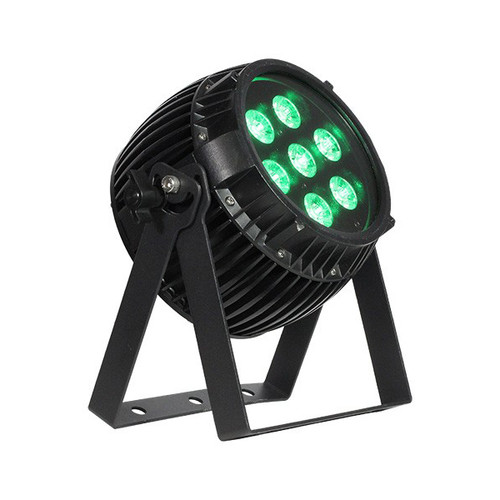

Blizzard Lighting TOURnado Sky W-DMX IP65 Lithium-Ion Battery Powered + Built-In 2.4 GHz Wireless Light Fixture

Part #:
123740
Model #:
TOURnado Sky W-DMX
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Get your show on the road with TOURnado™ Sky W-DMX® IP65 LED fixtures! These fixtures maintain all of the exact same incredible features as our TOURnado™ EXA fixtures, including 7x 15w RGBAW+UV 6-in-1 LEDs, but added is the most stable and efficient type of wireless DMX technology available today... W-DMX®.

Description

Blizzard TOURnado Sky W-DMX Lithium-Ion Battery Powered and Built-In 2.4 GHz Wireless Light Fixture

Get your show on the road with TOURnado™ Sky W-DMX® IP65 LED fixtures! These fixtures maintain all of the exact same incredible features as our TOURnado™ EXA fixtures, including 7x 15w RGBAW+UV 6-in-1 LEDs, but added is the most stable and efficient type of wireless DMX technology available today... W-DMX®. If you haven’t heard yet, W-DMX™ was created (and owned) by Wireless Solution Sweden AB, and it is the un-official standard for the most dependable wireless DMX transmission available. TOURnado™ W-DMX® fixtures also house a powerful Intelion™ Lithium-Ion internal battery system, which all together allow you to go 100% power cord and cable free!

TOURnado™ W-DMX® fixtures offer 6/7/8 and 11-channel control modes which means it works great with just about any type of controller, especially our very own Kontrol 6™ DMX controller with 6 clearly labeled Red/Green/Blue/Amber and UV sliders! Plus, the built-in 4 character/4 button LED control panel allows total control over the fixture, including master/slave, auto mode, fade, strobe settings, manual color adjustment, sound active mode, and power output mode settings.

Its Lithium-Ion internal battery system allows the user to select one of 3 power output mode settings. Depending on the needs of any given application, you can select either High Power, Medium Power, or Battery Saver Mode, which allows the fixture to run for a longer time at lower output. With average usage of color fades in High Output Mode, you can expect the battery life to last up to 10+ hours, color jumping 5+ hrs, or full on for 3+ hrs! Need more time? Just switch over to one of the other battery power saver modes! The normal battery recharge time is 4 hrs, and can be done even while in use!

The fixture also features a unique "push and lock" waterproof AC power input connector (a slightly different style than previous TOURnados), and comes with a set of removable 3-pin DMX in/out cables. Rubber plugs are attached to the fixture at each plug connection point to provide a waterproof seal when a cable is not inserted. And a main power push button switch is found on the rear of the fixture, along with an LED illuminated battery power gauge which illuminates red during charge, and green when fully charged.

Then, for the ultimate in ease of setup, when paired up with any W-DMX™ transmitter or transceiver unit such as our own LightCaster™ W-DMX®™ transceiver, the built-in W-DMX™ receiver will provide wireless communication for over 500 meters (line-of-sight), while leaving any worries behind concerning loss of signal due to its built-in FHSS technology (Frequency Hopping Spread Spectrum). FHSS are frequency hopping techniques, in which the transmitter jumps from one sub-channel to another at a very rapid pace. This technique was first used by the U.S. military precisely because they are difficult to disrupt, and unless you knew the frequency hopping sequence, practically impossible to intercept. An unlimited number of receiving units can be controlled by each transceiver, each one able to control 512 channels of DMX (1 universe).

And of course, it is also backed by Blizzard's 2-year warranty!

Features

  • Color mixing via 7x 15W RGBAW+UV 6-in-1 LEDs
  • LED control panel with 4 touch sensitive electronic buttons
  • 25° beam angle
  • Variable electronic dimming and strobe
  • Built-in color and chase macros via DMX
  • Built-in automated programs via master/slave
  • RGBAW+UV color mixing ability in standalone mode
  • 6/7/8/11-channel extended DMX profiles w/ 32-bit dimming
  • Rugged and well-built (It hits the gym regularly)
  • Convection cooled cast aluminum housing
  • Dual mounting brackets for positioning flexibility
  • Flicker-free constant-current 400Hz LED driver
  • IP rated locking power and 3-pin DMX connections

Specifications

Power
Operating Voltage 100-264VAC, 47-63 Hertz
Power Consumption 40W, .54A, PF: .58
Light Source
LED 7x 15W 6-in-1 RGBAW+UV LEDs
Optical
Beam Angle 25 degree beam, 30 degree field
Luminous Intensity 6,590 Lux@ 1m | 1,815 Lux @ 2m
Thermal
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 6/7/8/11 (User Selectable)
Input 3-pin XLR Male
Output 3-pin XLR Female
Operating Modes Standalone, Master/Slave, Color Preset
Wireless Receiver
Transmission Band 2.4Ghz ISM (2.4-2.525Ghz)
Channels 512
Receiver Sensitivity -94dBm
Dimensions (H x W x D) 11.2" (284 mm) x 10.7" (272 mm) x 5.7" (144 mm)
Weight 11.5 lbs (5.2 kg)

DOCUMENTS

In The Box

  • (1) TOURnado Sky W-DMX™ Professional LED PAR Fixture
  • (1) Power Cord
  • User Manual
