Bogen Communications HFSF1 Small-Footprint High-Fidelity In-Ceiling Speaker

Part #:
HFSF1
Model #:
HFSF1
MSRP: $186.65
$93.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

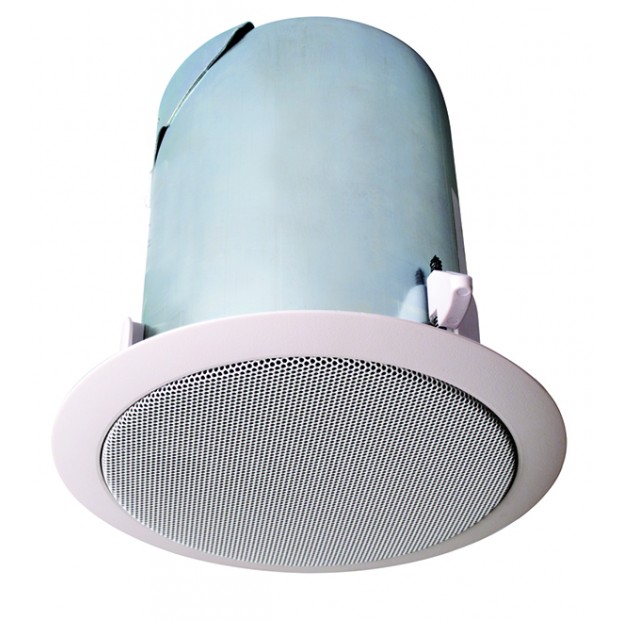

The Bogen HFSF1 High-Fidelity, Small-Footprint Ceiling Loudspeaker delivers superior sound in a very compact enclosure. The speaker measures 7-1/4" diameter and mounts easily in all types of ceilings – including existing hard-surfaced types and suspended type.

Description

The Bogen HFSF1 High-Fidelity, Small-Footprint Ceiling Loudspeaker delivers superior sound in a very compact enclosure. The speaker measures 7-1/4" diameter and mounts easily in all types of ceilings – including existing hard-surfaced types and suspended type.

Several levels of power output can be controlled directly from the front baffle via a rotary tap selector switch under the grille. The low-distortion, coaxial-design speaker, coupled with a computer-matched venting system, delivers superb fidelity for music as well as high intelligibility for voice reinforcement. Coupled with the Bogen CSUB Ceiling Subwoofer, it provides the perfect solution for environments that require the highest-quality sound with minimal visual impact.

Features

  • Superior sound in a very compact enclosure
  • Wide-dispersion coaxial driver for broad, even coverage; superb off-axis response
  • Small footprint, visually appealing
  • Only 7-1/4" face diameter
  • Installs in wide range of ceiling types
  • For 70V and low-impedance systems
  • Selectable power taps via front-mounted control (under grille); 16, 8, 4, 2, 1W at 70V
  • 16-ohm Input setting for low-impedance systems (selectable via front-mounted control, under grille)
  • Quick wiring with removable plug-in connector
  • Plug-in connector provides loop-through terminals for next speaker
  • Terminal cover provides knockout for flexible conduit connection
  • Compounded rubber surround for lasting performance year after year
  • Integral mounting clamps tighten quickly and firmly
  • Attachment point for seismic safety cable
  • Off-white textured finish easily painted to match room decor

Specifications

Frequency Response 78 Hz to 20 kHz
LF Driver 4" Polypropylene cone with rubber surround
HF Driver 3/4" Polycarbonate dome
Sensitivity (1W/1m) 86 dBspl
Dispersion 150 degrees
Impedance Ratings Low (16 ohms), High (70V)
Power Input (Max.) 50W at 16 ohms, 16W at 70V
Power Settings 70V: 16, 8, 4, 2, 1 W
Baffle/Bezel Material Fire-rated (94V0) ABS
Back Enclosure Heavy-gauge steel
Grille Material Powder-coated, perforated metal
Terminations 4-Terminal Snap-lock input connector
Accessories Included Snap-lock input connector (1) Steel terminal cover (1), with (2) mounting screws
Dimensions (Dia x L) 7.25" (184.15 mm) × 7.5" (190.5 mm)
Weight 4.5 lb (2.04 kg)
