The Bose AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose DSP via a shielded CAT 5 cable. Each card includes a THRU connection for daisy-chaining multiple AmpLink amplifiers.

Description

Bose PowerMatch AmpLink 24-Channel Input Card

The Bose® AmpLink input card for PowerMatch® configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose DSP via a shielded CAT 5 cable. Each card includes a THRU connection for daisy-chaining multiple AmpLink amplifiers.

Applications

The PowerMatch AmpLink card enables PowerMatch amplifiers to receive 24-channels of digital audio sourced from a ControlSpace® processor or through an upstream amplifier’s AmpLink thru connection.

These cards allow for simplified audio distribution when devices are co-located in the same equipment rack, or in the same room. Designed for a wide range of applications, including:

  • Performing arts venues
  • Hotels and conferencing facilities
  • Religious and worship facilities
  • Health clubs
  • Retail and shopping centers
  • Sports venues
  • Schools and universities

Features
  • AmpLink 24-channel digital audio transport
  • Quick-connect RJ-45 connections on shielded CAT 5 cable
  • Thru connection to daisy-chain up to 10 m between products
  • 3-position bank select switch chooses 8 consecutive AmpLink channels the amplifier will amplify
  • Each daisy-chained amplifier can choose either the same, or a different, bank of channels
  • AmpLink can daisy-chain up to 8 amplifiers
  • Any combination of AmpLink amplifiers can be daisy-chained

Specifications
Channels Twenty-four (24), Each PowerMatch amplifer must select the bank of 8 consecutive channels the amplifier will amplify from the 3-position slide switch. PM4250/N and PM4500/N must then choose the upper or lower 4 channels of that bank in CSD software
Sample Rate / Bit Depth 48 kHz / 24 bit
Thru Audio Latency 24 ns
Maximum Cable Length 10 meters (33’) between products, shielded cable required
Connectors Input, Thru, using RJ-45 jacks on CAT 5 cables
Software Application ControlSpace® Designer™ Software v5.0 or later
Compatible With PowerMatch PM8500 / PM8500N power amplifier
PowerMatch PM8250 / PM8250N power amplifier
PowerMatch PM4500 / PM4500N power amplifier
PowerMatch PM4250 / PM4250N power amplifier
CAT 5 Cable Requirements Shielded cable required, TIA/EIA 568B wiring standard

DOCUMENTS

In The Box
  • (1) Expansion Card
  • Installation Guide

Related Products

Sold Out

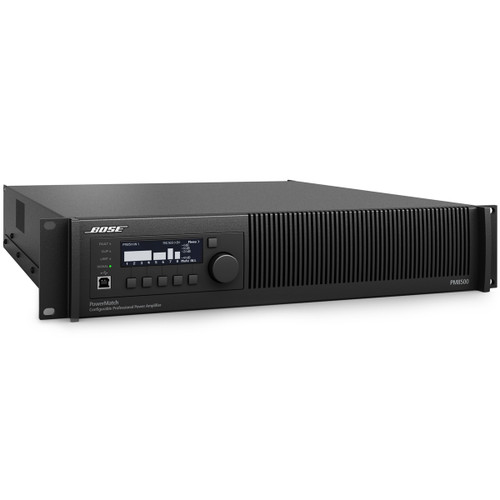

Bose Professional PowerMatch PM8500N 8-Channel Configurable Power Amplifier with Ethernet Network Control (Discontinued) Bose Professional PowerMatch PM8500N 8-Channel Configurable Power Amplifier with Ethernet Network Control (Discontinued)

Bose Professional PowerMatch PM8500N 8-Channel Configurable Power Amplifier with Ethernet Network Control (Discontinued)

Bose PowerMatch PM8500N 8-Channel Power Amplifier 8 x 500 Watts at 4 Ohms The Bose® PowerMatch® PM8500N configurable professional power amplifier provides concert-quality sound with a high level of...
MSRP: $5,410.95
$5,410.00

Usually arrives in 5-9 business days.

MSRP: $5,410.95
$5,410.00
Sold Out

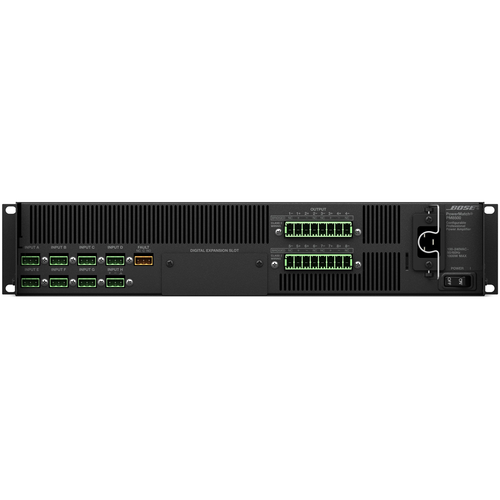

Bose Professional PowerMatch PM8500 8-Channel Power Amplifier 8 x 500 Watts at 4 Ohms with USB Port Dual Voltage Auto-Standby/Auto-Wake (Discontinued) Bose Professional PowerMatch PM8500 8-Channel Power Amplifier 8 x 500 Watts at 4 Ohms with USB Port Dual Voltage Auto-Standby/Auto-Wake (Discontinued)
