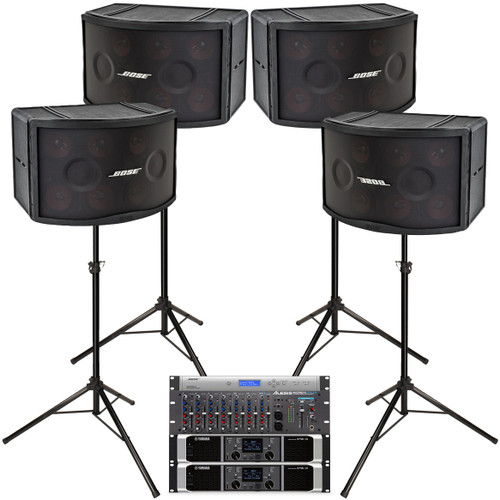

This Bose® Band Sound System features the Bose® Panaray® 802 Series III loudspeaker, a full-range loudspeaker designed for permanent installations and portable sound reinforcement, for both indoor and outdoor applications.

The Bose® Panaray® 802® installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity.  The Articulated Array® design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can eliminate the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

The Bose® ControlSpace® SP-24 sound processor makes optimizing 2x4 installed and portable sound systems easy. Use the purposefully simple front panel interface for basic operations, or the intuitive SP-24 Editor software for full access to all signal processing settings.

Yamaha's audio engineers have specifically designed the new P-S Series power amplifiers to be perfect companions to the popular Club Series loudspeakers. To achieve this, they made sure that the amplifiers are capable of delivering power that matches the power handling capabilities of the Club Series Speakers, and equipped them with YS Processing (Yamaha Speaker Processing) to deliver a signal that will result in optimum system performance.

Further matching precision is afforded by Yamaha's proprietary YS Processing circuit. Each P-S series amplifier is equipped with this specially designed circuit so that it delivers output tailored to the specific response of the Club Series speakers. All models feature both XLR and 1/4-inch TRS inputs, and Neutrik Speakon, phone plug, and 5-way binding post outputs. Other features include Yamaha's exclusive EEEngine technology for high performance with exceptional efficiency, sweepable high and low pass filters for matching output to any loudspeakers, a compact and durable 2U chassis, and variable speed cooling fans.

Bose® Panaray® 802 Series III Loudspeaker

• Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity
• 8x Bose 4.5-inch full-range drivers for legendary reliability
• 120° x 100° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required
• 52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels
• 123 dB Peak SPL for sound-reinforcement and foreground music
• Rugged, lightweight enclosure with threaded inserts for easy installations
• Weather-Rated Design for indoor or outdoor installations
• Requires Active Equalization



Bose® ControlSpace® SP-24 Sound Processor

• Real-time control, and the ability to program and store custom scenes with the easy-to-use SP-24 Editor software
• SP-24 Editor software provides complete access to all signal processing functions including custom channel routing, input and output 9-band dual equalization, band pass filters, delays, peak limiter, gain and signal polarity for full system control
• Simplified front panel LCD menus and controls are purposely designed to make it easier to select preprogrammed scenes, gain and delay parameters, or quickly access Bose® loudspeaker presets
• USB port enables plug-and-play PC access for system configuration, programming, signal level monitoring and firmware updates using the SP-24 Editor software
• Extensive Bose professional loudspeaker library enables quick access to factory-created equalization curves while the SP-24 Editor software provides intuitive graphical tools for optimizing any passive or powered loudspeaker
• XLR inputs (2) and outputs (4) for balanced connectivity to professional audio gear
• Signal and clip LED indicators show the signal status of the input channels
• Front panel lockout feature prevents unauthorized use



Yamaha P2500S PowerAmplifier

• Big Power with Outstanding Efficiency
• The Perfect Match for Your Club Speakers
• Light Weight for Easy Transport and Setup
• Versatile Connectivity
• EEEngine
• YS Processing

• (4) Bose 802 Panaray Series III Loudspeaker
• (1) Bose® ControlSpace® SP-24 Sound Processor
• (2) Yamaha P2500S Power Amplifier

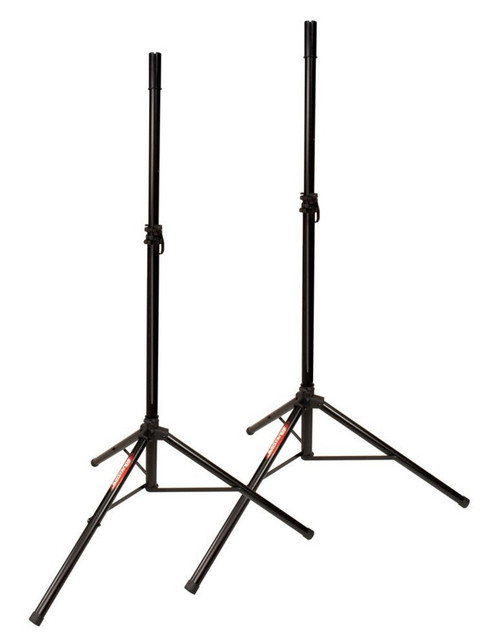

• (4) Ultimate Support JS-TS50 Speaker Stand

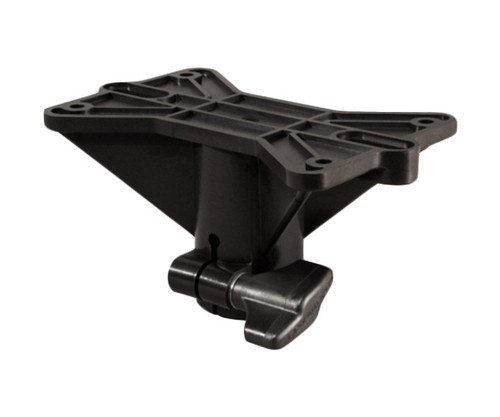

• (4) Ultimate Support BMB-200K Mounting Bracket
• (4) Speaker Cable Speakon to Speakon 25'
• (4) XLR 3’ Microphone Cable
• (3) Microphone Cables
• Optional Accessories:
• (3) FREE Pure Resonance Audio UC1S Microphones
