Bose Professional ControlSpace EX-UH Dante Under-Table Endpoint with USB (Discontinued)

Bose Professional ControlSpace EX-UH Dante Under-Table Endpoint with USB (Discontinued)

Name: Bose Professional ControlSpace EX-UH Dante Under-Table Endpoint with USB (Discontinued)
Brand: Bose Professional
SKU: BOSE-771784-0110
Price: 834 USD
Availability: OutOfStock

Write a Review

Part #:

771784-0110

Model #:

EX-UH

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Optimized for use with the EX-1280C, the Bose EX-UH Dante endpoint, is a convenient, cost effective solution for connecting remote BYOD devices or telephone handsets over a single cat-5/6 cable.

Description

Optimized for use with the EX-1280C, the EX-UH Dante endpoint, is a convenient, cost-effective solution for connecting remote BYOD devices or telephone handsets over a single cat-5/6 cable. Whether used under a conference table to connect a laptop running a soft-codec such as Skype for business, or to connect a customer’s handset for bridging calls, or both, the EX-UH’s high-quality USB and headset to Dante audio conversion simplifies wiring and adding extra codecs to a conferencing system. Autodiscovery, Drag and drop programming, and auto-routing in ControlSpace designer make connecting the EX-8ML easy.

Designed for a wide range of applications, including:

• Boardrooms
• Medium/large conference rooms
• Courtrooms
• Distance learning
• Auditoriums
• Multi-purpose spaces

Features

One-cable-from-the table connectivity supports PoE and Dante audio networking to maximize ease of integration
Dante™ audio networking for connection to other Dante-enabled products over Ethernet-based networks
USB 2.0 connector supports PC connections to soft codecs such as Skype for Business™

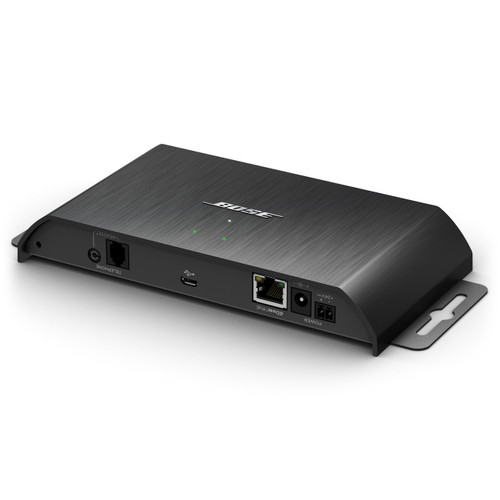

Headset connectors for direct connection to office and mobile phones through RJ-9 and 3.5 mm TRRS ports
Daisy-chainable power output allows multiple EX endpoints to be powered through one external power supply
Rotatable mounting tabs allow for multiple mounting options

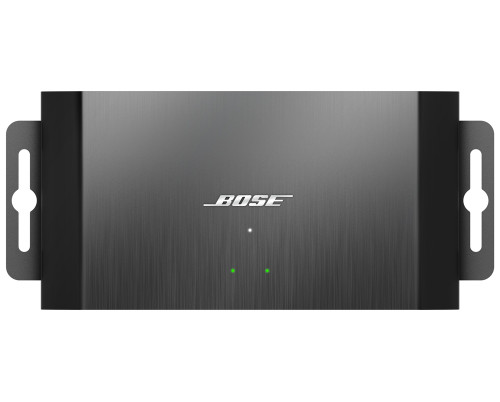

Low-profile aluminum enclosure with integrated LED indicators for unobtrusive under-table mounting
Simplified software configuration via ControlSpace Designer software. Supports autodiscovery, auto-routing, and logic presets for microphone LEDs and pushbuttons
Optional magnetic mounting plate for single-handed under-table mounting

Specifications

Communication Ports
USB Audio	USB v2.0, Micro-B type, class-compliant (no drivers required), 2-ch in/2-ch output
Telephone Headset	RJ-9 (1 in x 1 out) and 3.5 mm TRRS (1 in, 2 out)
Audio Over IP
Dante™ Audio Networking	64 x 64, primary/secondary, gigabit
Power
PoE Class	Class 0 802.3af PoE PD compliant
External Connectors	(1) 3.81 mm Euroblock connector, 2-pin (1) 5.5 mm barrel with positive center
External Power Range	24 VDC, daisy-chainable
Power Consumption	5 Watts
Software Application	ControlSpace Designer software version 5.0 or later
General
LED Status Indicators	Power, two (2) tri-color signal status for USB and headset
Frequency Response	20 Hz — 20 kHz, ± 1 dB
Digital Conversion	24 kHz / 24-bit

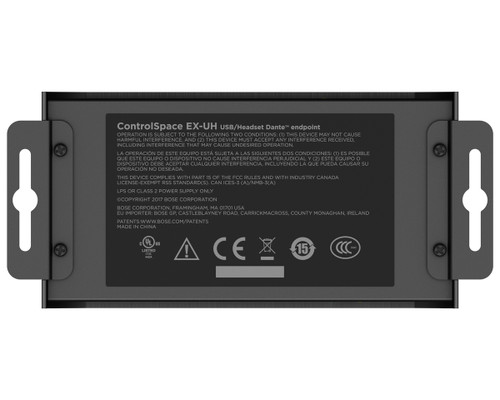

Certifications	FCC Part 15 Class A, CE (EN 55022 Class A)
Operating Temperature	32° F — 104° F (0° C — 40° C)
Dimensions (H x W x D)	1.1" (28 mm) x 8.4" (214 mm) x 3.8" (96 mm)
