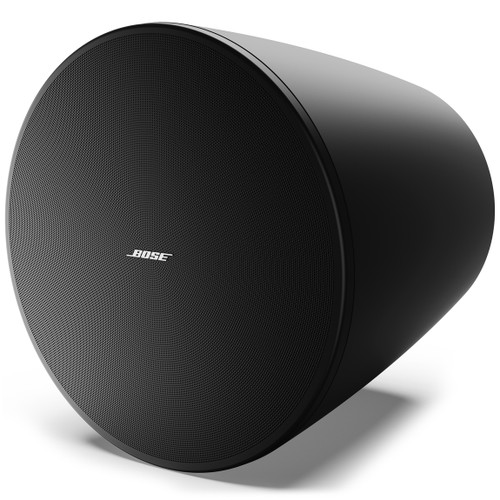

Bose DesignMax DM10P-SUB Pendant-Mount Hanging Subwoofer
Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt DM10P-SUB is a 10-inch pendant subwoofer with a 40 Hz – 125 Hz frequency range and features a recessed single-point suspension system for a sleek, attractive appearance. All models are available in black or white.
- Features
Features
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10SSUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
- Deliver rich bass performance with custom Bose drivers; for optimal performance, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
- Specification
Frequency Response (-3 dB) 46 – 108 Hz Frequency Range (-10 dB) 40 – 125 Hz Nominal Coverage Angle Omnidirectional below 200 Hz Power Handling, Long-Term Continuous Bose extended-life cycle test: 250W
AES transducer test: 300WPower Handling, Peak Bose extended-life cycle test: 1000W
AES transducer test: 1200WSensitivity (SPL/1W @ 1 m) Bose extended-life cycle test: 85dB
AES transducer test: 85dBCalculated Maximum SPL @ 1 m Bose extended-life cycle test: 109dB
AES transducer test: 110dBCalculated Maximum SPL @ 1 m, Peak Bose extended-life cycle test: 115dB
AES transducer test: 116dBLoudspeaker EQ Not required, Bose EQ voicing, and SmartBass processing available Recommended Crossover 80 – 200 Hz (requires active crossover in DSP) Transformer Taps 70V: 20, 40, 80, 150W, bypass
100V: 40, 80, 150W, bypassDrivers Low Frequency: 1 x 10-inch woofer (133 mm) Nominal Impedance 8Ω (transformer bypass) Enclosure Material Engineered-plastics Grille Perforated steel, powder-coated finish Logo Rotatable, removable Color Black: Bose Black, similar to RAL 9005, paintable Environmental Indoor only Safety Agency UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F) Connectors Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire Suspension/Mounting Each DM10P-SUB has one (1) suspension attachment point and one (1) safety cable attachment point. Included is one (1) 4.5 meter (15 foot) Gripple adjustable suspension cable Optional Accessories Threaded Rod Adapter, Conduit Adapter Dimensions (Enclosure Dia x D) 15.7" (400 mm) x 15.1" (383 mm) Net Weight 19.7 lbs (8.9 kg) Shipping Weight 27.89 lbs (12.65 kg) - Documents
