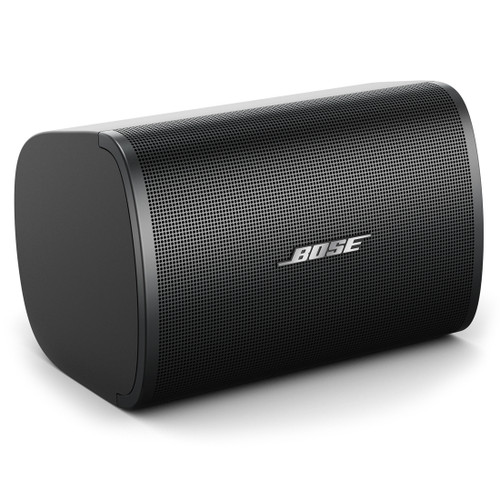

Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair

Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair

Name: Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair
Brand: Bose Professional
SKU: BOSE-829712-0120
Price: 369 USD
Availability: InStock

Write a Review

Part #:

829712-0120

Model #:

DM3SE

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Bose DesignMax DM3SE 30W loudspeaker features a two-way 3.25" woofer and ¾-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 75 Hz - 20 kHz.

Description

Bose DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers

With coaxial two-way drivers, the 30-watt DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

Features

Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

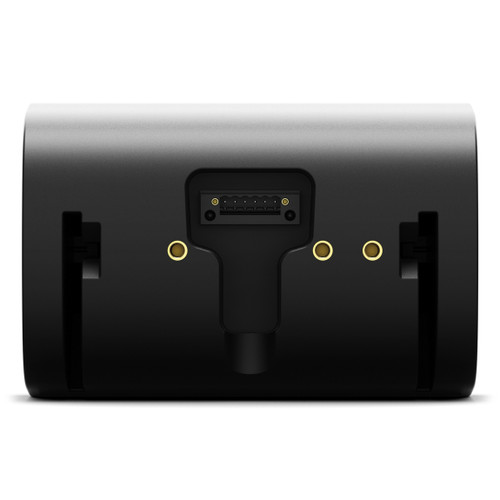

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM3SE outside - IP55 rating with standard aluminum grille for outdoor use

Specifications

Frequency Range (-10 dB)	75 - 20,000 Hz
Nominal Coverage (H x V)	135° conical
Power Handling, Long-Term Continuous	Bose Extended-Lifecycle Test: 25W AES Component Test: 30W
Calculated Maximum SPL @ 1 m	Bose Extended-Lifecycle Test: 101 dB AES Component Test: 100 dB
Transformer Taps	70V: 3, 6, 12, 25W, bypass 100V: 6, 12, 25W, bypass
Nominal Impedance	8 Ohms (transformer bypass)
Dimensions (H x W x D)	9.1" (232 mm) x 6.1" (154 mm) x 6.1" (154 mm)
Dimensions w/Bracket (H x W x D)	9.1" (232 mm) x 6.1" (154 mm) x 6.5" (166 mm)
