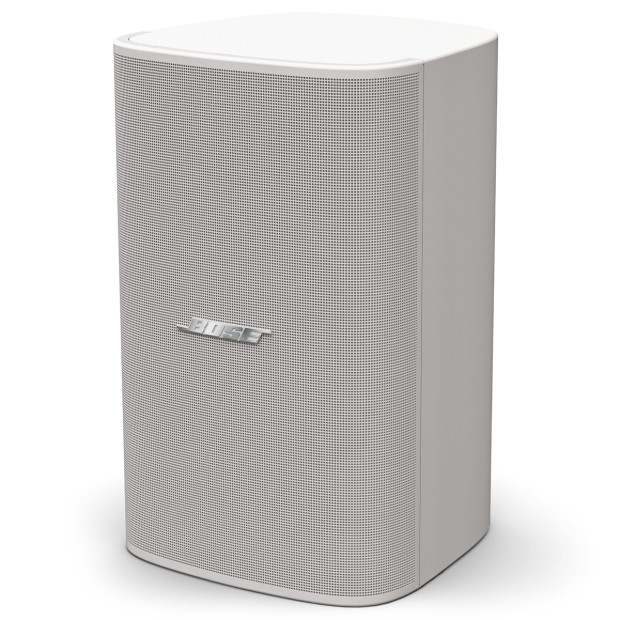

Bose Professional DesignMax DM8SE 8" Outdoor Surface Mount Loudspeaker with 1" Compression Driver 150W - White
Bose Professional DesignMax DM8SE 8" Outdoor Surface Mount Loudspeaker with 1" Compression Driver 150W - White

By Bose Professional

Bose Professional DesignMax DM8SE 8" Outdoor Surface Mount Loudspeaker with 1" Compression Driver 150W - White

Write a Review
Part #:
892116-0200
Model #:
DM8SE
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
With coaxial two-way drivers, the 150-watt Bose Professional DesignMax DM8SE loudspeaker delivers powerful SPL suitable for foreground music — along with premium aesthetics that complement any commercial sound installation.

Description

Bose DesignMax DM8SE 8" Outdoor Surface Mount Loudspeaker

With coaxial two-way drivers, the DesignMax DM8SE loudspeaker delivers powerful SPL, making it ideal for live sound and foreground music applications. It also features premium aesthetics that enhance any commercial sound installation. Upgraded for outdoor use, it includes a rust-resistant aluminum grille, a weather-sealed cover for the rear input wiring terminal, and a weather-resistant mounting bracket.

The DM8SE has a 2-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, providing a frequency range of 52 Hz – 20 kHz. The QuickHold mounting system locks onto the included U-bracket for easy, secure, surface-mount installation. An optional pan-and-tilt bracket and pole mount bracket are available separately to support alternative mounting requirements.

Features
  • Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Deliver high SPL for clear foreground music
  • Install DM8SE outside — IP55 rating rating with standard aluminum grille for outdoor use

Specifications
Frequency Response (-3 dB) 60 - 20,000 Hz
Frequency Range (-10 dB) 52 - 20,000 Hz
Nominal Coverage Angle (1-4 kHz) 130° conical
Nominal Coverage Angle (1-10 kHz) 115° conical
Power Handling, Long-term Continuous 150W
Transformer Taps 70V: 2.5W, 5W, 10W, 20W, 40W, 80W, bypass
100V: 5W, 10W, 20W, 40W, 80W, bypass
Low Frequency 8-in (203 mm) woofer, weather-treated
High Frequency 1-in (25 mm) compression driver, coaxial center-firing, weather-treated
Nominal Impedance 8Ω (transformer bypass)
Enclosure Material Engineered plastics, highly UV-fade-resistant
Environmental / Ingress Protection Outdoor per IEC 529, IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather-resistant input cover
Safety UL-listed, UL 1480A, NFPA 70-compliant, CE-compliant
Dimensions (H x W x D) 15.6" (395 mm) x 9.8" (249 mm) x 10" (253 mm)
Dimensions with Bracket (H x W x D) 15.6" (395 mm) x 9.8" (249 mm) x 10.7" (270 mm)
Net Weight 22.8 lbs (10.3 kg)

DOCUMENTS

In The Box
  • (1) DesignMax DM8SE 8" Outdoor Speaker
  • (1) U-Bracket
  • (1) Weather-Resistant Input Cover

Related Products

Bose DesignMax DM6SE black Bose Professional DesignMax DM6SE 6.5" Surface Mount Indoor Outdoor Loudspeakers 125W IP55 Rated - Black Pair

Bose Professional DesignMax DM6SE 6.5" Surface Mount Indoor Outdoor Loudspeakers 125W IP55 Rated - Black Pair

Bose DesignMax DM6SE 6.5" 125W Surface Mount Indoor Outdoor Loudspeakers A complete loudspeaker assortment to fulfill any design DesignMax loudspeakers have the flexibility and style to deliver...
MSRP: $949.00
$749.00

Usually arrives in 5-9 business days.

MSRP: $949.00
$749.00
Add to Cart The item has been added

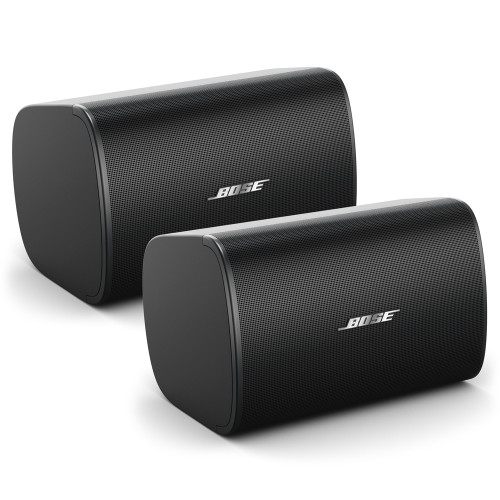

Bose DesignMax DM5SE Bose Professional DesignMax DM5SE 5.25" Surface Mount Indoor Outdoor Loudspeakers 60W IP55 Rated - Black Pair

Bose Professional DesignMax DM5SE 5.25" Surface Mount Indoor Outdoor Loudspeakers 60W IP55 Rated - Black Pair

Bose DesignMax DM5SE 5.25" 60W Surface Mount Indoor Outdoor Loudspeakers A complete loudspeaker assortment to fulfill any design DesignMax loudspeakers have the flexibility and style to deliver...
MSRP: $799.00
$699.00

Usually arrives in 5-9 business days.

MSRP: $799.00
$699.00
Add to Cart The item has been added

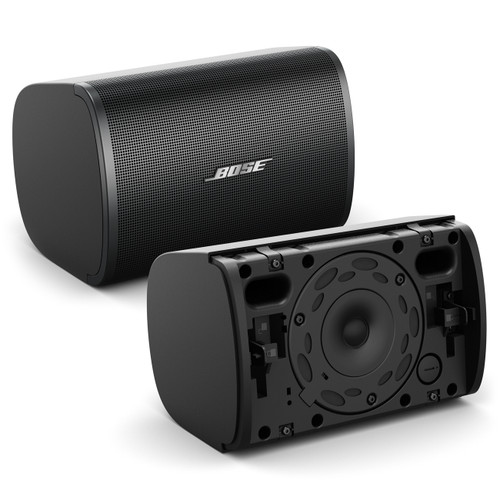

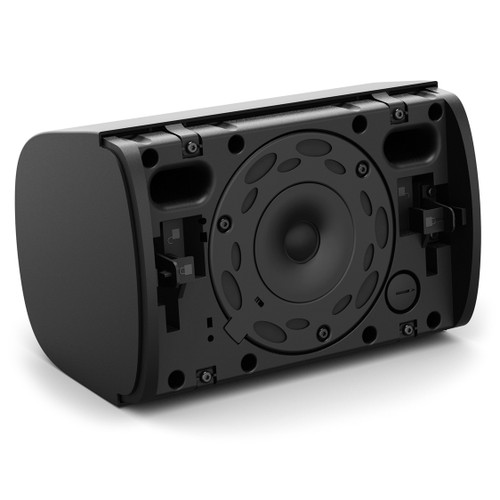

Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair

Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - Black Pair

Bose DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers With coaxial two-way drivers, the 30-watt DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for...
MSRP: $449.00
$369.00

Usually arrives in 5-9 business days.

MSRP: $449.00
$369.00
Add to Cart The item has been added

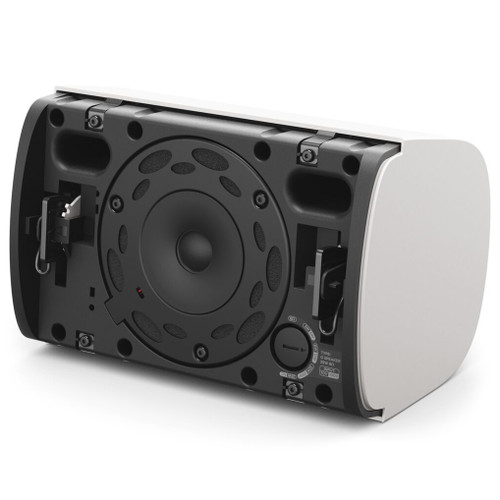

Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - White Pair Bose Professional DesignMax DM3SE 3.25" Surface Mount Indoor Outdoor Loudspeakers 30W IP55 Rated - White Pair
