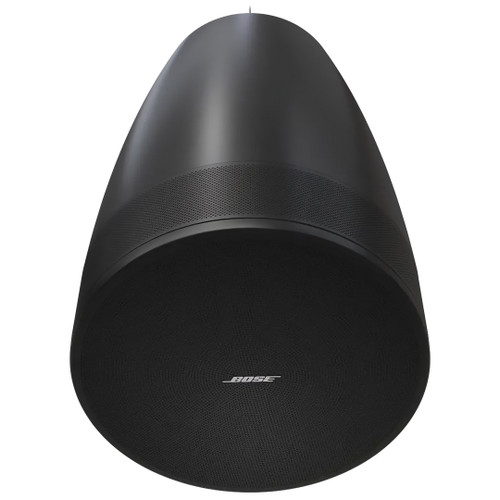

Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black
By Bose Professional

Bose Professional DesignMax Luna DML88P 70/100V All-in-One Pendant Loudspeaker - Black

Write a Review
Part #:
892117-0100
Model #:
DesignMax Luna
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Bose DesignMax Luna utilizes a proprietary Ring Array™ design to deliver stunning extended-range sound from a sleek pendant form - ideal for open ceilings where clarity, coverage, and aesthetics matter.

Description

Bose DesignMax Luna Extended‑Range Pendant Speaker

The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.

The Bose Professional DesignMax Luna was awarded Best of Show at InfoComm 2025 for AV Technology.

Features
  • Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
  • Integrated 8" woofer extends down to 40 Hz - no subs needed
  • Wide-throw 140° coverage reduces speaker count and installation costs
  • Flexible mounting lets you use a single cable - or two-point suspension - for fast installs and perfectly balanced hangs
  • Streamlined design with concealed wiring and premium finish options
  • Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
  • Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter

Specifications
Frequency Response (-3 dB) 50 Hz – 15,000 Hz
Frequency Range (-10 dB) 40 Hz – 20,000 Hz
Nominal Coverage (500 Hz – 5 kHz) 140° conical
Power Handling, Long-term Continuous AES Transducer Test - 140W
Bose Professional Extended-Lifecycle Test - 100W
Power Handling, Peak AES Transducer Test - 560W
Bose Professional Extended-Lifecycle Test - 400W
Sensitivity (SPL / 1 W @ 1 m) AES Transducer Test - 85 dB
Bose Professional Extended-Lifecycle Test - 85 dB
Calculated Maximum SPL @ 1 m, Continuous AES Transducer Test - 107 dB
Bose Professional Extended-Lifecycle Test - 105 dB
Calculated Maximum SPL @ 1 m, Peak AES Transducer Test - 113 dB
Bose Professional Extended-Lifecycle Test - 111 dB
Loudspeaker EQ Not required. Bose Professional EQ voicing and SmartBass available
Transformer Taps 70V: 12W, 25W, 50W, 100W, bypass
100V: 25W, 50W, 100W, bypass
Low Frequency 1 x 8" (203 mm) woofer
High Frequency 8 x 2" (51 mm) drivers in circular array
Nominal Impedance 8Ω (transformer bypass)
Enclosure Material Engineered plastics
Grille Perforated steel, powder-coated finish, paintable
Logo Rotatable, removable
Color Black (RAL 9005)
Environmental Indoors only
Certifications UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant
Connectors 6-pin Euroblock connector with loop-through, mounted on top. Accepts 18 AWG – 14 AWG (0.8 mm2 – 2.1 mm2 ) wire
Suspension / Mounting (1) 3-hole suspension cable attachment point. Attach to (A) 1 main suspension cable & 1 secondary suspension cable with slack for safety or (B) 2 suspension cables supporting load equally with pendant located halfway between 2 suspension beams
Cable Length 15ft
Optional Accessories Threaded rod adapter, conduit adapter
Dimensions (Dia x D) 12.1" (308 mm) x 19.4" (492 mm)
Weight 22 lbs (10 kg)

DOCUMENTS

In The Box
  • (1) DesignMax Luna DML88P Pendant Loudspeaker
  • (1) Connection Panel Cover
  • (1) Adjustable Suspension Cable System
  • (4) Cable Ties
  • Installation Guide
