Inside the Design

This church sound system with two Bose F1 Model 812 loudspeakers and two subwoofers at 1000W each, features adjustable coverage patterns that let you choose the coverage you need so no matter what kind of room you're in, you have the right coverage. This high-quality portable PA speaker system produces clear and natural vocals with midrange clarity even at high volumes, great for House of Worship assemblies, spoken word, music performances, drama productions, and more. It also comes with a digital mixer that can be controlled by your tablet, PC or smartphone, a Bluetooth CD player, a wireless earworn and handheld microphone, three wired microphones, a wired instrument mic, a wireless guitar system, a portable rolling rack, and cables to set up your sound system.

Sound System Features:

• Bose flexible array speakers can be configured into four unique shapes for the best possible coverage pattern
• Powerful high-output 1000W loudspeakers deliver a maximum SPL of 132 dB each
• 16-channel remote controlled digital mixer with Wi-Fi capabilities allows you to use up to 10 contol devices
• Yamaha 1000W 12" powered stage monitors deliver outstanding resolution at any output level
• Wireless microphone systems combine professional-quality with simple setup and legendary audio performance
• UC1S Ultra-Clear™ dynamic vocal microphones deliver ultra clear audio
• CD player with Bluetooth can be controlled with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Completely portable sound system gives you so many options for your House of Worship space

About the System Components

This Pro Acoustics designed sound system includes two Bose F1 Model 812 flexible array 1000W powered portable array loudspeakers with adjustable coverage patterns and two F1 1000W powered subwoofers with detachable stacking brackets. Also included are two Yamaha DBR12 12" powered speaker monitors, a Soundcraft Ui16 16-input remote-controlled digital mixer, an Audio-Technica ATW-2192xbTH wireless headworn microphone system, a Shure BLX24R/SM58 handheld wireless system, a BLX14R rack mount guitar / bass wireless system, three Shure SM58S vocal microphones with On/Off switch, a Shure SM57 instrument microphone, a Tascam CD-400U CD and media player with integrated AM/FM receiver and Bluetooth, an Atlas Sound AP-S15LA 15LA power conditioner and distribution unit, a Gator GRC-BASE-14 14U rolling rack, two On-Stage MS7701B boom microphone stands, a lockable 3U rack draw, 1U blank panel, 1U cable pass-through panel and all the cables you need to complete your portable church sound system.

Not sure if this is the right Church Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

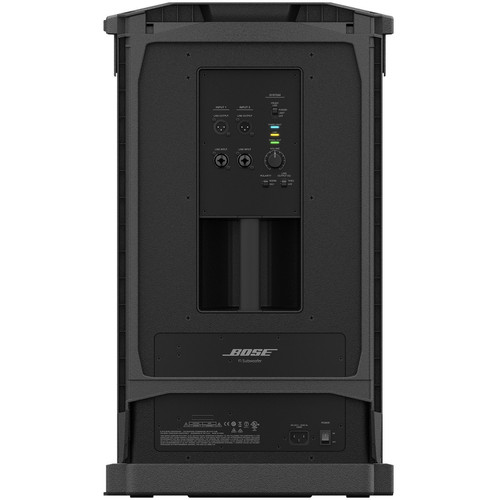

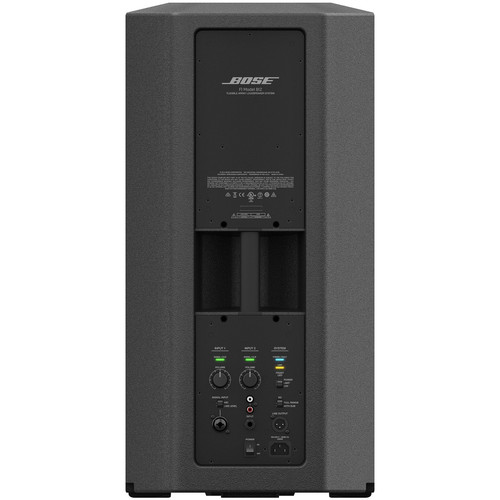

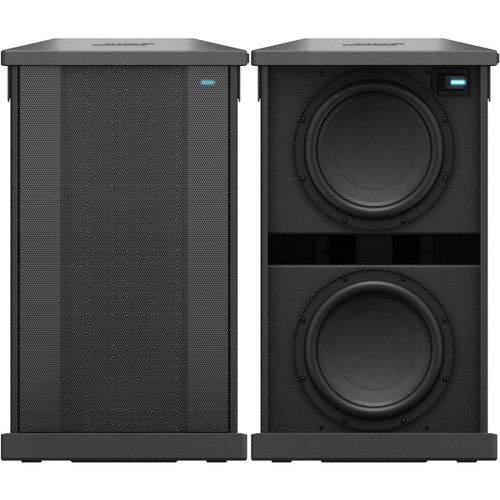

Bose F1 Model 812 Flexible Array Dual System Loudspeaker and Subwoofer:

• 1000W to pack the performance of a larger bass box into a compact design that is easy to carry (subwoofer)
• Two 10" high-excursion drivers built into a compact enclosure that is easy to transport (subwoofer)
• Polarity switch to adjust polarity of subwoofer (subwoofer)
• Line output EQ sets the F1 Subwoofer’s output to a high-pass filter or full range (subwoofer)
• F1 Model 812 extension bracket is a bracket integrated into the subwoofer that can be raised and lowered by the end user (subwoofer)
• Flexible baffle that can be configured into four shapes ("Straight," "C," "J" or “Reverse J"), for best possible coverage pattern (Model 812)
• Vertically oriented 8-driver mid/high line array, with driver mounted on a 100° waveguide (Model 812)
• 12" LF driver for high performance at low frequency for strong low-frequency output (Model 812)
• Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver (Model 812)
• 2 input channels with independent volume controls and Line Level/Mic switch on Channel 1 (Model 812)

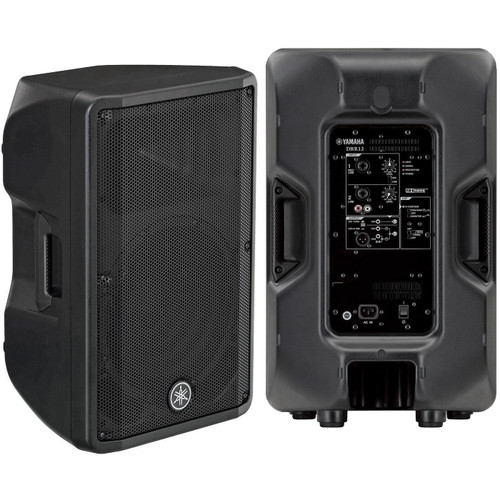

Yamaha DBR12 12" 2 Way Powered Loudspeakers:

• 1000W class D power
• Lightweight enclosure
• Broad coverage
• FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
• D-Contour optimizes the DBR12 for main speaker or floor monitor use
• Onboard mixer lets you select either a direct output or a mixed output
• Comprehensive inputs for mixer, musical instrument, or media players
• Amplifier and power supply design provides powerful output from a compact speaker
• DSP-controlled protection functionality promotes optimum reliability

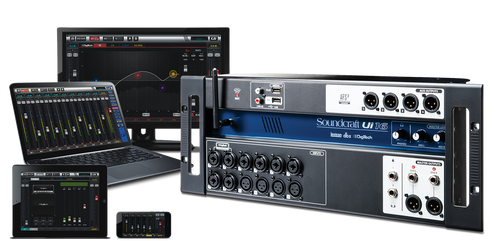

Soundcraft Ui16 16-Input Remote-Controlled Digital Mixer:

• Tablet/PC/Smartphone Controlled Digital Mixer
• Integrated Wi-Fi
• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
• Use up to 10 control devices (tablets, phones, PCs) simultaneously
• Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
• Fully recallable and remote-controlled mic preamps
• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
• 31-band Graphic EQ, Noise Gate and Compressor on all outputs
• Real-Time Frequency Analyser (RTA) on inputs and outputs
• 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
• Subgroups, Mute Groups, View Groups, and more mixer controls
• Show/Snapshot recall with channel safes and security lockout
• 2-Channel USB audio playback and recording



Audio-Technica ATW-2192xbTH Wireless Headworn Microphone System:

• Serious advances in affordable professional wireless
• Clear sound quality and rock-solid, dependable performance
• Automatic frequency scanning
• 10 compatible user-switchable channels
• Antenna power available for powered antennas & other in-line RF devices
• True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
• Tone Lock™ tone squelch system fights interference
• Rugged metal half-rack receiver with soft-touch controls and LCD display
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Switchable transmitter power output with high and low settings offered
• Includes rack-mount kit and detachable UHF antennas
• Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
• ATW-T220a Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound
• ATW-CHG2 charger available for ATW-T220a & ATW-T210a transmitters

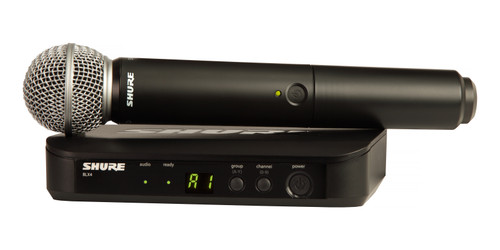

BLX24R/SM58 Rackmount Handheld Wireless System:

• One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
• Up to 14 hours of continuous use from 2 AA batteries (included)
• Up to 300 ft (91 m) operating range for total wireless freedom
• XLR and 1/4" output connectors
• Rugged and reliable Shure construction
• Legendary Shure microphones options featuring integrated microphone capsule design



Shure BLX14R Rackmount Wireless Guitar System:

• Easy set up and operation
• One-touch Quickscan frequency selection quickly locates the best open frequency
• Legendary Shure audio and durable construction



Shure SM58S Vocal Microphone with On/Off Switch:

• Handheld microphone ideal for live vocals
• Dynamic cartridge with cardioid polar pattern
• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Replacement cartridge: R59
• Includes Integrated On/Off switch, swivel adapter and a zippered pouch



Shure SM57 Instrument Microphone:

• Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
• Professional-quality reproduction for drum, percussion, and instrument amplifier miking
• Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
• Pneumatic shock-mount system cuts down handling noise
• Extremely durable under the heaviest use
• Frequency response: 40 to 15,000 Hz
• Replacement cartridge: R57



Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

• CD/SD/USB/and FM/AM tuner realtime audio playback
• Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
• Outputs: XLR, RCA X 2, and headphone
• 1/8" audio input for playback from any external source
• "Power on Play" function starts audio playback automatically when powered on
• "Panel Lock" function disables buttons to avoid unauthorized operation or programming
• Real time recording from CD or FM/AM tuner to SD or USB media
• External control via RS-232C
• Control via ethernet with optional IF-E100 ethernet card is planned in the future

• (2) Bose F1 Model 812 Flexible Array Dual System Loudspeakers and Subwoofers
• (2) Yamaha DBR12 12" 2 Way Powered Loudspeakers
• (1) Soundcraft Ui16 16-input Remote-Controlled Digital Mixer
• (1) Audio-Technica ATW-2192xbTH Wireless Headworn Microphone System - Beige
• (1) Shure BLX24R/SM58 Handheld Wireless System
• (1) Shure BLX14R Rack Mount Guitar / Bass Wireless System
• (3) Shure SM58S Vocal Microphones with On/Off Switch
• (1) Shure SM57 Instrument Microphone
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth

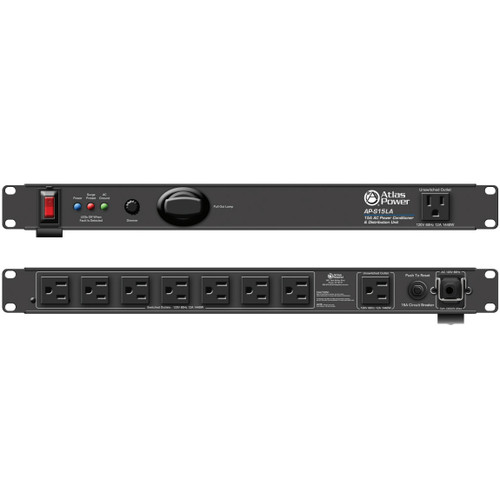

• (1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit

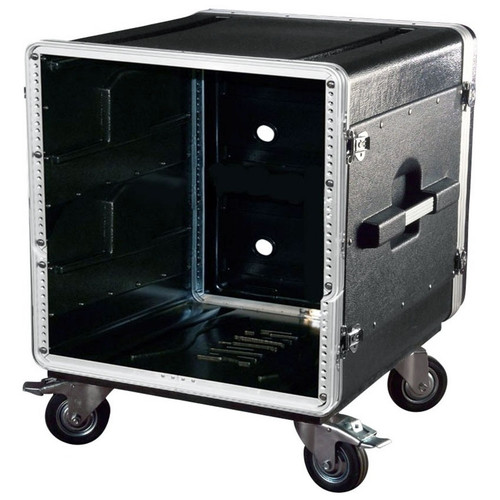

• (1) Gator GRC-BASE-14 14U Rack Base with Casters
• (2) OSS MS7701B On-Stage Euro Boom Microphone Stands
• (1) Gator GRW-DRW3 Rackworks Rack Drawer with Lock
• (1) Gator GRW-PNLSTFT1 1U Steel Flat Panel
• (1) C2G 14599 1U Cable Pass-Through Panel with Brush Strip
• (3) CBI MLN-6 Patch Cables - 6ft
• (2) CBI MLN-15 XLR Microphone Cables - 15ft
• (4) CBI MLN-25 XLR Microphone Cables - 25ft
• (4) CBI MLN-50 XLR Microphone Cables - 50ft
