Inside the Design
This Bose F1 speaker system is comprised of world-class brands and products that will meet the demanding needs of house of worship applications, including spoken word and live music. The Bose F1 Model 812 flexible array loudspeakers let you control its vertical pattern for optimal coverage. Whether you need crowd coverage at floor-level, off of a stage or even the balcony, you can adapt your PA system to meet your requirements perfectly. For extended bass response, the Bose F1 subwoofers pack all the power of larger bass cabinets into a compact design with integrated brackets that fit perfectly in the back for quick setup and tear down. Also included is a 12-channel commercial rackmount mixer and Bluetooth CD media palyer with Bluetooth streaming capabilities.
Sound System Features:
- Bose flexible array speakers can be configured into four unique shapes for the best possible coverage pattern
- Powerful high-output 1000W loudspeakers deliver a maximum SPL of 132 dB each
- Bluetooth media player that plays USB, SD or CDs
- Wirelessly stream audio from any Bluetooth-enabled smartphone, tablet or other mobile devices
- 12-channel line mixer with priority provides individual level control for all inputs in addition to level control for the mono output port and a master level control
- Completely portable sound system that gives you the flexibility you need in a multi-functional space
About the System Components

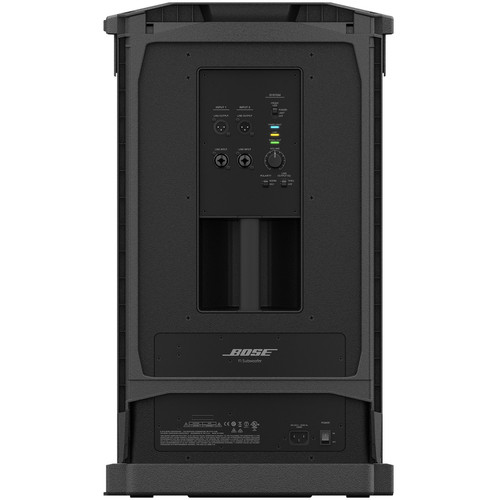

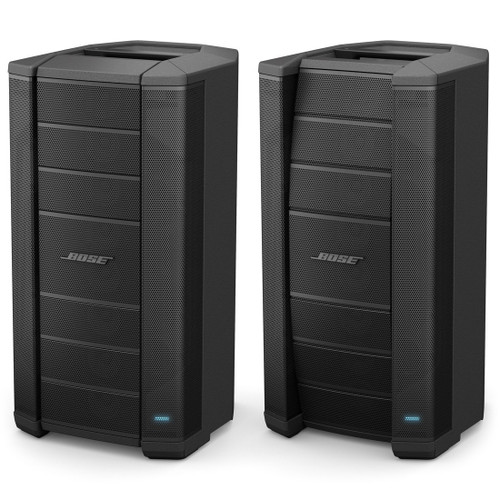

Bose F1 Dual System with (2) F1 Model 812 Loudspeakers and (2) F1 Powered Subwoofers
Powerful, standalone sound that flexes to meet your coverage needs - the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers - to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes.

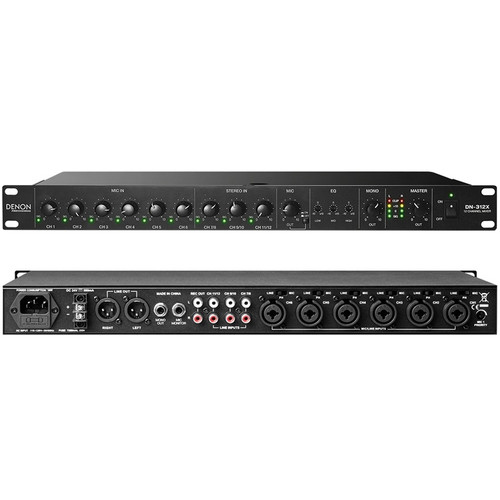

Denon DN-312X 12-Channel Line Mixer
The Denon Professional DN-312X is an ultra-slim 1U rack-mounted 12-channel mixer with 6 mic/line combination inputs (HDHQª Denon-Marantz proprietary mic pre's) and 6 additional line inputs. It has balanced XLR outputs, a 1/4" (6.3 mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4" (6.3 mm) mic monitoring port that can be used to monitor the mics' signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or 24V DC power source.

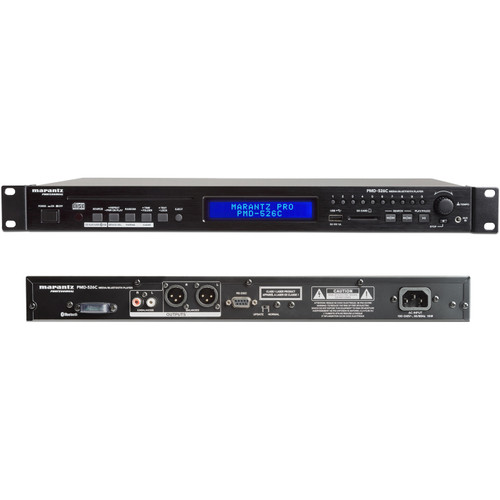

Marantz Professional PMD-526C CD and Media Player with Bluetooth
The Marantz Professional PMD-526C is a highly versatile yet affordable media player that excels in applications where users bring their own devices to the venue. The PMD-526C plays not only CD media but provides Bluetooth connectivity, USB playback, SD card functionality and a 3.5 mm AUX input. Perfect for both advanced individual users and commercial applications, this player features Bluetooth Pairing, Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, RS-232c control and balanced XLR output. The PMD-526C offers the kind of performance, build quality and versatility that is difficult to find even on competitive units costing several hundreds of dollars more.
