Bose Professional FreeSpace 3 Series II Omni Pendant-Mount Loudspeaker System - White (Discontinued)

Bose Professional FreeSpace 3 Series II Omni Pendant-Mount Loudspeaker System - White (Discontinued)

Name: Bose Professional FreeSpace 3 Series II Omni Pendant-Mount Loudspeaker System - White (Discontinued)
Brand: Bose Professional
SKU: BOSE-37525

Write a Review

Part #:

37525

Model #:

FS3-Omni

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Bose® FreeSpace® 3 Series II Omni Pendant-Mount System is designed for installation in open ceiling “big box” applications. It features a wide coverage pattern and frequency response down to 40 Hz. Exposed ceiling pendant speaker system; ideal for exposed structures or open plenum ceilings with contemporary open architecture.

Description

Bose FreeSpace 3 Pendant Kit with 4 Bose FreeSpace 3 Satellite Surface Speakers
and Bose FreeSpace 3 Series II Acoustimass Bass Module

Bose FreeSpace 3 Subwoofer and Satellite system that delivers high fidelity and extended bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations. Bose modular design supports the flexibility for use of 4 satellites with an Acoustimass bass module. FreeSpace® 3 systems feature a wide coverage pattern and frequency response down to 40 Hz.

The Bose® FreeSpace® 3 subwoofer/satellite systems are high-performance, extended-range loudspeaker systems designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. Surface and flush components can be mixed and matched to provide greater flexibility to suit a wide range of applications. FreeSpace® 3 systems feature a wide coverage pattern and frequency response down to 40 Hz.

Features

Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications
Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
Flush-mount components are plenum rated when used with the optional plenum cover
Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
Can be configured for stereo or mono operation

Specifications

System Performance
Frequency Response (+/-3 dB)	50 Hz - 16 kHz
Frequency Range (-10 dB)	40 Hz - 20 kHz
Nominal Dispersion	Acoustimass Module: Omni-directional below 200 Hz Satellites: 170° conical
Recommended High-Pass Filter	40 Hz high-pass filter
Loudspeaker EQ	Recommended
Overload Protection	PTC
Long-Term Power Handling	70/100V: 200W (800W peak) Low impedance: 100W (400W peak)
Sensitivity (SPL / 1 W @ 1 m)	82 dB SPL
Maximum SPL @ 1 m	93 dB (99 dB SPL peak in a 45,000 ft³ room, with RT60 of 1 second, +/- 3 dB)
Nominal Impedance	4-Cube System: 6 Ω per channel
Transformer Taps (70/100V)	25W, 50W, 100W, 200W
Driver Compliment	Acoustimass Module: 5.25" (133 mm) dual voice coil low frequency driver Satellites: 2.5" (64 mm) full-range driver (per satellite)
Physical
Enclosure	Acoustimass Module: PC/ABS Satellites: High-impact polystyrene, textured
Grille	Acoustimass Module: Expanded metal grille Satellites: Cloth grille
Environmental	Indoor use only
Dimensions
Flush Mount Acoustimass Module	Outer flange dia: 15.4" (391 mm) Depth: 7.4" (189 mm)
Surface Mount Satellites (H x W x D)	3.0" (77 mm) x 3.0" (77 mm) x 4.0" (102 mm)
Net Weight
Flush Mount Acoustimass Module	14 lbs (6.5 kg)
Surface Mount Satellites	1.8 lbs (0.8 kg)
Shipping Weight
Flush Mount Acoustimass Module	20 lbs (9.1 kg)
Surface Mount Satellites (Pair)	4.0 lbs (1.8 kg)

DOCUMENTS

System Includes

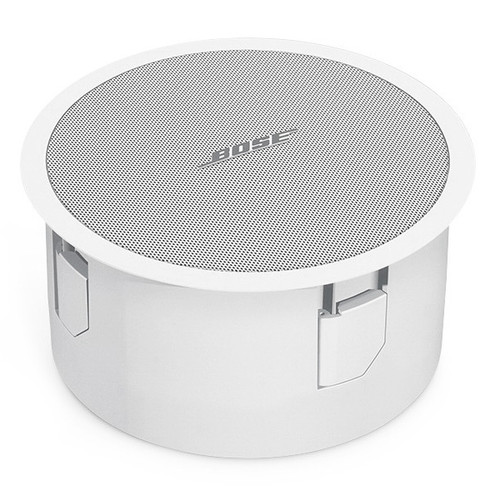

(1) Bose® FreeSpace® 3 Series II Acoustimass® Bass Module
(4) Bose® FreeSpace® 3 Satellite Surface Speakers
(1) Bose® FreeSpace® 3 Pendant Kit
