This Bose pendant-mount loudspeaker package includes a Bose FreeSpace DS 100F ceiling loudspeaker with a pendant-mount kit for use in any open ceiling application such as restaurants, retail, offices, hotels, lobbies, and more.

Description

Bose FreeSpace DS 100F Loudspeaker Package with Pendant-Mount Kit for Open Ceiling Applications

This Bose pendant-mount loudspeaker package includes a Bose FreeSpace DS 100F ceiling loudspeaker with a pendant-mount kit for use in any open ceiling application such as restaurants, retail, offices, hotels, lobbies, and more.

The Bose® FreeSpace DS 100F is the premier member of the DS loudspeaker family. It is a high-performance, extended-range, flushmount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. The FreeSpace DS 100F loudspeaker features high output and wide, 160° conical pattern with a frequency range down to 60 Hz. The pendant-mount kit includes suspension hardware and a loudspeaker cosmetic cover designed for hanging the Bose FreeSpace DS 100F loudspeaker from open ceilings, perfect for installed commercial applications with high ceilings.

Applications:

  • Retail stores
  • Restaurants and bars
  • Concourses
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship
  • Ballrooms

Features
  • Extended-range, high output loudspeaker with a single 2.25" (57 mm) Twiddler® driver and 5.25" (133 mm) woofer in ported enclosure to deliver a 160° conical coverage pattern for flush-ceiling or pendant-mount applications in ceilings up to 32 ft (10 m) high
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

Specifications
Frequency Response (+/-3 dB) 75 Hz - 18 kHz
Frequency Range (-10 dB) 60 Hz - 20 kHz
Nominal Dispersion 160° conical
Recommended High-Pass Filter 55 Hz high-pass filter
Loudspeaker EQ Recommended
Overload Protection PTC/Lamp
Long-Term Power Handling 100W (400W peak)
Sensitivity (SPL / 1 W @ 1 m) 85 dB SPL
Maximum SPL @ 1 m 105 dB SPL (111 dB SPL peak)
Nominal Impedance 8Ω (transformer bypassed)
Transformer Taps (70/100V) 70 V: 12.5 W, 25 W, 50 W, 100 W
100 V: 25 W, 50 W, 100 W
Driver Compliment 2.25" (57 mm) Twiddler® driver
5.25" (133 mm) woofer
Enclosure Polypropylene (front baffle), powder-coated steel (rear enclosure)
Grille Powder-coated steel grille
Environmental Indoor use only
Connectors Three-terminal barrier strip
Optional accessory available for use when ceramic connector and thermal fuse are required
Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)

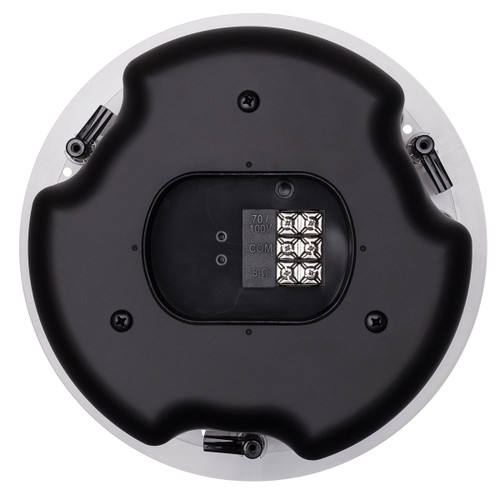

Suspension / Mounting Three integrated quick-install mounting arms
Three mounting points at the rear of the enclosure for use with pendant mount kit
Safety cable attachment: .35" (8.9 mm) diameter hole on junction box
Dimensions (Enclosure only) Outer flange diameter: 11.8" (299 mm)
Depth: 8.2" (210 mm)
Ceiling hole diameter: 10.5" (267 mm)
Ceiling Thickness (Maximum) 1.5" (38 mm)
Weight (with transformer) 13 lbs (5.9 kg)
Shipping Weight 16 lbs (7.3 kg)

DOCUMENTS

Package Includes
  • (1) Bose FreeSpace DS 100F Ceiling Loudspeaker
  • (1) Bose FreeSpace DS 40F/DS 100F Pendant-Mount Kit with Hardware
