Description

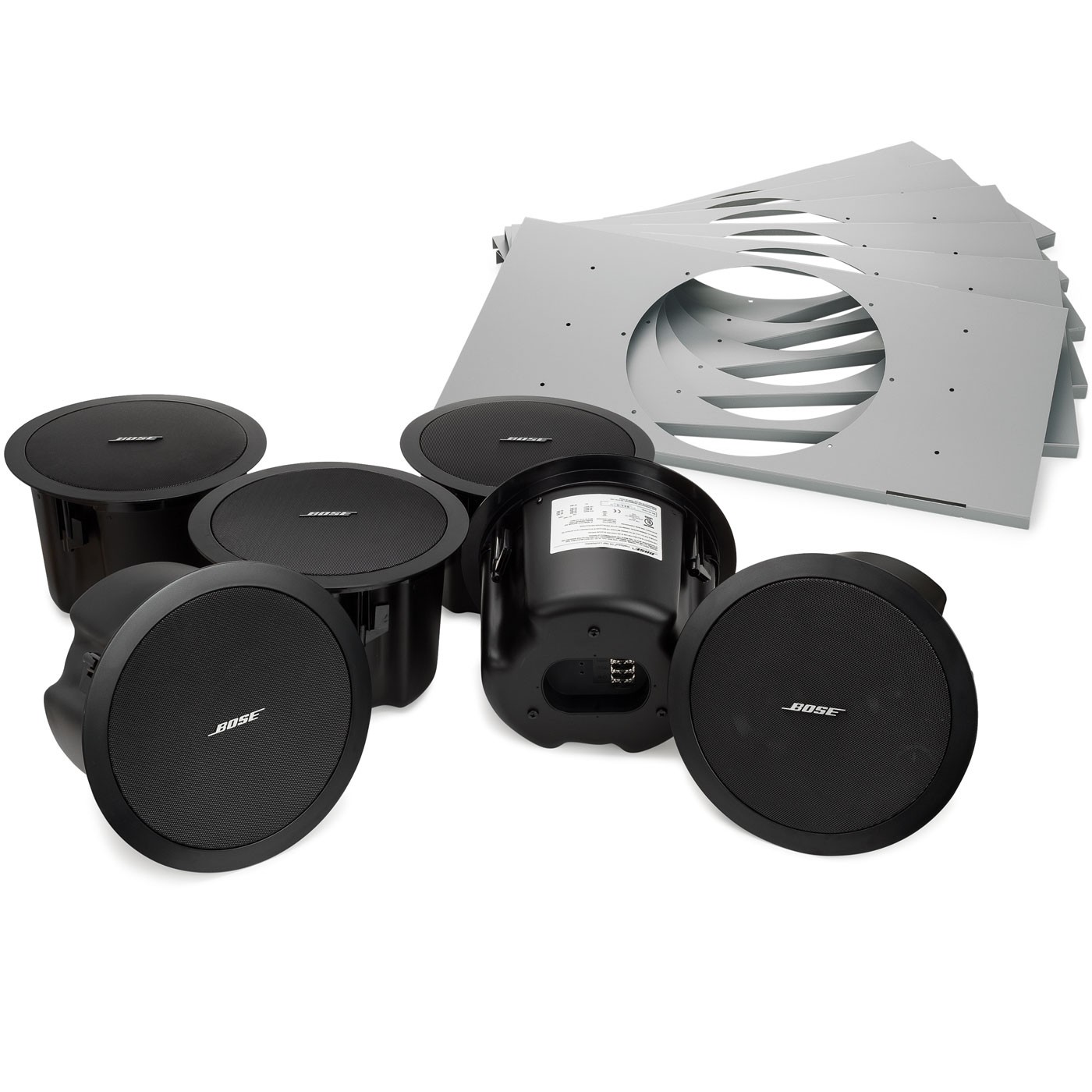

Bose FreeSpace DS 100F Contractor Pack with 6 In-Ceiling Flush Mount Loudspeakers and 6 Tile Bridges

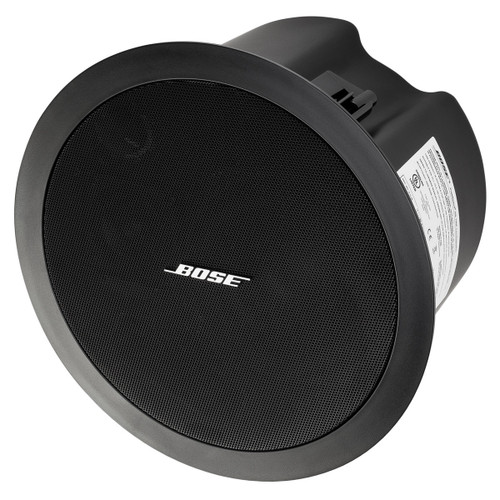

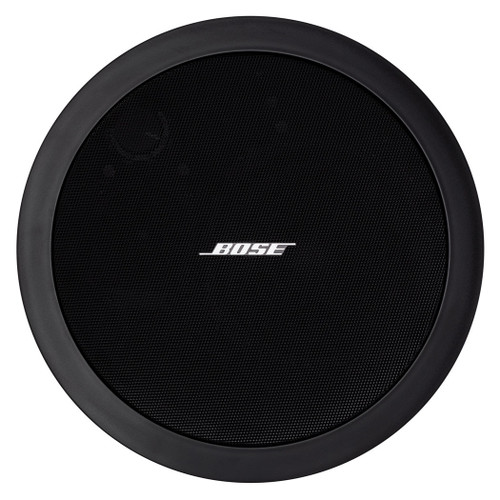

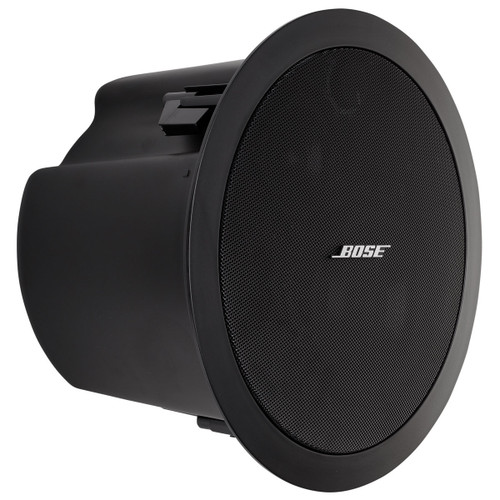

The Bose® FreeSpace® DS 100F is the premier member of the DS loudspeaker family. It is a high-performance, extended-range, flushmount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. The FreeSpace DS 100F loudspeaker features high output and wide, 160° conical pattern with a frequency range down to 60 Hz.
Power settings available: 12.5, 25, 50, and 100 watts at 70 volts; 25, 50, and 100 watts at 100 volts; and 100 watts at 8 ohms. The nominal dispersion is 160° conical coverage pattern at -6 dB (average 1 – 4 kHz). Suspension and Mounting; Three integrated quick-install mounting arms. Three mounting points at the rear of the enclosure for use with optional accessory pendant mount kit. Safety cable attachment: .35" (8.9 mm) diameter hole on junction box.
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality. EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems.
Bose FreeSpace background/foreground loudspeakers are designed for a wide range of commercial audio applications, including retail shops, hotels, shopping malls, restaurants, conference rooms, bars and health clubs.
The Bose® FreeSpace® DS 40F/DS 100F tile bridges are designed for mounting DS 40F and DS 100F loudspeakers in hung-tile ceilings.
Features
- Extended-range, high output loudspeaker with a single 2.25 (57 mm) Twiddler® driver and 5.25 (133 mm) woofer in ported enclosure to deliver a 160° conical coverage pattern for flush-ceiling or pendant-mount applications in ceilings up to 32 ft (10 m) high
- Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
- Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
- Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
Specifications
| Frequency Response (+/-3 dB) | 75 Hz - 18 kHz |
|---|---|
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
| Nominal Dispersion | 160° conical |
| Recommended High-Pass Filter | 55 Hz high-pass filter |
| Loudspeaker EQ | Recommended |
| Overload Protection | PTC/Lamp |
| Long-Term Power Handling | 100W (400W peak) |
| Sensitivity (SPL / 1 W @ 1 m) | 85 dB SPL |
| Maximum SPL @ 1 m | 105 dB SPL (111 dB SPL peak) |
| Nominal Impedance | 8 Ω (transformer bypassed) |
| Transformer Taps (70/100V) | 70V: 12.5W, 25W, 50W, 100W 100V: 25W, 50W, 100W |
| Driver Compliment | 2.25" (57 mm) Twiddler® driver 5.25" (133 mm) woofer |
| Enclosure | Polypropylene (front baffle), powder-coated steel (rear enclosure) |
| Grille | Powder-coated steel grille |
| Environmental | Indoor use only |

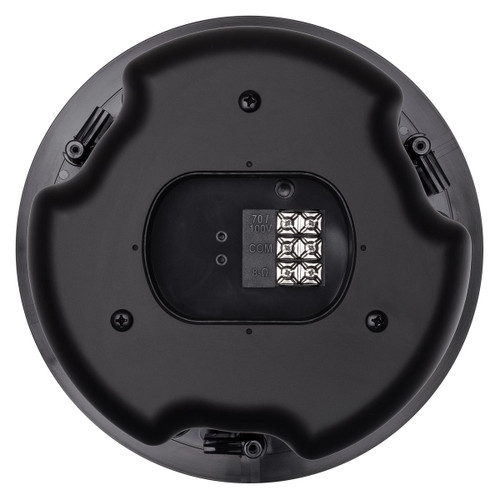

| Connectors | Three-terminal barrier strip. Optional accessory available for use when ceramic connector and thermal fuse are required. Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm) |
| Suspension / Mounting | Three integrated quick-install mounting arms. Three mounting points at the rear of the enclosure for use with optional accessory pendant mount kit. Safety cable attachment: .35" (8.9 mm) diameter hole on junction box |
| Ceiling Thickness (Maximum) | 1.5" (38 mm) |
| Speaker Dimensions | Outer flange diameter: 11.8" (299 mm) Depth: 8.2" (210 mm) Ceiling hole diameter: 10.5" (267 mm) |
| Speaker Weight (ea) | 13 lbs (5.9 kg) |
