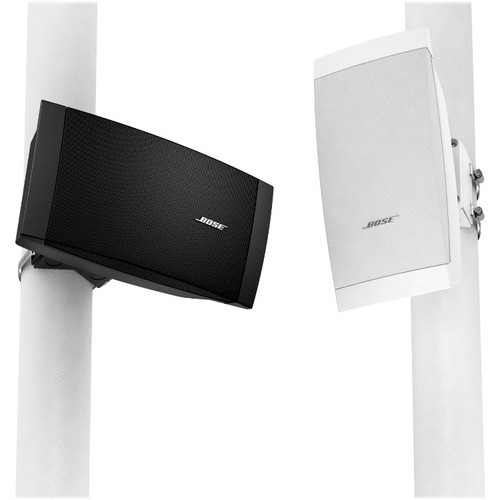

Bose FreeSpace DS 100SE Indoor Outdoor Loudspeaker with 70/100V 8Ω Transformer
The Bose® FreeSpace® DS 100SE loudspeaker is the premier member of the DS loudspeaker family. It is a high-performance, full-range surface-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. The DS 100SE features a rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz.
The FreeSpace DS 100SE loudspeakers are ideally suited to background music, foreground music and paging applications with mounting heights between 8 and 32ft (2.4 to 10m). The Articulated Array™, composed of two 2.25 inch drivers, delivers consistent response across the entire 180° coverage area. The 5.25 inch driver, mounted in a ported enclosure, provides the additional bandwidth required for today’s foreground music applications. The FreeSpace DS 100SE loudspeakers are compatible with 70V, 100V and low impedance amplifiers and are capable of delivering up to 95 dB SPL in a typical application with a 15ft (4.8m), mounting height.
