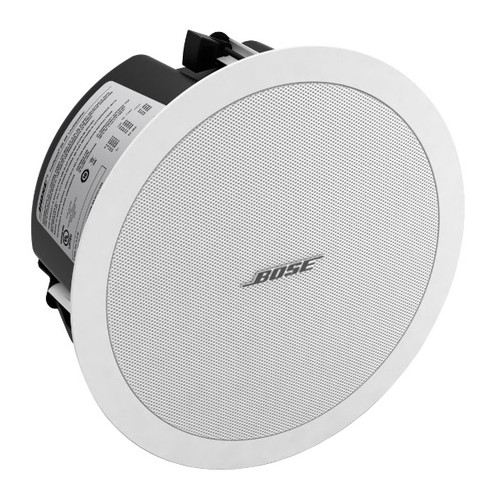

Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)
By Bose Professional

Bose Professional FreeSpace DS 40F Contractor 6-Pack with Pendant-Mount Kits - White (Discontinued)

Write a Review
Part #:
DSPK-6DS40F6PNDNTKTWH
Model #:
DSPK-6DS40F6PNDNTKTWH
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

This Bose pendant-mount loudspeaker contractor package includes 6 Bose FreeSpace DS 40F ceiling loudspeakers and 6 pendant-mounting kits for use in any open ceiling application such as restaurants, retail, offices, hotels, lobbies, and more.

Description

Bose FreeSpace DS 40F Loudspeaker Package with Pendant-Mount Kits for Open Ceiling Applications

This Bose pendant-mount loudspeaker contractor package includes 6 Bose FreeSpace DS 40F ceiling loudspeakers and 6 pendant-mounting kits for use in any open ceiling application such as restaurants, retail, offices, hotels, lobbies, and more.

The Bose DS 40F versatile, high-performance, full-range, flush-mount loudspeaker is designed for foreground and background music and speech reproduction in a wide range of installed applications. It features high output and 125° conical pattern with a frequency range down to 70 Hz. The pendant-mounting kits include suspension hardware and loudspeaker cosmetic covers designed for hanging the Bose FreeSpace DS 40F loudspeakers from open ceilings, perfect for installed commercial applications with high ceilings.

Applications:

  • Retail stores
  • Restaurants and bars
  • Concourse
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship
  • Ballrooms

Features

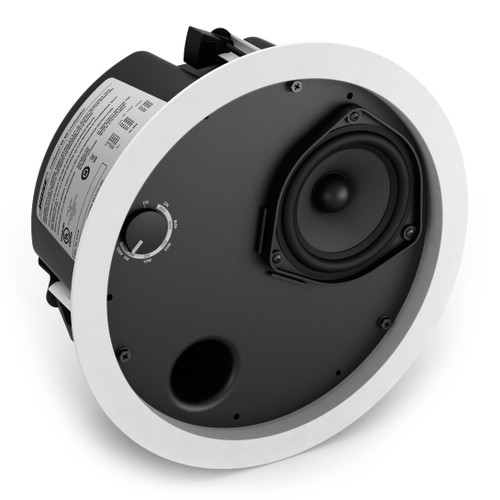

  • Full-range loudspeaker with a single 4.5" (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications
  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
  • Shortcan design allows installation in shallower ceilings with minimum depth of 6.4" (163 mm)
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

Specifications
Frequency Response (+/-3 dB) 80 Hz - 17 kHz
Frequency Range (-10 dB) 70 Hz - 19 kHz
Nominal Dispersion 125° conical
Recommended High-Pass Filter 70 Hz high-pass filter
Loudspeaker EQ Recommended
Overload Protection PTC/Resistor
Long-Term Power Handling 40W (160W peak)
Sensitivity (SPL / 1 W @ 1 m) 87 dB SPL
Maximum SPL @ 1 m 103 dB SPL (109 dB SPL peak)
Nominal Impedance 8Ω (transformer bypassed)
Transformer Taps (70/100V) 70V: 2.5W, 5W, 10W, 20W, 40W
100V: 5W, 10W, 20W, 40W
Driver Compliment 4.5" (114 mm) full-range driver
Enclosure Polypropylene (front baffle), powder-coated steel (rear enclosure)
Grille Powder-coated steel grille
Environmental Indoor use only
Connectors Three-terminal barrier strip
Optional accessory available for use when ceramic connector and thermalfuse are required
Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)
Suspension / Mounting Three integrated quick-install mounting arms
Three mounting points at the rear of the enclosure for use with pendant mount kit
Safety cable attachment: .35" (8.9 mm) diameter hole on junction box
Dimensions (Enclosure only) Outer flange diameter: 11.8" (300 mm)
Depth: 6.0" (153 mm)
Ceiling hole diameter: 10.5" (267 mm)
Ceiling Thickness (Maximum) 2.5" (64 mm)
Weight (Individual speaker with transformer) 8.3 lbs (3.7 kg)

DOCUMENTS

Package Includes
  • (6) Bose FreeSpace DS 40F Ceiling Loudspeakers
  • (6) Bose FreeSpace DS 40F/DS 100F Pendant-Mount Kits with Hardware
