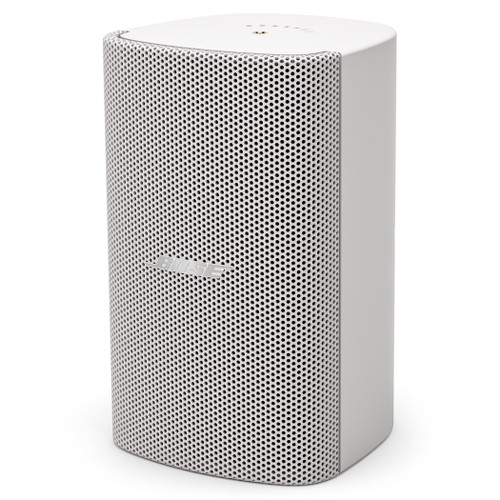

Bose FreeSpace FS2SE Surface Mount Loudspeakers

Bose Professional FreeSpace FS2SE Surface-Mount Loudspeaker 16-Ohm and 70/100 Volt 64 Watts UL1480 ULC-S541 Listed iP55 Outdoor Rating - White Pair

Bose Professional FreeSpace FS2SE Surface-Mount Loudspeaker 16-Ohm and 70/100 Volt 64 Watts UL1480 ULC-S541 Listed iP55 Outdoor Rating - White Pair

Name: Bose Professional FreeSpace FS2SE Surface-Mount Loudspeaker 16-Ohm and 70/100 Volt 64 Watts UL1480 ULC-S541 Listed iP55 Outdoor Rating - White Pair
Brand: Bose Professional
SKU: BOSE-841151-0420
Price: 349 USD
Availability: InStock

Write a Review

Part #:

841151-0420

Model #:

FreeSpace FS2SE

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Bose FS2SE surface mount speaker for indoor and outdoor applications features a full-range 2.25" cone transducer, low frequency range down to 83 Hz, 16-ohm and 70/100V operation. Audio connections are terminated with a detachable Euroblock connector, and the FS2SE is iP55 rated for outdoor installation.

Description

Bose FreeSpace FS2SE Surface-Mount Loudspeaker Designed for High-Quality Performance

The Bose sound quality you expect. The improvements you need. The Bose surface-mount FS2SE features a full-range 2.25" cone transducer, low frequency range down to 83 Hz, 16-ohm and 70/100V operation. Audio connections are terminated with a detachable Euroblock connector, and the FS2SE is iP55 rated for outdoor installation.

FreeSpace FS loudspeakers are designed for high-quality performance in both background music and voice announcement applications. Redesigned enclosures and aesthetics, removable logos, metal backcans on ceiling-mount models, and ease-of-installation features mean that this update to the classic FreeSpace FS line is ideal for installations in almost any commercial space.

Included Accessories: Each FS2SE includes one (1) Bose logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover

Install Outdoors: The FS2SE is iP55 outdoor rated

Safety Ratings: Certification: UL1480, ULC-S541 for Fire Alarm and Signaling Systems

Applications:

Retail stores
Restaurants and bars
Concourses
Transportation facilities
Resorts and hospitality venues

Features

Maintain consistent tonal quality with shared voicing across all FS models
Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
Support public safety - EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
Bring quality sound to more places with the FS2SE - rated for outdoor, wet installations

Specifications

Frequency Response (-3 dB)	95 – 16,000 Hz
Frequency Range (-10 dB)	83 – 19,000 Hz
Nominal Coverage Angle (H x V)	145° x 140°
Nominal Coverage (H x V) (1 - 10 kHz)	130° x 130°
Power Handling, Long-Term Continuous	Bose extended-life cycle test: 16W AES transducer test: 20W
Power Handling, Peak	Bose extended-life cycle test: 64W AES transducer test: 80W
Sensitivity (SPL/1W @ 1 m)	Bose extended-life cycle test: 87 dB AES transducer test: 87 dB
Calculated Maximum SPL @ 1 m	Bose extended-life cycle test: 99 dB AES transducer test: 100 dB
Calculated Maximum SPL @ 1 m, Peak	Bose extended-life cycle test: 105 dB AES transducer test: 106 dB
Loudspeaker EQ	No Bose Professional EQ required when speaker used for general use. Bose Professional EQ Voicing and SmartBass available. EN 54-24 equalization is required for EN 54-24 use; refer to installation guide for details.
Recommended High-Pass Protection	85 Hz with minimum 24-dB/octave filter
Transformer Taps	70V: 1, 2, 4, 8, 16W, bypass 100V: 2, 4, 8, 16W, bypass
Full-Range Driver	1 x 2.25-inch woofer (57 mm)
Nominal Impedance	16 ohms (transformer bypass)
Bracket Material	Powder-coated steel
Enclosure Material	Engineered plastics, highly UV fade resistant
Grille	Perforated steel, powder-coat finish, tamper-resistant design
Logo	Rotatable, removable
Color	White: similar to Ral 9003
Environmental/Ingress-Protection	Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available
Safety Agency	Certification: EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A). For EN 54-24 specifications, refer to installation guide. EN 54-24 equalization required for EN 54-24 use. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32.
Operating Temperature Range	-25 °C to 70 °C (-13 °F to 158 °F)
Connectors	Euroblock 6-pin connector with loop-through, mounted on rear Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire

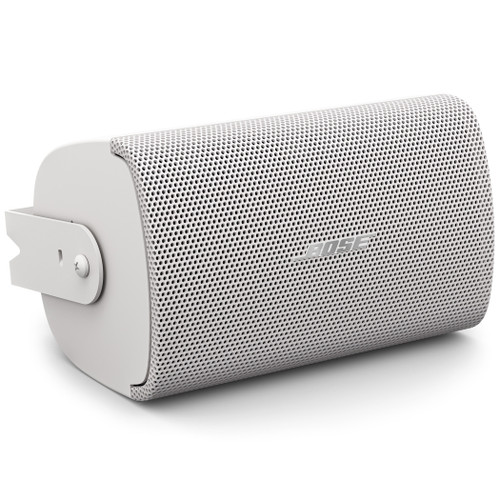

Suspension/Mounting	External U-bracket with bracket screws 7 preset mounting angles: 0°, ± 15°, ± 30°, or ± 45° for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional Ceiling Mount Bracket, or DMSBRKT pan & tilt bracket Safety cable can be used with either of two (2) rear M8 inserts when using included U-bracket, or with either of two (2) side M8 inserts, when using optional brackets
Optional Accessories	Aluminum Grille kit (2-pack), DesignMax DMSBRKT pan-and-tilt bracket (for indoors), Ceiling Mount Bracket S2, Ceramic Terminal and Thermal Fuse Kit (10-pack)
Dimensions (H x W x D)	4.45" (113 mm) x 7.1" (182 mm) x 4.49" (114 mm)
Dimensions with Bracket (H x W x D)	4.45" (113 mm) x 7.83" (199 mm) x 5.31" (135 mm)
Net Weight	3.15 lbs (1.43 kg)
Shipping Weight (Pair)	9.2 lbs (4.17 kg)
