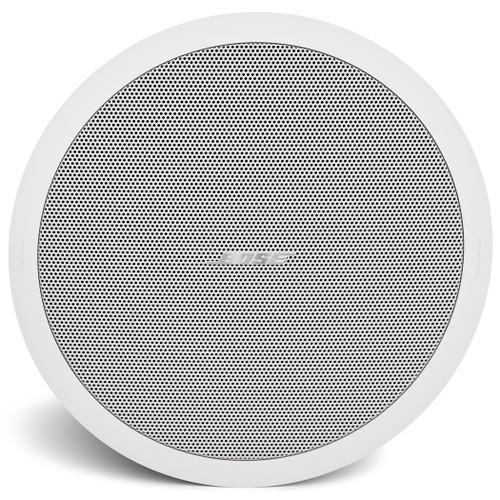

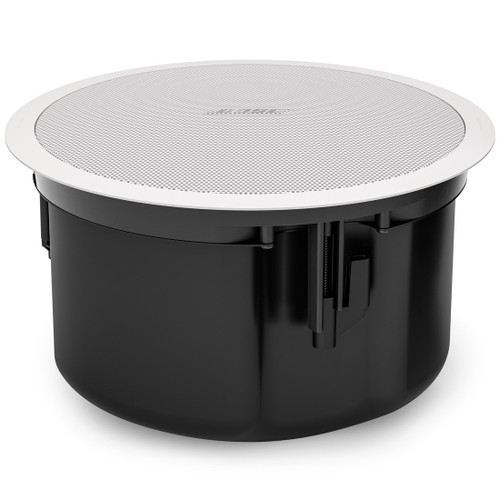

Bose FreeSpace FS4CE Ceiling Loudspeakers

Bose Professional FreeSpace FS4CE Ceiling Loudspeaker 8-Ohm and 70/100 Volt 160 Watts UL1480 ULC-S541 UL2043 Listed iP55 Outdoor Rating - White Pair

Bose Professional FreeSpace FS4CE Ceiling Loudspeaker 8-Ohm and 70/100 Volt 160 Watts UL1480 ULC-S541 UL2043 Listed iP55 Outdoor Rating - White Pair

Name: Bose Professional FreeSpace FS4CE Ceiling Loudspeaker 8-Ohm and 70/100 Volt 160 Watts UL1480 ULC-S541 UL2043 Listed iP55 Outdoor Rating - White Pair
Brand: Bose Professional
SKU: BOSE-841156-0420
Price: 449 USD
Availability: InStock

Write a Review

Part #:

841156-0420

Model #:

FreeSpace FS4CE

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Bose Freespace FS4CE commercial ceiling-mount speaker for indoor and outdoor applications features a full-range 4.5" cone transducer, low frequency range down to 70 Hz, 8-ohm and 70/100V operation. The FS4CE is rated iP55 rated for outdoor installation (suitable for use outdoors in wet locations), highly UV fade resistant and includes weather resistant input cover.

Description

Bose FreeSpace FS4CE Indoor/Outdoor Ceiling Loudspeaker Designed for High-Quality Performance

The ceiling-mount FS4CE features a full-range 4.5" cone transducer, low frequency range down to 70 Hz, 8-ohm and 70/100V operation, with front baffle-mounted tap settings, and front baffle audio connections on detachable Euroblock connector. The FS4CE is also iP55 rated for outdoor installation.

FreeSpace FS loudspeakers are designed for high-quality performance in background music and voice announcement applications. Redesigned enclosures and aesthetics, removable logos, metal backcans on ceiling-mount models, and ease-of-installation features mean that this update to the classic FreeSpace FS line is ideal for installations in almost any commercial space.

Included Accessories: Each FS4CE includes one (1) weather-resistant input cover, one (1) cut-out template per box

Install Outdoors: The FS4CE is iP55 outdoor rated

Safety Ratings: Certification: UL 1480A, ULC-S541 for Fire Alarm and Signaling Systems, UL2043 plenum-rated backcan and front baffle audio wiring access

Applications:

Retail stores
Restaurants and bars
Concourses
Transportation facilities
Resorts and hospitality venues

Features

Maintain consistent tonal quality with shared voicing across all FS models
Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mixand-match installations. DesignMax subwoofers and larger models can expand your system design options even further
Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
Support public safety - EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
Bring quality sound to more places with the FS4CE - rated for outdoor, wet installations

Specifications

Frequency Response (-3 dB)	80 - 16,000 Hz
Frequency Range (-10 dB)	70 – 17,000 Hz
Nominal Coverage Angle	145°
Nominal Coverage (1 - 10 kHz)	115°
Power Handling, Long-Term Continuous	Bose extended-life cycle test: 40W AES transducer test: 50W
Power Handling, Peak	Bose extended-life cycle test: 160W AES transducer test: 200W
Sensitivity (SPL/1W @ 1 m)	Bose extended-life cycle test: 88 dB AES transducer test: 88 dB
Calculated Maximum SPL @ 1 m	Bose extended-life cycle test: 104 dB AES transducer test: 105 dB
Calculated Maximum SPL @ 1 m, Peak	Bose extended-life cycle test: 110 dB AES transducer test: 111 dB
Loudspeaker EQ	No Bose Professional EQ required when speaker used for general use. Bose Professional EQ Voicing and SmartBass available. EN 54-24 equalization is required for EN 54-24 use; refer to installation guide for details.
Overload Protection	Resistor-network power reduction with automatic reset
Recommended High-Pass Protection	70 Hz with minimum 24-dB/octave filter
Transformer Taps	70V: 2.5, 5, 10, 20, 40W, bypass 100V: 5, 10, 20, 40W, bypass
Full-Range Driver	1 x 4.5-inch woofer (114 mm)
Nominal Impedance	8 ohms (transformer bypass)
Enclosure Material	Engineered-plastics front baffle, highly UV fade resistant, with integrated steel formed back can
Grille	Perforated steel, powder-coated finish
Logo	Rotatable, removable
Color	White: similar to Ral 9003
Environmental/Ingress-Protection	Rated for direct-exposure outdoor installations (IP55 per EN 60529; IP33C per EN 54-24). Suitable for use in outdoors in wet locations and suitable for use in plenum locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available.
Safety Agency	Certification: EN 54-24:2008 for Voice Alarm Systems; UL 1480(A); in compliance with UL 2043 for plenum-space installation. For EN 54-24 specifications, refer to installation guide. EN 54-24 equalization required for EN 54-24 use. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32
Operating Temperature Range	-25 °C to 70 °C (-13 °F to 158 °F)
Connectors	Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Wire/Conduit Entry	Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in) conduit and fittings
Suspension/Mounting	Suspension/Mounting Three (3) standard mounting arms plus one (1) safety cable tab
Optional Accessories	Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in Pan (6-pack), Retrofit Kit (2-pack), Ceramic Terminal and Thermal Fuse Kit (10-pack), Aluminum Grille kit (2-pack)
Maximum Ceiling Thickness	1.5" (38 mm)
Ceiling Cutout	9.84" (250 mm)
Backcan Dimensions (Dia x D)	8.7" (220 mm) x 6.4" (163 mm)
Dimensions (Baffle Dia x D)	10.71" (272 mm) x 6.8" (172 mm)
Net Weight	7.65 lbs (3.47 kg)
Shipping Weight (Pair)	19.95 lbs (9.05 kg)
