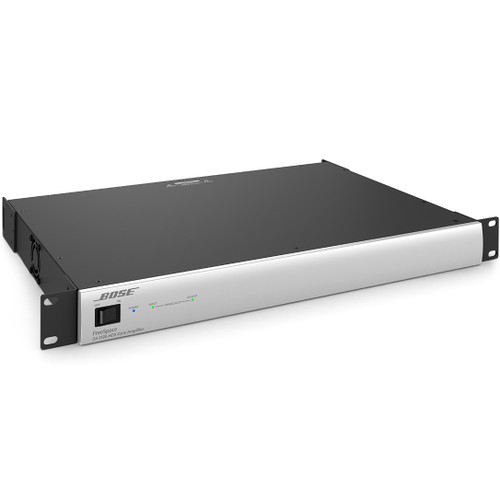

Bose Professional FreeSpace ZA 2120-LZA Zone Amplifier (Discontinued)

Bose Professional FreeSpace ZA 2120-LZA Zone Amplifier (Discontinued)

Name: Bose Professional FreeSpace ZA 2120-LZA Zone Amplifier (Discontinued)
Brand: Bose Professional
SKU: BOSE-791354-1410

Write a Review

Part #:

791354-1410

Model #:

FreeSpace ZA 2120-LZA

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Bose® FreeSpace® ZA 2120-LZA zone amplifier is designed to provide basic amplification and sound system expansion when using front-end Bose products such as FreeSpace® integrated zone amplifiers and ControlSpace® engineered sound processors. With the inclusion of AmpLink, up to 8 digital audio channels can be sent to the amp from a Bose DSP via a shielded CAT 5 cable.

Applications:

Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones

Features

Reliable 2 x 120 W Class-D amplification optimized for low-impedance applications
AmpLink transports up to 8 uncompressed, near-zero latency, digital audio channels between Bose DSPs and the ZA 2120-LZA via shielded CAT 5 cable. The amp also supports a THRU path for daisy-chaining digital audio to other Bose AmpLink products at a distance of up to 10 m between products
Remote option for volume control eliminates the need for bulky, inefficient, and sound-altering in-line volume controls
Expansion-ready connectivity with FreeSpace® IZA amplifiers and ControlSpace® engineered sound processors when additional sources and loudspeaker processing is required
Intuitive feature setup enables the amplifier to be configured without a PC for input, output and automatic standby options
Auto-Standby feature allows the amplifier to consume less power when not in use
Remote muting allows the amplifier to be muted via a centralized control system

Specifications

Amplifier Power	2 x 120 W @ 4 Ω, 2 x 60 W @ 8 Ω
Frequency Response	20 Hz - 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)
THD+N	≤ 0.5 % (at rated power)
Dynamic Range	88 dB
Input Channels	1 unbalanced, 1 balanced
Dimensions (H x W x D)	1.7" (44 mm) x 19" (483 mm) x 12.8" (324 mm)
Weight	9 lbs (4.1 kg)
Shipping Weight	11.5 lbs (5.2 kg)
