Bose Hotel Sound System with MA12 Loudspeaker and MA12EX Loudspeaker (Discontinued Components)

By Bose Professional

Bose Hotel Sound System with MA12 Loudspeaker and MA12EX Loudspeaker (Discontinued Components)

Write a Review

Part #:

HTSS-MA12MA12EX

Model #:

HTSS-MA12MA12EX

Current Stock:

Availability: Some products in this system are discontinued. In-stock alternatives may be available.

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This Hotel Conference and Ballroom Sound System reproduces rich, natural music for weddings and parties along with clear, intelligible speech for meetings and conferences – and blends in beautifully with any room decor.

Description

How important is quality sound for your hotel or resort? Consider all the places where sound can affect your guests’ experience: the lobby, guest room, restaurant, spa, meeting and function rooms. Sound is an amenity your guests enjoy on nearly every inch of your property.

Elegant and compact, Bose sound systems reproduce rich, natural music for weddings and parties, along with clear, intelligible speech for meetings and conferences – without being obtrusive or unsightly. Exclusive Bose products such as ControlSpace® electronics allow guests to easily select sources and adjust volume while ensuring hotel managers can combine spaces as needed, select appropriate sources and control each function room from a single location.

A Bose® solution like this Hotel Conference and Ballroom Sound System offers benefits specifically for the requirements of you and your guests. Bose professional sound systems also feature simple operation and elegant design to blend with the décor of your properties.

The Bose® Panaray® MA12 is a mid/high-frequency modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor.

The Bose® Panaray® MA12EX is a full-range modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor. The "EX" version adds an Articulated Array® design to provide wider 160° horizontal coverage and weather-resistant components to allow outdoor applications.

The Bose® FreeSpace® DXA 2120 digital mixer/amplifier features a 6-in by 2-out design that provides signal processing, mixing, routing, paging and two-channel amplification for installed applications. It offers three versatile operating modes and is easily configured using the controls on the front panel. No external computer is required.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Bose® Panaray® MA12 Mid/High Modular Line Array:

Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full range reinforcement
Optional brackets allow easy installation of single-, double- or triple stack line array modules

Bose® Panaray® MA12EX Full-Range Modular Line Array:

Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
Optional brackets allow easy installation of single-, double- or triple stack line array modules

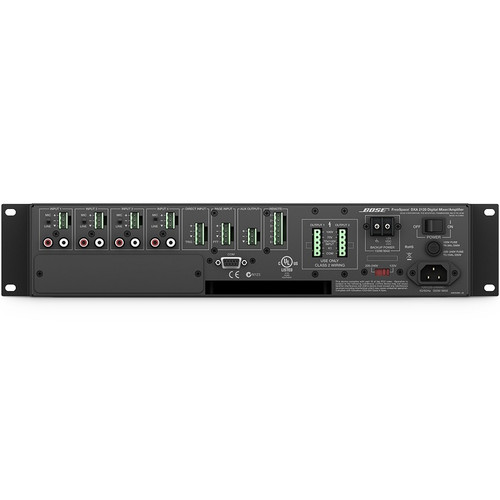

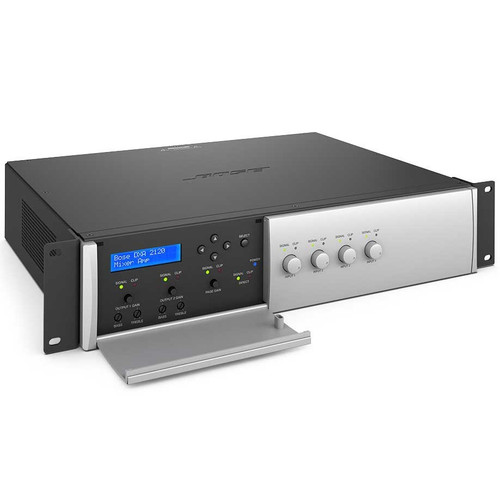

Bose® FreeSpace® DXA 2120 Digital Mixer/ Amplifier:

Six inputs: four mic/line inputs with choice of balanced Euroblock or unbalanced RCA connectors, one page input and one direct input
Two powered outputs that can operate at high or low impedance: 2 x 120 W at 4 ohms , 2 x 65 W at 8 ohms, or 2 x 100 W at 70/100V
Three operating modes for greater flexibility in installed music or speech applications: Mixer Mode, Dual Mono Select Mode, and Stereo Select Mode
Easy setup and control via onboard controls – no computer needed
DSP includes loudspeaker EQs and dynamic EQ functions engineered specifically for Bose loudspeakers
Opti-voice® paging provides a smooth transition between music and announcements
24-volt DC backup power connection for added reliability and integration onto fire and evacuation systems

System Includes

Bose® Panaray® MA12 Mid/High Modular Line Array
Bose® Panaray® MA12EX Full-Range Modular Line Array
Bose® FreeSpace® DXA 2120 Digital Mixer/ Amplifier
