Spend less time setting up your gear and more time enjoying it. The new L1 Model 1S portable line array system delivers a potent combination of portability and performance. It's compact and light enough to make setup quick and easy, yet powerful enough to fill a mid-sized venue. This system works well for solo musicians, bands and public speakers. And the ToneMatch audio engine provides a suite of studio-class effects and tone-shaping tools to give you just the sound you're looking for. Includes one B1 bass module for enhanced low-end performance.
Put Your PA Behind You
The vertical configuration of the system's small, closely spaced drivers allows the L1 Model 1S system to project sound forward and to the sides—delivering 180-degree coverage—but very little up and down, reducing unwanted reverberation. This produces consistent tonal balance as sound spreads more evenly across the stage and into the audience, and the volume level drops off much more slowly than with a conventional speaker.
Unique Bose® technologies enable the system to serve as both PA and monitor. It can be positioned behind or to the side of the performer—and you hear just what the audience hears. You're in control, and there's no need for conventional monitors, mixers and PA systems.
Convenience to Go

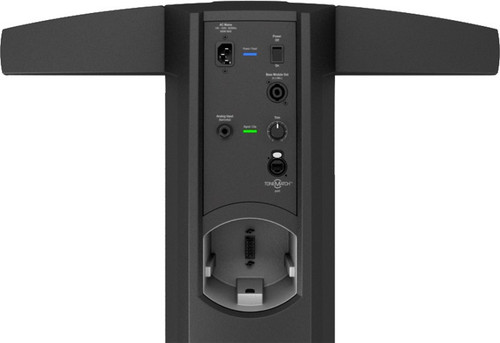

The three components of the L1 Model 1S system—upper array, lower extension and power stand—connect quickly and easily without the need for separate speaker stands. Setup and breakdown take just minutes. And everything stores neatly into the included carry bags, making transport easy too.

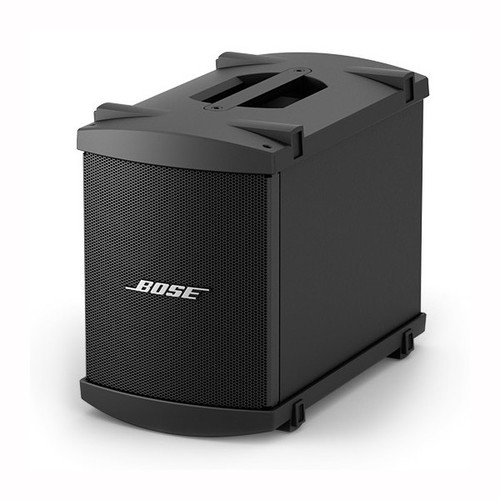

Deep Bass from Small Enclosures
The B1 bass module is our more portable bass option. It is considerably lighter and smaller than conventional bass bins required for the same performance. And it ensures more accurate amplification of lower notes for most voices and instruments.
With the L1 Model 1S system you can add a second B1 module or power one B2 bass module for more flexibility and even greater power.
Powerful Multi-channel Audio Engine
Combining the T1 ToneMatch audio engine with your L1 system expands your options to connect additional instruments and microphones. You can also use the ToneMatch engine to fine-tune your sound with powerful, proprietary tone-shaping tools.
The compact, four-channel engine provides fingertip control of a library of ToneMatch presets. Just touch a button to make hundreds of precise refinements to the sound of instruments and microphones. The engine also features a complete suite of studio-class reverbs, additional effects and dynamics processing. It connects to the L1 Model 1S system via a single digital cable for quick, streamlined setup.
L1 Model 1S System:
B1 Bass Module:
T1 ToneMatch Audio Engine:
| L1 Model 1S System | |
|---|---|
| System Type | Self powered, two-way |
| Frequency Response (+/-3 dB) | 40 Hz - 12 kHz |
| Frequency Range (-10 dB) | 32 Hz - 14 kHz |
| Nominal Dispersion | 195° H x 10° V |
| Maximum SPL @ 1 m | 112 dB SPL (118 dB SPL peak) |
| Crossover Frequency | 200 Hz (24 dB / octave) |
| Dimensions | |
| Top Array (H x W x D) | 43.5" (111 cm) x 3.5" (9 cm) x 4" (10.5 cm) |
| Bottom Extenstion (H x W x D) | 39.63" (100.6 cm) x 4.15" (10.6 cm) x 4.13" (10.5 cm) |
| Power Stand (H x W x D) | 5" (12.8 cm) x 10" (26.2 cm) x 27" (69.2 cm) |
| Weight | |
| Top Array | 23.7 lbs (10.7 kg) |
| Bottom Extension | 8.5 lbs (3.8 kg) |
| Power Stand | 23.7 lbs (10.7 kg) |
| B1 Bass Module | |
| Impedance | 8 Ohms |
| Driver | Two 5.25" (13.3 cm) |
| Dimensions (H x W x D) | 15" (38 cm) x 10.25" (26 cm) x 17.75" (45 cm) |
| Weight | 25.1 lbs (11.4 kg) |
| T1 ToneMatch Audio Engine | |
| A/D and D/A conversion | 24 bits |
| Sampling Rate | 48kHz |
| USB | 1.1 protocol, Type A to Type B cable |
| PC Requirements | Microsoft Windows 2000, 2000 Pro, XP |
| Dimensions (H x W x D) | 2.67" (6.76 cm) x 6.5" (16.6 cm) x 8.25" (20.9 cm) |
| Weight | 2.14 lbs (0.97 kg) |
| Total System Weight | 83.14 lbs (37.71 kg) |
