Bose L1 Model 1S System with B1 Bass (Discontinued)
Usually arrives in 5-9 business days.
The Bose L1 Model 1S system is a line array system that combines the portability of our L1 Compact system with the performance of our L1 Model II, delivering 180° coverage for up to 300 people.

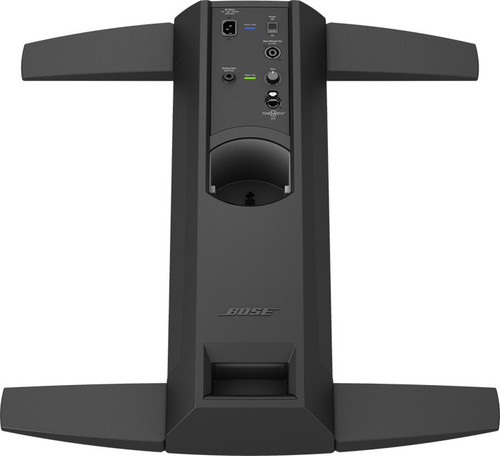

The lightweight power stand features a 1/4" analog input, digital ToneMatch port and built-in amplification designed to power the line array and required bass module. Like its predecessors, its components meet the demands of DJs, solo performers and bands with several members. Proprietary technology enables it to serve as both a PA and monitor. This allows the L1 Model 1S system to be placed behind musicians during their performances. Two systems have enough ports and connections to satisfy the needs of an entire band. Users have the flexibility to select the B1 bass module for greater portability. The L1 Model 1S system sets up in minutes without the need for speaker stands and can be easily packed into three included carry bags.
The Bose B2 bass module is a high-performance bass module designed for the Bose L1 Model 1S and Model II systems. It delivers the most low-frequency output for those L1 system users who require more powerful bass for larger audiences. It includes a rear-panel switch with three output settings, each of which is automatically sensed and equalized by the L1 system for optimized performance.

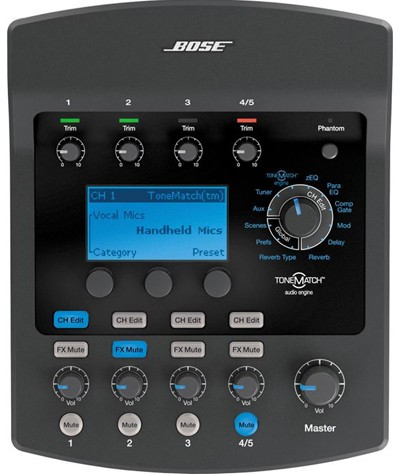

The new T1 ToneMatch audio engine features advanced tone-shaping technologies available only from Bose. Customized ToneMatch presets instantly bring you closer to the true sound of your voice or instrument, and proprietary zEQ takes the guesswork out of fine-tuning your tone.
With these advanced ToneMatch technologies, the high level of tone customization most musicians experience only in a recording studio is now available on stage at your live performances. Add a complete suite of studio class effects and processing, and the T1 ToneMatch audio engine makes it easier than ever to dial in your signature sound.
| L1 Model 1S System | |
|---|---|
| System Type | Self powered, two-way |
| Frequency Response (+/-3 dB) | 40 Hz - 12 kHz |
| Frequency Range (-10 dB) | 32 Hz - 14 kHz |
| Nominal Dispersion | 195° H x 10° V |
| Maximum SPL @ 1m | 112 dB SPL (118 dB SPL peak) |
| Crossover Frequency | 200 Hz (24 dB / octave) |
| Top Array Dimensions (H x W x D) | 43.5" (1105 mm) x 3.5" (88.9 mm) x 4" (101.6 mm) |
| Top Array Weight | 16.3 lbs (7.4 kg) |
| Bottom Extension Dimensions (H x W x D) | 39.63" (1007 mm) x 4.15" (105.4 mm) x 4.13" (105 mm) |
| Bottom Extension Weight | 8.5 lbs (3.8 kg) |
| Power Stand Dimensions (H x W x D) | 5" (127 mm) x 10" (254 mm) x 27" (685.8 mm) |
| Power Stand Weight | 23.7 lbs (10.7 kg) |
| B2 Bass Module | |
| Impedance | 4Ω |
| Dimensions (H x W x D) | 23.4" (594 mm) x 13.31" (338 mm) x 18.9" (480 mm) |
| Weight | 25.1 lbs (11.39 kg) |
| T1 ToneMatch Audio Engine | |
| A/D and D/A conversion | 24 bits |
| Sampling Rate | 48 kHz |
| USB | 1.1 protocol, Type A to Type B cable |
| PC Requirements | Microsoft Windows 2000, 2000 Pro, XP |
| Dimensions (H x W x D) | 2.67" (67.8 mm) x 6.5" (165 mm) x 8.25" (210 mm) |
| Weight | 2.1 lbs (0.95 kg) |
| Total System Weight | 96 lbs (43.54 kg) |
