A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency. It offers a wide horizontal sound coverage of 180 degrees, which means everyone in the audience hears virtually the same thing, no matter where they're seated in small-to-medium sized clubs, bars, and other venues.
An integrated subwoofer with a unique RaceTrack driver design gives you powerful bass, has an optimized center of gravity, and saves a lot of space. This slim 10" x 18" driver gives you performance that rivals a conventional 15" woofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between - home to car, vehicle to venue - much easier.
Each L1 Pro portable pa system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4" phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, plus Bluetooth® streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via dedicated ToneMatch port - one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional).

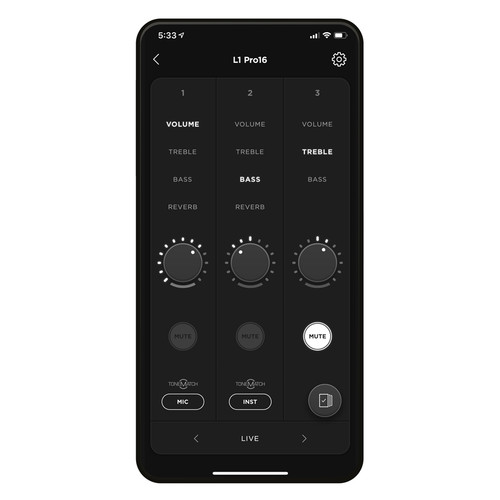

And with the intuitive L1 Mix app, you get complete wireless mixer control from your smartphone too...
With the L1 Mix app, you can adjust mixer settings instantly from your phone or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match - the mixer and app are always in sync, in real time. Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.
Premium sound onstage. Practical portability everywhere else. With an L1 Pro16, you can get from parking to performing with ease and from setup to setlist in minutes. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity - the power to sound your best and simply perform.
| Speaker Configuration | 16 x Full-Range Speaker Column with Subwoofer |
|---|---|
| Full-Range Driver | 16 x 2" / 50.8 mm Cone |
| Subwoofer Driver | 1 x 18 x 10" / 457.2 x 254 mm Woofer |
| Magnet | Neodymium |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | Speakers: 1 x 250W Subwoofer: 1 x 1000W |
| Amplifier Class | Class-D |
| Frequency Response | 42 Hz to 20 kHz |
| Low Frequency (-3 dB) | 42 Hz |
| Max SPL | 118 dB cont., 124 dB peak |
| Coverage | 180° H x 0° to -30° V |
| Bass | The L1 Pro16 has an integrated 10" x 18" high-excursion neodymium RaceTrack woofer; performance that rivals a conventional 15" woofer with a smaller footprint |
| Software | L1 Mix App |
| Features | Built-In Mixer ToneMatch Selector 2 x Combo XLR-¼" Phantom-Powered Inputs 1 x ¼" Aux Input 1 x 1/8" (3.5 mm) Aux Input 1 x XLR Line Output 1 x ToneMatch Port System EQ 1 x Power Switch Bluetooth® Streaming |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Transport Option | 1 x Handle (Top) |
| Dimensions (H x W x D) | 79.2" (2011.68 mm) x 18" (457.2 mm) x 14" (355.6 mm) |
| Weight | 54.8 lbs (24.9 kg) |
