Bose T4S ToneMatch 4-Channel Ultra-Compact Mixer Interface
Usually arrives in 5-9 business days.
You found the sweet spot
A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency. It offers a wide horizontal sound coverage of 180 degrees, which means everyone in the audience hears virtually the same thing, no matter where they're seated in small-to-medium sized clubs, bars, and other venues.
Bass without the bulk
An integrated subwoofer with a unique RaceTrack driver design gives you powerful bass, has an optimized center of gravity, and saves a lot of space. This slim 10" x 18" driver gives you performance that rivals a conventional 15" woofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between - home to car, vehicle to venue - much easier.
Mixer onboard... and on your phone

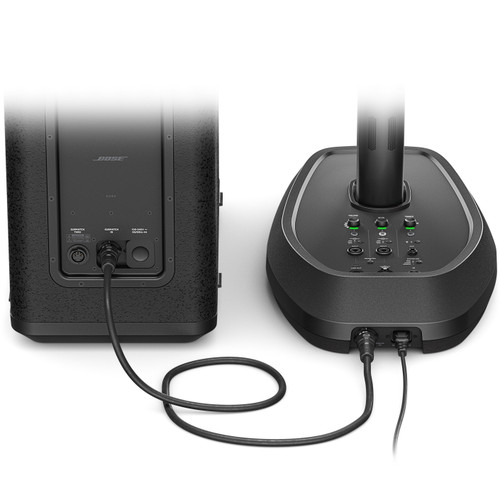

Each L1 Pro portable pa system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4" phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, plus Bluetooth® streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via dedicated ToneMatch port - one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional).
And with the intuitive L1 Mix app, you get complete wireless mixer control from your smartphone too...
Intuitive and instant wireless control
With the L1 Mix app, you can adjust mixer settings instantly from your phone or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match - the mixer and app are always in sync, in real time. Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.
All for that moment
Premium sound onstage. Practical portability everywhere else. With an L1 Pro16, you can get from parking to performing with ease and from setup to setlist in minutes. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity - the power to sound your best and simply perform.
Bose L1 Pro32 Portable Line Array System:
Bose Sub2 Powered Subwoofer with 10" x 18" RaceTrack Driver:
| L1 Pro32 | |
|---|---|
| Speaker Configuration | 32 x Full-Range Speaker Column |
| Full-Range Driver | 32 x 2" / 50.8 mm Cone |
| Magnet | Neodymium |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | Speakers: 1 x 480W |
| Amplifier Class | Class-D |
| EQ | HF Shelf; LF Shelf |
| Effects | Reverb |
| Software | L1 Mix App |
| Frequency Response | 40 Hz to 20 kHz |
| Coverage Angle | 180° H x 0° V |

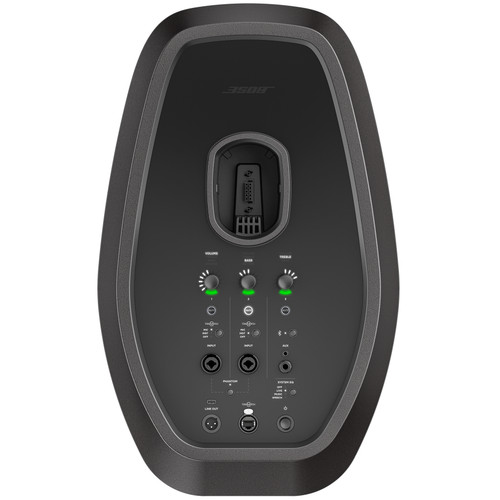

| Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1 x 1/4" TRS Female Unbalanced Line Input 1 x 1/4" TRS Female Balanced Line Output 1 x XLR 3-Pin Male Balanced Line Output |
| Phantom Power | +48 V |
| Wireless Connectivity | Bluetooth |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Dimensions (H x W x D) | 84.1" (2136.14 mm) x 21.7" (551.18 mm) x 13.6" (345.44 mm) |
| Weight | 28.6 lbs (13 kg) |

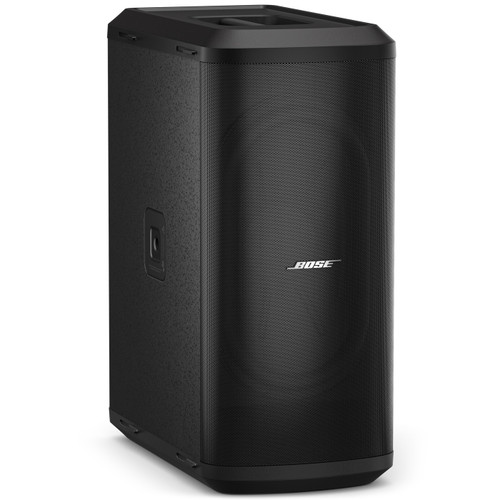

| Sub2 Powered Bass Module | |
| Configuration | Active Subwoofer |
| Enclosure Type | Bass-Reflex Line Array Subwoofer |
| Amplifier Power Rating | 1000W |
| Amplifier Class | Class-D |
| LF Driver | 18 x 10" / 457.2 x 254 mm Woofer |

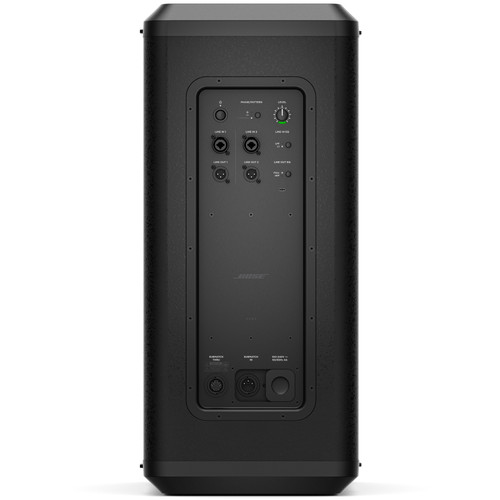

| Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced Line Input 2 x XLR 3-Pin Male Balanced Line Output 1 x Proprietary Subwoofer Input 1 x Proprietary 3-Pin Subwoofer Thru |
| Wireless Connectivity | Bluetooth |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Mounting | 1 x M20 Pole Socket (Side) |
| Handles | 1 x Top |
| Dimensions (H x W x D) | 27.2" (690.88 mm) x 12" (304.8 mm) x 21.7" (551.18 mm) |
| Weight | 51.7 (23.4 kg) |
