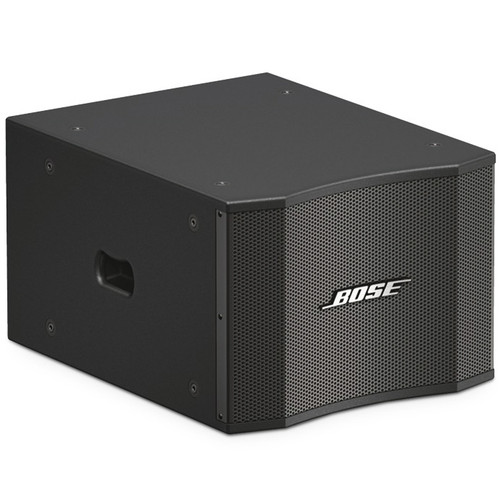

The Bose MB12 WR low-frequency loudspeakers are designed to provide bass augmentation for Bose LT arrays and other subwoofer applications. The compact 1 x 12" (305 mm) configuration allows minimal-height arrays when used with LT mid/high loudspeakers. Bose Modeler ® tools and optional rigging hardware make directional bass arrays easy to design and install using MB12 loudspeakers.
The enclosure is constructed of void-free, exterior grade Baltic birch plywood with extensive internal bracing. The enclosure interior has been treated with wood sealer and the exterior finished with a two-part spray polyurethane coating to resist weather elements and scuffing. The enclosure is covered by a 16-gauge perforated stainless steel grille with powder-coated finish and backed with an open-cell foam. The loudspeaker can survive water incursion consistent with the IEC 529 IPX5 rating. The enclosure has sixteen (16) stainless steel threaded inserts (4 each: top, bottom, sides) that accept standard SAE 3/8"-16 rigging hardware.
Applications:
MB12 WR for indoor and outdoor applications
| Frequency Response | 40 Hz - 280 Hz (+/-3 dB) |
|---|---|
| Frequency Range | 36 Hz - 290 Hz (-10 dB) |
| Nominal Dispersion | Omni-directional below 200 Hz |
| Sensitivity | 91 dB SPL (SPL / 1 W @ 1 m) |
| Maximum SPL @ 1 m | 117 dB SPL (123 dB SPL peak) |
| Crossover Frequency | None (external DSP crossover required) |
| Recommended High-Pass Filter | 30 Hz (24 dB / octave) |
| Loudspeaker EQ | Required |
| Long-Term Power Handling | 400W (1600W peak) |
| Nominal Impedance | 8 Ω |
| Transducers | LF: 12" (305 mm) woofer with 4" (102 mm) voice-coil |
| Enclosure | Exterior grade Baltic birch plywood, 13-ply, 18 mm |
| Finish | Two part spray polyurethane coating, black |
| Grille | 16-gauge perforated stainless steel grille with powder-coated finish and backed with an open-cell foam |
| Environmental | Outdoor per IEC 529 IPX5 |
| Connectors | (2) parallel-wired NL4 Neutrik® Speakon® connectors |
| Suspension/Mounting | Sixteen (16) points SAE 3/8" - 16 threaded inserts (4 each, top, bottom and sides), stainless stee |
| Dimensions (H x W x D) | 14.7" (374 mm) x 20" (508 mm) x 25.4" (646 mm) |
| Net Weight | 78 lbs (35.4 kg) |
| Shipping Weight | 92 lbs (41.6 kg) |
