The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

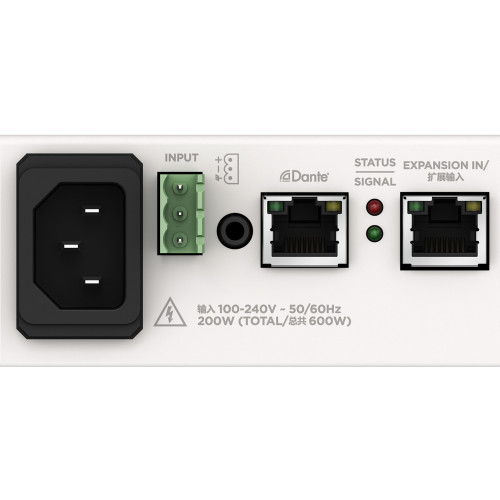

The MSA12X model includes 12 internal power amplifiers (50 watts per channel; total 600-watt rated power) and onboard DSP to allow digital control and beam steering of array vertical coverage patterns. Proprietary Articulated Array configuration allows wide, 160-degree horizontal coverage. Independent level and EQ control is supported for two separate beams per array, and onboard memory stores up to 10 user-selectable presets. The MSA12X features both Dante™ network connectivity and line-level analog input.
The modular design allows up to three MSA12X units to be vertically arrayed to increase coverage distance and low-frequency pattern control. The slim, low-profile elegant enclosure mounts close to surfaces, blending in with the visual aesthetic of a space, and its digital control eliminates protruding pitch brackets. The MSA12X is available in either black or white finish and is paintable.
Designed for use in houses of worship, auditoriums, museums, transportation facilities, lecture halls, conference facilities and theatres.
