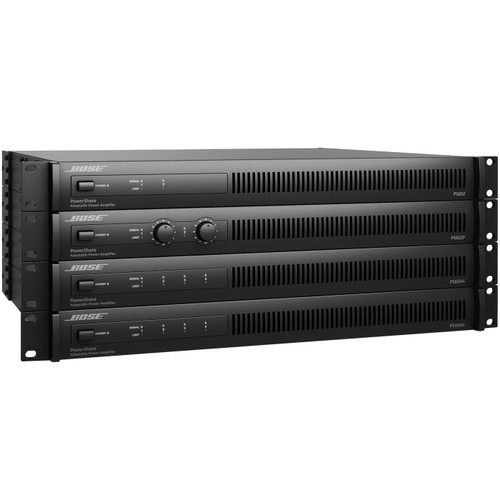

Bose Professional PowerShare PS604A Adaptable Power Amplifier with AmpLink (Discontinued)
Bose Professional PowerShare PS604A Adaptable Power Amplifier with AmpLink (Discontinued)
Bose Professional PowerShare PS604A Adaptable Power Amplifier with AmpLink (Discontinued)
Bose Professional PowerShare PS604A Adaptable Power Amplifier with AmpLink (Discontinued)
By Bose Professional

Bose Professional PowerShare PS604A Adaptable Power Amplifier with AmpLink (Discontinued)

Write a Review
Part #:
791324-1410
Model #:
PowerShare PS604A
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Bose PowerShare PS604A adaptable power amplifier delivers 600 watts for fixed-install applications. Through patented technology, total amplifier power is shared across all output channels, allowing installers the freedom to utilize power where needed.

Description

Bose PowerShare PS604A Adaptable Power Amplifier with AmpLink

The Bose PowerShare PS604A adaptable power amplifier delivers 600 watts for fixed-install applications. Through patented technology, total amplifier power is shared across all output channels, allowing installers the freedom to utilize power where needed. With support for both low- and high-impedance loads up to 100V, PowerShare amplifiers adapt to a wide range of applications. Onboard configurable loudspeaker processing and direct access to zone controllers eliminate the need for an additional signal processor in many installations, while outstanding audio performance and reliability are assured with patented technologies inherited from the field-proven PowerMatch® line. With the inclusion of AmpLink, up to 24 digital audio channels can be sent to the amp from a Bose DSP via a shielded CAT 5 cable. This unique set of features and technologies makes PowerShare one of the most versatile high-performance amplifiers available.

Applications:

  • Performing arts venues
  • Houses of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Features
  • PowerShare Technology – Patented PowerShare technology allows the total 600 watts of power to be shared asymmetrically across all outputs, as each output is capable of delivering full power. Instead of selecting amplifier power based on the needs of the largest zone, installers now have the freedom to use total amplifier power in the application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
  • Load-Independent Outputs – Each channel can be configured for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging, use of jumpers, or software settings.
  • DFL™ System – The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch® amplifier line, improves performance and reliability through continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion while protecting loudspeakers.
  • Integrated Loudspeaker Processing with Optional PowerShare Editor Configuration – For applications requiring additional signal processing the PowerShare Editor Software offers real-time selection and control of Bose loudspeaker EQs, 9-band PEQs, matrix mixing, crossover, delay, and mute/output polarity through a USB connection. For basic setups without a PC, rear-panel settings allow installers to recall Bose loudspeaker equalization and protection per output channel. These features eliminate the need for an external signal processor in many applications.
  • AmpLink – Transports up to 24 uncompressed, near zero latency, digital audio channels between Bose DSPs and the PowerShare PS604A via shielded CAT 5 cable. The amp also supports a THRU path for daisychaining up to 8 other Bose AmpLink amplifiers, at a distance of up to 10 m between products. Any combination of AmpLink amplifiers can be daisychained.
  • ControlCenter Zone Controller Accessories – Bose ControlCenter CC-1 zone controllers can be directly attached for remote adjustment of amplifier outputs, further extending stand-alone amplifier applications.
  • Auto-Standby – Designed to save power consumption when not in use. PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.

Specifications
Amplifier Power 4 x 150 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
Maximum Power per Channel 600 W @ 4-8 Ω, 70/100V
Gain (Low-Z mode) 32.0 dB
Gain (70V mode) 35.0 dB
Gain (100V mode) 38.0 dB
Frequency Response 4-8 Ω: 20 Hz – 20 kHz (+/- 0.5 dB @ 1 W); 70/100V: Same as 4-8 Ω with 50 Hz high-pass filter
Channel Separation (Crosstalk) > 85 dB @ 1 kHz, > 65 dB @ 20 kHz
Signal to Noise Ratio 100 dB (at rated power, A-weighted)
Input Channels Analog: 4 balanced
AmpLink: 24 digital
Connectors Analog: 12-pin Euroblock
AmpLink: RJ-45 (input)
Input Impedance Analog: 20 kΩ
Maximum Input Level Analog: 20 dBu (at 12 dBu sensitivity setting)
Sensitivity Analog: 4 / 12 dBu (low / high sensitivity)
Outputs Analog: 4
AmpLink: 24 digital
Connectors Analog: 8-pin inverted Euroblock
AmpLink: RJ-45 (thru)
Power LED Solid green: Power is on
Blinking green: Unit is in standby mode
Solid amber: Thermal fault
Solid red: Supply fault
Input Signal LED Green: Signal present
Amber: Input is near clipping
Red: Input is clipping
Solid red: Indicates a fault
Output Limit LED Amber: Amplifier limiting an output
Blinking red: Amplifier muted
Solid red: Indicates a fault
Controls, Front Panel Power On/Of
Controls, Rear Panel Amplifier mode DIP switches, loudspeaker EQ dials, input select dial, output attenuators
Mains Voltage 100 VAC – 240 VAC (±10%, 50/60 Hz)
AC Power Consumption 120 VAC: 14 W (Standby), 700 W (Max) / 230 VAC: 14 W (Standby), 700 W (Max)
Mains Connector Standard IEC (C14)
Maximum Inrush Current 14.14 A (230 VAC / 50 Hz), 8.04 A (120 VAC / 60 Hz)
Protections High temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage
Inputs (Control) RJ-45 remote input for volume control using the CC-1 ControlCenter zone controllers, or for connection to the CV41
Micro-USB input for configuring the amplifier with PowerShare Editor software
Mute input control
Cooling System Microprocessor controlled, variable speed fans, left to right air flow
Dimensions (H x W x D) 1.7" (44 mm) x 19" (483 mm) x 16.3" (414 mm)
Weight 14.1 lbs (6.4 kg)
Shipping Weight 17.2 lbs (7.8 kg)
