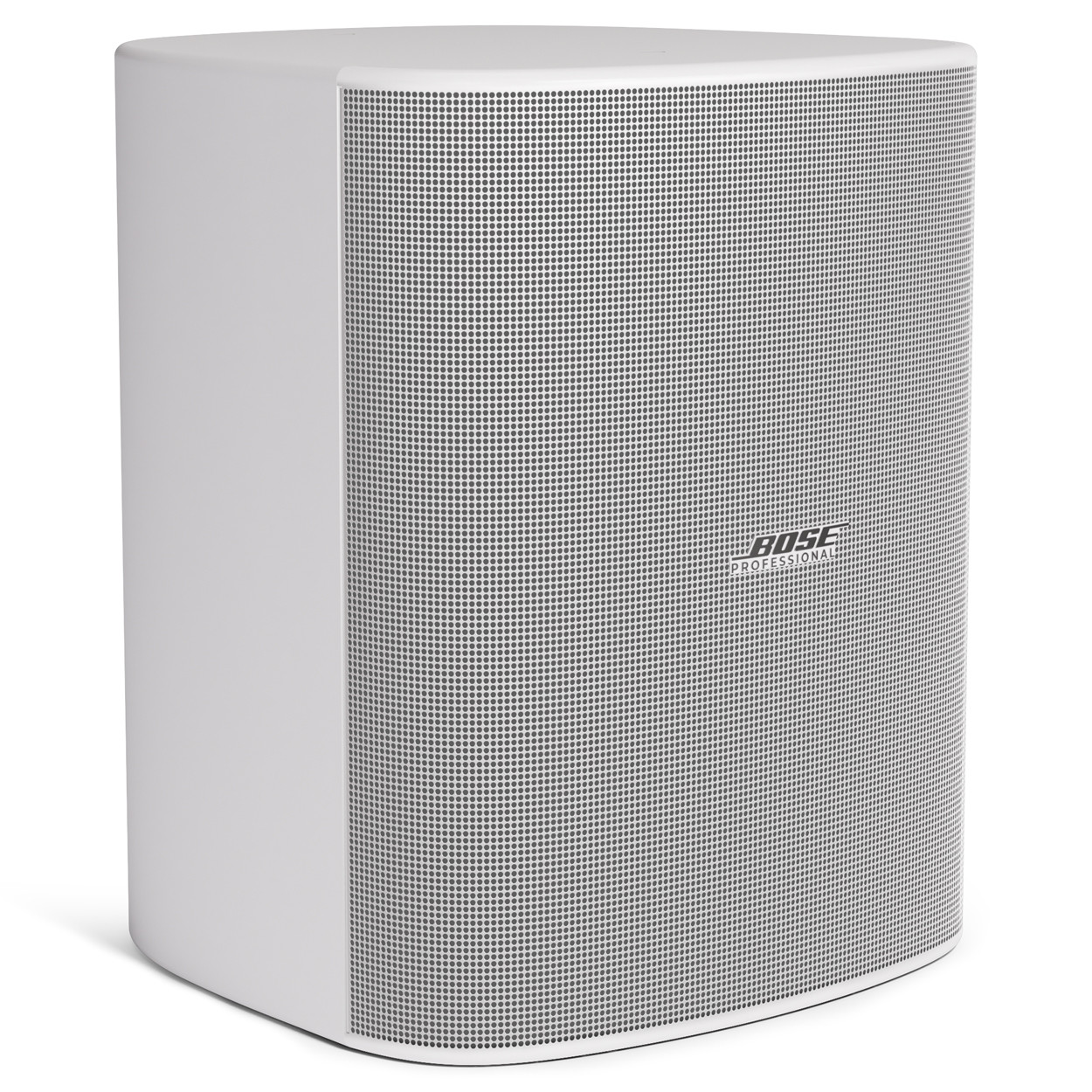

Bose Professional DesignMax DM12SE 12-inch Coaxial Surface-Mount Loudspeaker

Bose Professional DesignMax DM12SE 12" Indoor/Outdoor Surface Mount Loudspeaker with 1.4" Compression Driver 300W - White

Bose Professional DesignMax DM12SE 12" Indoor/Outdoor Surface Mount Loudspeaker with 1.4" Compression Driver 300W - White

Name: Bose Professional DesignMax DM12SE 12" Indoor/Outdoor Surface Mount Loudspeaker with 1.4" Compression Driver 300W - White
Brand: Bose Professional
SKU: BOSE-A01114-0200
Price: 859 USD
Availability: InStock

Write a Review

Part #:

A01114-0200

Model #:

DM12SE

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Bose Professional DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.

Description

Bose Professional DesignMax DM12SE 12" Coaxial Surface-Mount Loudspeaker

The DesignMax DM12SE is a powerful addition to the Bose Professional portfolio—a compact, weatherized 12-inch coaxial loudspeaker that delivers full-range sound with punchy bass, consistent 102° conical coverage, and impressive output for performance venues, retail stores, hospitality spaces, and houses of worship. The sleek form factor blends cleanly into any environment, while the coaxial design ensures smooth phase response and uniform coverage. Installers will appreciate the rugged, outdoor-ready pan/tilt bracket for precise aiming, and end users will love the clarity and low-end impact. With its flexible design, indoor/outdoor durability, and multiple mounting options, DesignMax DM12SE adapts to a wide range of spaces and system needs. Factory-optimized tunings for Bose Professional amplifiers and processors ensure exceptional performance out of the box.

Features

Deliver clear, full-range sound with a 12-inch coaxial transducer — provides consistent 102° conical coverage for even audio distribution
Ensure reliable indoor and outdoor performance — weatherized, injection-molded enclosure built for durability in demanding environments
Produce powerful low-end performance — deep bass response down to 38 Hz for rich, impactful sound
Maintain consistent audio clarity throughout the space — coaxial point-source design delivers uniform coverage and intelligibility

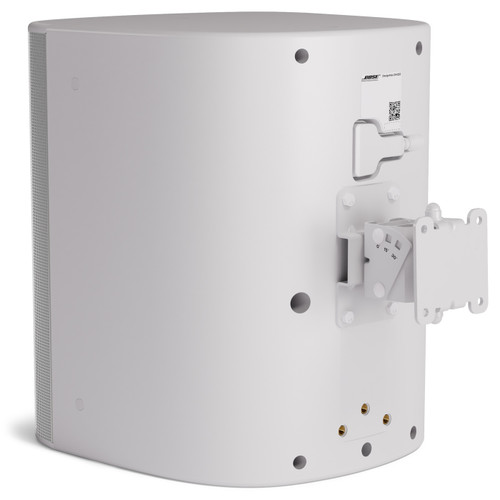

Simplify installation and aiming — rugged outdoor-ready pan/tilt bracket allows fast installs, precise positioning, and long-term reliability
Optimize system performance — factory-tuned for use with Bose Professional amplifiers and processors
Match a variety of installation aesthetics — available in black or white finishes to complement the sleek DesignMax look

Specifications

Frequency Response (-3 dB)	117 Hz – 20,000 Hz
Frequency Range (-10 dB)	38 Hz – 20,000 Hz
Nominal Coverage (500 Hz – 8 kHz)	102° conical
Power Handling, Long-term Continuous	Bose Extended-Lifecycle Test: 200W AES Component Test: 300W
Power Handling, Peak	Bose Extended-Lifecycle Test: 800W AES Component Test: 1200W
Sensitivity (SPL / 1 W @ 1 m)	Bose Extended-Lifecycle Test: 94 dB AES Component Test: 94 dB
Calculated Maximum SPL @ 1 m, Continuous	Bose Extended-Lifecycle Test: 117 dB AES Component Test: 119 dB
Calculated Maximum SPL @ 1 m, Peak	Bose Extended-Lifecycle Test: 123 dB AES Component Test: 125 dB
Loudspeaker EQ	Not required. Bose Professional EQ voicing and SmartBass™ available
Recommended High-pass Protection	40 Hz with minimum 12-dB/octave filter
Low Frequency	1 x 12" (305 mm) woofer, weather-treated
High Frequency	1 x 1.4" (36 mm) compression driver 1" (25 mm) exit, coaxial center-firing, weather-treated
Nominal Impedance	8Ω
Enclosure Material	Engineered plastics, injection-molded, UV fade-resistant
Grille	Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Color	White (similar to RAL 9003), paintable
Environmental	Outdoors (IP55) or indoors
Certifications / Compliance	ETL & cETL certifcation under UL 1480A & CSA 22.2 No. 205-17, NFPA 70 & NFPA 90A, CE-compliant
Operating Temperature Range	-25 °C to 70 °C (-13 °F to 158 °F)
Connectors	4-pin Euroblock connector, mounted on rear panel Accepts 18 AWG – 14 AWG (0.8 mm – 2.1 mm) wire. Includes input cover
Suspension / Mounting	(2) M8 threaded inserts (top panel) (2) M8 threaded inserts (side panel) (6) M8 threaded inserts (rear panel, for surface-mount pan-and-tilt bracket, high & middle mounting locations) (2) M8 threaded inserts (rear panel, for pullback cable or safety cable)
Package Contents	(1) DesignMax DM12SE, (1) Pan-and-tilt bracket with mounting hardware, (1) Input panel cover, (1) Installation guide
Dimensions (H x W x D)	16" (407 mm) x 16" (406 mm) x 19.1" (485 mm)
Net Weight	37.4 lbs (16.9 kg)

DOCUMENTS

In The Box

(1) DesignMax DM12SE
(1) Input Panel Cover
(1) Installation Guide
(1) Surface-Mount Pan and Tilt Bracket
