BSS Audio FCS-960 30 Band Dual Mode Graphic Equalizer (Discontinued)
By BSS Audio

BSS Audio FCS-960 30 Band Dual Mode Graphic Equalizer (Discontinued)

Write a Review
Part #:
FCS-960
Model #:
FCS-960
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The FCS-960 is a 30-band graphic equaliser featuring Dual Mode switching between Normal and Fine filter width settings on each channel. The FCS-960 provides two channels in 3U of rack space.

Description
The FCS-960 is a 30-band graphic equaliser featuring Dual Mode switching between Normal and Fine filter width settings on each channel.

The FCS-960 provides two channels in 3U of rack space. Constant Q-filters with filter-bypass centre taps are controlled by high grade, 45mm faders with moulded polymer fader knobs which eliminate visual parallax error even under low light conditions.

Also included are sweepable, switchable Hi-pass filter, Gain control and electronic balanced inputs and outputs.

Features
  • Long 45mm fader travel for precise adjustment and control
  • Centre detented fader with electrical centre tap for true 0dB setting
  • Advanced constant Q filter topology for improved accuracy at all fader settings and excellent sonic transparency
  • Selectable normal or fine filter response
  • Continuously variable high pass filter, with by-pass switch
  • Gain control for system loudness normalisation
  • Peak clip LED to give advance warning of signal overload
  • Channel bypass selection and power fail bypass by relays
  • Electronically balanced inputs and outputs
  • Proprietary design fader knob provides positive feel with ample finger room, virtually eliminates visual parallax errors
  • Optional internal input and output transformer balancing

Specifications
Input Section 10kΩ electronically balanced, +20dBumaximum input level via XLR3-31 orequivalent
Output Section Electronically balanced and floating,capable of driving +20dBu into 600Ω orgreater via XLR3
Frequency Response ±0.25dB from 20Hz to 20kHz
THD at +4dBu (faders flat)
Output noise (faders flat)
Channel separation >80dB from 22Hz to 22kHz
Gain control range ±10dB
Peak Indicator +18dBu
Type MFB Constant Q
Frequencies, per channel 30 off on 1/3 octave ISO centres25Hz to 20kHz
Boost/cut Range Nominal ±10dB
Mode Selectable normal or fine response
High Pass Filter 18dB/Oct Butterworth sweepable 20Hzto 250Hz
Voltage 30VA 50-60Hz, 90-120Vac or 190-250Vacselectable externally, 2m power cord connected via IEC socket
Dimensions 19" x 5.25" x 8.9" (482mm x 132mm x 227mm)
Weight 9.5 lbs (4.3kg)

Related Products

Sold Out
BSS Audio FCS-966 30 Band Graphic Equalizer (Discontinued)

BSS Audio FCS-966 30 Band Graphic Equalizer (Discontinued)

Graphic equalisers are found in just about every sound application, from room contouring to feedback control and general audio sweetening. Traditionally, much general eq'ing takes place on the...
$1,368.46

Usually arrives in 5-9 business days.

$1,368.46
Sold Out
Ashly Audio MQX-2310 Dual Channel 31 Band Graphic Equalizer (Discontinued) Ashly Audio MQX-2310 Dual Channel 31 Band Graphic Equalizer (Discontinued)

Ashly Audio MQX-2310 Dual Channel 31 Band Graphic Equalizer (Discontinued)

The MQX- 2310 uses the same precision filter design and summing circuitry as the GQX Series, with each filter exhibiting true Constant "Q" response. The center-detented position of each fader acts...
MSRP: $525.00
$399.00

Usually arrives in 5-9 business days.

MSRP: $525.00
$399.00
Sold Out
DBX 2231V Dual 31-Band Graphic Equalizer (Discontinued) DBX 2231V Dual 31-Band Graphic Equalizer (Discontinued)

DBX 2231V Dual 31-Band Graphic Equalizer (Discontinued)

With a prestigious heritage extending back to our heralded 30 Series equalizers, the dbx 2231 easily lives up to the reverred dbx reputation. Besides including two 31-band channels of 1/3-octave...
MSRP: $710.78
$569.00

Usually arrives in 5-9 business days.

MSRP: $710.78
$569.00
Sold Out

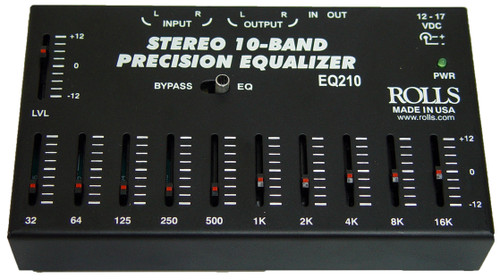

Rolls EQ210 10-Band Graphic Equalizer (Discontinued)
