CAD Audio WX1210LAV Wireless Lavalier Microphone System (Discontinued)

Part #:
WX1210LAV
Model #:
WX1210LAV
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The CAD Audio WX1210LAV Wireless Lavalier Microphone System features frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. The 16 Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range.

Description

The StagePass StagePass WX1210 Lavalier Series provides you an easy and exciting performance for your next gig. CAD Audio/Astatic Commercial has been creating high-value products since 1938 and prides itself on supporting and developing the live performer. Our design criterion was straightforward: develop a high-performance wireless microphone system agile enough to cope with today’s dynamic RF environment that is both easy to use and exciting to operate.

The StagePass WX1210 Lavalier Series Wireless Systems feature frequency agile diversity reception for outstanding connectivity, minimizing multipath interference. 16 Channel Agility for frequency plan flexibility and VHF Channelization provides increased operating range. Scan-Link technology provides instantaneous and automatic channel configuration (First, the receiver conducts an environmental frequency evaluation then selects a channel. Second, the receiver links to the transmitter and sets the transmit frequency automatically). Double AA batteries supply >10hrs of battery life. Transmitters have soft touch On & Mute switches with multi-color LED indicators to monitor mute status and battery life. Metal Chassis provide a durable and formidable shielded enclosure. The WX1210 receiver offers ¼” and XLR outputs for maximum flexibility.

Features

  • VHF Channelization for increased operating range.
  • Diversity Operation to minimize multipath interference.
  • 16 Channel Agility for frequency plan flexibility.
  • Scan-Link™ technology for instantaneous and automatic channel configuration:
  • First, the receiver conducts an environmental frequency evaluation then selects a channel.
  • Second, the receiver links to the transmitter and sets the transmit frequency automatically.
  • Double AA batteries with >10hrs of battery life.
  • Transmitters have soft touch On & Mute switches with multi-color LED indicators.
  • Metal Chassis for a durable and formidable shielded enclosure.
  • ¼” and XLR outputs for maximum flexibility.

Specifications

Balanced Output -16dBV
Unbalanced Output -13dBV
Balanced Output 350 ohms
Unbalanced Output 250 ohms
Power Requirement 12-15VDC, 500mA (power supply included)
Dimensions (H x W x D) 1.5" (40 mm) x 9.5" (230 mm) x 4.5" (114 mm)
Net Weight 0.77 lbs, 12.3oz (350g)
Frequency Response 40Hz- 15kHz
Microphone Input -18dBV
Instrument Input -6dBv
RF Output
Power Requirement 2 x AA Batteries
Dimensions 2.56" (65 mm) x 4.25" (108 mm) x 0.938" (23 mm)
Net Weight 0.18 lbs, 2.8oz (82g)
Operating Principal Condenser
Polar Pattern Cardioid
Cable Length 52"
Connector TA4F

System Includes

  • (1) RX1200 Receiver

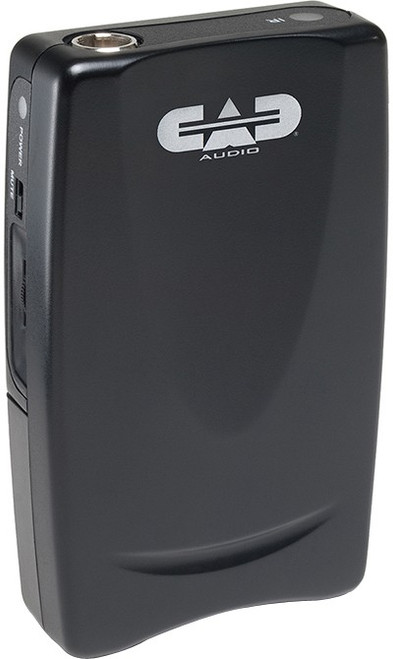

  • (1) TX1210 Bodypack Transmitter

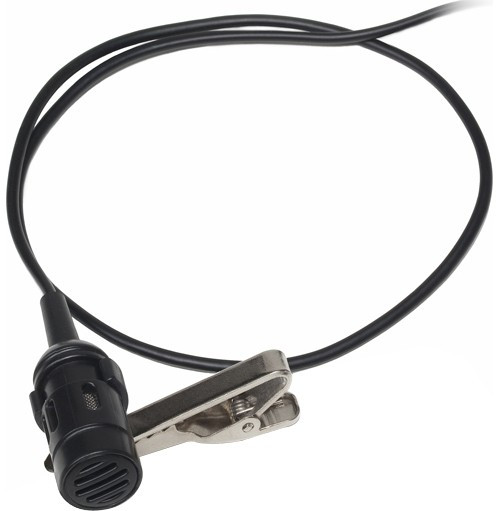

  • (1) WXLAV Cardioid Condenser Lavalier Microphone
