Califone PA920PS Companion PowerPro PA System with Wireless Receiver (Discontinued)

Part # PA920PS
Model # PA920PS

The Califone PA920PS is a powerful sound system with one built-in wireless receiver. It features 90-watts RMS of power, with a single unit easily covering crowds up to 1,000 people or many more with added wireless PowerPro companion speakers.

Description

Details

Califone PA920PS Companion PowerPro PA System with Wireless Receiver

The PowerPro PA920 is Califone's flagship PA system designed for audiences of 1,000 or more. The PA920 is flexible, easy to use and cost-effective for those who require a high-performance sound reinforcement solution but wish to avoid the effort necessary to operate a typical multi-component sound system. Designed for school venues ranging from auditoriums to assemblies, athletic events, and other large groups, the PA920 provides wireless transmission to any number of its powered companion speakers, providing expandability to handle virtually any situation.

The PA920PS is a powerful sound system with one built-in wireless receiver. It features 90W RMS of power, with a single unit easily covering crowds up to 1,000 people or many more with added wireless PowerPro companion speakers.

In addition to the 300' range of wireless reception, the PowerPro also has an active bus circuit that can be used to connect to an additional unit in a conventional wired fashion. Simply connect an XLR cord from the Line out jack to the Line-in jack on the companion speaker. The first unit in the chain is the master with each unit still retaining independent volume control.

Its fiberglass-reinforced polypropylene enclosure has a rugged powder-coated perforated steel grille and telescoping handle for easy transporting. The PA920PS gives added assurances with visual confirmation of power, radio frequency and audio reception for its wireless receiver through a set of LED lights on the front of the unit and on the receiver. Its 10" high-powered speaker provides optimal audio reproduction with independent bass and treble controls, digital master volume control, and battery status LED indicators plus a universal power supply. It is C-UL and CE approved for use in schools.

Features

Features

  • Powerful 90W RMS with weather-resistant speaker cones
  • Front LEDs for confirmation of Power, wireless reception and audio signal
  • One 16-channel UHF wireless receiver with LCD display plus volume and power control
  • Separate volume, bass, treble controls for quality sound
  • One Audio Line In XLR socket
  • Digital master volume and Battery status LED indicators
  • Battery ON/OFF switch
  • Switched/unswitched Speaker Out
  • True AC/DC 110/220 universal power supply
  • Rugged steel skid guards for protection and durability
  • 4-position steel handle for easy mobility
  • CE/UL compliant for safe use in schools, churches, and public facilities

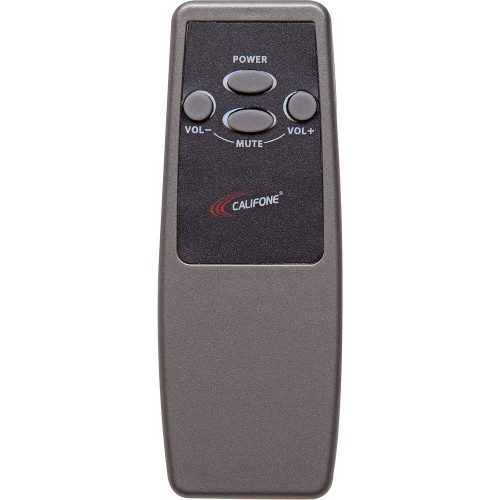

  • Includes Master volume remote control
Specification
Speaker System
SpeakerBass reflex design tuned to 50 Hz
Woofer10" Dia., 2" Dia. Voice coil, 40 oz magnet most efficient in its class, moisture resistant cone, 120W Capacity
Horn Tweeter4.25" square Compression Horn Driver, 12 Oz. Magnet, 1" diameter Voice Coil, 8 Ohm
Amplifier90W RMS
Sound Pressure Level94 dB, 1W @ 1 Meter
Power Sources
BatteriesTwo rechargeable batteries 12V/7AH
Charging TimeFull charge in 8 -10 hours
Operating Time6 hours max power output (normal music on full charge)
Power Supply320W Single Output Switching Power Supply with cooling fan
DC Output36V/8.8A­­­­
AC InputVoltage range 85~264VAC­­­
LED IndicatorsLed indicators for Battery Status and Master Volume
Power CordDetached 6', 3-Wire for safety
Mixer Panel
Audio LineLine level capable buss to connect 1 wired unit
Audio ControlsSeparate Treble & Bass Controls
Digital Master Volume ControlWith LED level indicators
Speaker OutSwitched 1/4" jack disengages main speaker, unswitched 1/4" jack divides power between main speaker and passive companion speakers
Mechanical Features
Rear PanelAngled for easier accessbility and viewing
EnclosureFiberglass reinforced polypropylene
Grille1.5 mm steel with powder-coated finish
Battery CompartmentFront-accessible with removal of two service screws
Tripod MountRecessed, molded at the optimum center of gravity
Dimensions (H x W x D)22" (559 mm) x 14" (355.6 mm) x 14" (355.6 mm)
Net Weight47 lbs (21.3 kg)
Shipping Weight52 lbs (23.5 kg)
