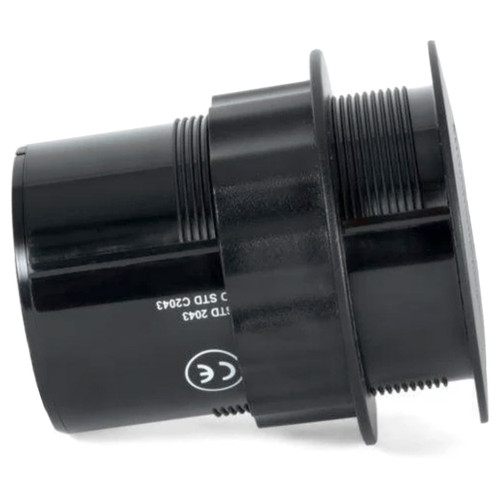

The Qt® Active Emitter, Fusion Edition (DS1320), is an advanced sound masking and paging speaker designed to deliver superior audio clarity and uniform coverage in commercial environments. Utilizing a 1.25-inch driver and patented direct-field technology, the DS1320 provides broad frequency response and high SPL for both effective sound masking and articulate paging. Its discreet, plenum-rated enclosure seamlessly integrates into both finished and open structure ceilings. This active emitter is compatible exclusively with Biamp’s Cambridge Qt X 800 and Qt X 805 series controllers and supports individual emitter addressability within the Cambridge Networked System. It meets WELL Building Standard sound masking criteria, is ETL listed, UL 2043 compliant, and includes a ceiling tile mounting ring. Optional accessories include drywall, pendant, beam, and universal mounting brackets for versatile installation options.
Note: Formerly sold under the Dynasound brand, the DS1320-B-4 continues to offer the same quality and features.
| Sound Masking Frequency Response | 125 Hz - 10,000 Hz |
|---|---|
| Music / Paging Frequency Response | 115 Hz - 12,000 Hz (-10 dB) |
| Masking Min - Max SPL | 30 dBA to 60 dBA @ 1 meter |
| Music / Paging Max SPL | 74 dBA @ 1 meter |
| Nominal Dispersion | 170 degrees conical / half space |
| Connections | Screw Terminal Plug accepts #12 to #22 AWG wire |
| Cabling | 2 conductor #18 AWG stranded wire |
| Included Accessories | Acoustic Ceiling Tile Mounting Ring |
| Maximum Power Consumption | 2 watts |
| Driver Diameter | 1.25" (32 mm) |
| Enclosure | Front Vented |
| Certification | UL 2043 |
| Dimensions (H x Dia) | 4" (89 mm) x 3.25" (83 mm) |
| Weight | 0.41 lbs (0.19 kg) |
