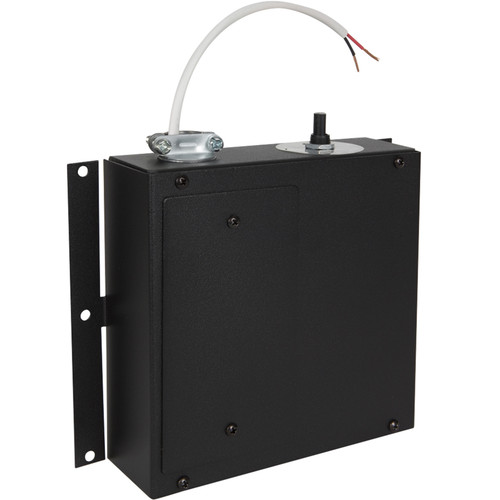

Cambridge DS2400 Pipe and Duct Sound Masker

Home /
Commercial Sound Equipment /
Commercial Audio Electronics /
Sound Masking Generators /
Cambridge DS2400 Pipe and Duct Sound Masker

Description

Details

Cambridge DS2400 for Eavesdropping Protection

The DS2400 duct, pipe, and wall sound masker is used to protect pipes, ducts, and walls against human and electronic eavesdropping by filling them with full-bandwidth sound masking. The unit may be attached to the exterior of any pipe or duct, whether square or round. It may also be attached to the vertical surface of any partition wall. The DS2400 is critical to the securing of pipes and ducts when DIAM and DCID requirements for SCIF need to be met.

The DS2400 Soundmasker may be used to ensure eavesdropping protection of pipes and ducts that breach the perimeter of a secure environment by resonating these penetrations, filling them with sound masking and/or misinformation. Additionally, it resonates with the plane of any wall along the perimeter of a secure environment. When controlled by Cambridge DS102 Series security generators and amplifiers, it also protects against sophisticated signal recovery techniques.

The DS2400 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Note: Formerly sold under the Dynasound brand, the DS2400 continues to offer the same quality and features.

Features

Features

Fills pipes, square ducts and round ducts, and walls with sound masking output
Lightweight and easy to install
Does not cause pressure drop or alter air flow when applied to ductwork
Durable plenum-rated metal housing
Compliant with the US Trade Agreement Act (TAA)
Met Works with WELL licensing criteria for sound masking.
5-year warranty

Specification

Driver	Non-conventional security type
Transformer	Primary 70.7V, Secondary 8 Ohms, Switch Positions: 1/8, 1/4, 1/2, 1, 2, 4 watts
Frequency Response	20 - 20 kHz (filter bypassed)
Finish	Black
Dimensions (H x W x D)	1.75" (44.45 mm) x 5" (127 mm) x 5" (127 mm)
Weight	2 lbs (0.91 kg)
