Cambridge Qt 600 Multi-Zone Sound Masking Generator
The Cambridge Qt® 600 is ideal for medium to large multi-zone spaces of up to 72,000 square feet (6,689 m2). This system is capable of covering up to 6 diverse areas in buildings needing improved speech privacy.
This robust and feature-rich system is easy to control and maintain. Users can adjust system settings via the easy-interface front panel, and can also set up error reporting and establish time dependent masking levels via their PC, Mac or tablet device using the intuitive Qt® Monitoring and Control Software. Additionally, the Qt 600 is an integrated solution offering sound masking along with paging and music via the two auxiliary audio inputs.

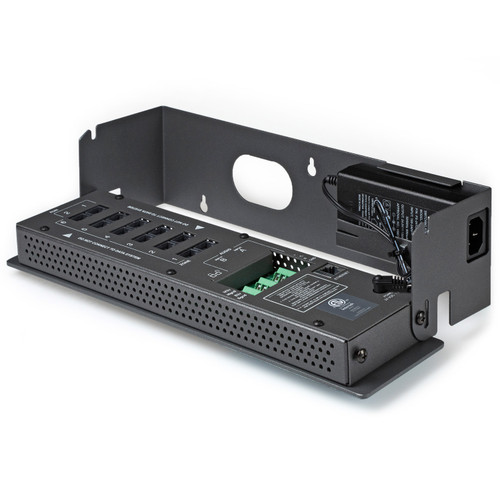

Wall Mount Installation
Wall mount bracket comes standard with the controller. When wall mounted, the chassis flips down for easy access to all rear input connections.

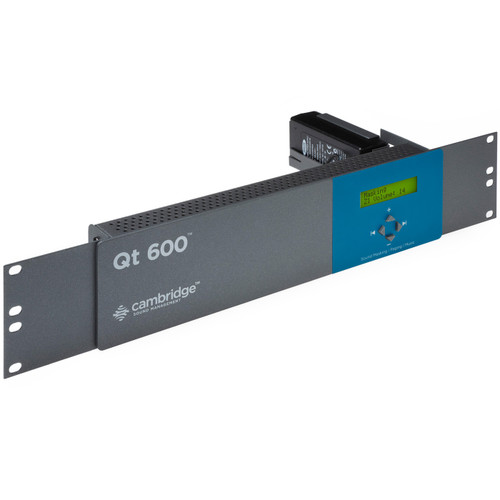

Rack Mount Installation
The rack mount kit permits mounting of the controller onto an industry standard 19” (48.3 cm) EIA or NEMA equipment rack.
| Operating Temperature Range | 40˚F - 90˚F (4˚C - 32˚C) |
|---|---|
| Power Requirements | 100 - 240 VAC, 27 watts |
| Zones | 6 |
| Emitter Run Connector Type | RJ-45 (Bent 3-tyne) |
| Aux. Audio Inputs | 2 fixed terminal blocks |
| Aux. Audio Input Level | -10 dBV Nominal, 2 Vrms max |
| Aux. Input Equalization | Adjustable +/- 12 dB in ISO standard octave bands |
| Emitter Capacity | 60 per run, 120 per zone, 720 total |
| Max. Coverage Area (10’ Ceiling) | 72,000 ft2 (6,689 m2 ) |
| Masking Spectrum | Preset at factory to CSM standard spectrum (recommended) |
| Masking Spectrum Equalization | Adjustable +/- 12 dB in ISO standard 1/3 octave bands |
| Masking Channels | 4 per zone |
| Time of Day Masking Level Control | RTC with battery backup. Per-zone day/night levels and start times, ramping interval, and weekday/Sat/Sun behavior |
| Network Access for Control and Monitoring | Yes |
| Security | "Hidden" front-panel lock switch; username and password required for network access; fixed terminal block contact closure |
| Standards and Certifications | ASTM E1130-08 GreenSpec Listed FCC Part 15 Compliant RoHS Compliant CE |
| Safety | Conforms to: US STD 60065 CAN/CSA STD C22 2 60065 ETL Listed |
| Dimensions (H x W x D) | 3.5" (88.9 mm) x 13.5" (342.9 mm) x 3.8" (96.52 mm) |
| Weight | 3 lbs (1.4 kg) |
