The Qt Conference Room Edition from Cambridge Sound Management is a cost-effective solution specifically designed to protect the speech privacy of conversations in conference and board rooms.
All-in-One Solution for Conference Room Privacy

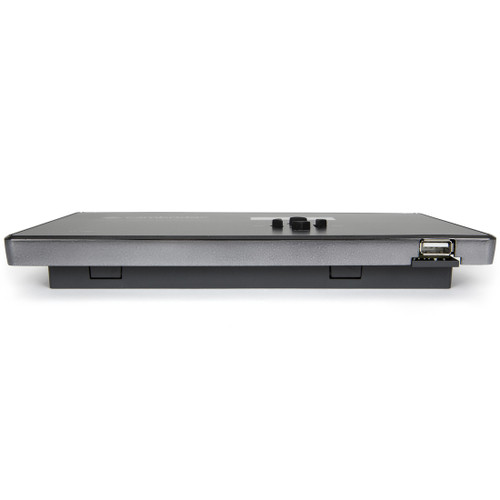

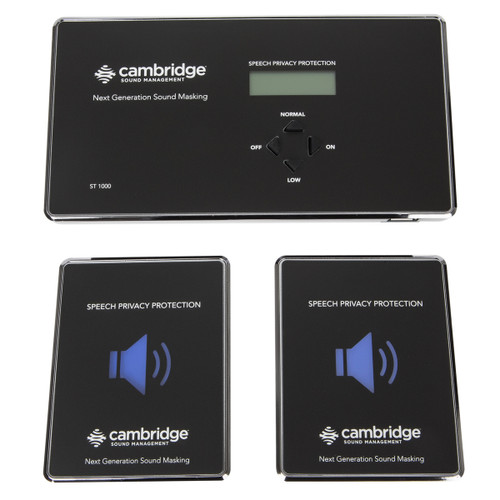

The Qt Conference Room Edition consists of a control module, two lighted privacy signs, and a series of direct-field sound masking emitters. When a room occupant turns on the control module inside of the conference room, it powers the sound masking emitters placed in the ceiling just outside of the conference room. The emitters add a low level of background sound making human speech less intelligible. Lighted privacy signs inside and outside of the conference room indicate the system is running, and let conference room occupants know their conversations are being protected. The entire speech privacy system is GreenSpec listed, consuming less than 7 watts of power. The Qt Conference Room system can be turned on and off as needed for meetings - or left running at all times.
Easy to Retrofit into Existing Conference Rooms
Often overlooked in conference room design and construction is the potential for private conversations to travel easily under, over, or even through walls and doors. In fact, according to a recent study fifty-three percent of support staff workers have overheard confidential conversations at work. Install the Qt Conference Room Edition today to ensure your private meetings remain private. Privacy signs can be surface mounted, glass mounted, or mounted into a gang box, easily blending in with modern office decor.
Not sure if this is the right Sound Masking System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.
| Control Processor/Privacy Signage | |
|---|---|
| Sound Masking Frequency Response | 200 Hz -6,300 Hz |
| Music / Paging Frequency Response | 200 Hz to 10,000 Hz |
| Masking Min - Max SPL | 30 dBA to 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| User Adjustable Equalization | None - Internally Fixed Masking Spectrum |
| Non Correlated Masking Sources | 4 Masking Sources |
| Number of Masking Zones | 1 Zone - (2 Cable Runs per Zone) |
| Number of Audio Inputs | 1 Audio Input - (Stereo or Mono) |
| Audio Input Level | +4 dBu (2 Volts RMS Max) |
| Audio Input Impedance | 5000 Ω |
| Audio Input Connector | Captive Screw Terminal (Balanced / Unbalanced) |
| Remote Control Function | Quantity 1 - Contact Closure Input (Normally Open) / Qty 1 - 5Vdc Logic Status Output |
| Remote Control Connector | Captive Screw Terminals |
| Minimum Output Impedance | 7Ω per channel |
| Power Input | Captive Screw Terminal & Coax Power Plug (center pin positive) |
| Privacy Sign Connections Controller | Qty 2 - Captive Screw Terminals - 5Vdc Output @75ma (confirm sign power draw) |
| Privacy Sign Connections Sign | Qty 1 - Spring Loaded Push Terminals - 5 Vdc input @ 75ma current draw |
| Output Connections | RJ45 x Quantity 2 (8 Conductor) |
| Masking Level Adjustment | Four Front Panel Buttons w/ LCD Display - 0.5 dB steps |
| Masking Ramp Times | 0 to 120 Seconds - up and down ramp times are independent (Front Panel / Remote Control) |
| Audio Input Level Adjustment | Four Front Panel Buttons w/ LCD Display - 1 dB steps |
| Setup Menu Access | Four Front Panel Buttons w/ LCD Display |
| Emitter / Device Capacity | 60 Qt Emitters per Run - 120 Qt Emitters Total |
| Maximum Emitter Cabling Distance | 1000ft (300 meters) per cable run |
| Maximum Power Consumption | 7 Watts @ 24 VDC |
| Power Supply Operating Voltage | Input: 100 - 240 VAC @ .6 Amp Output: 24 VDC @ 1.0 Amp |
| Included Control Processor Accessories | Power Supply / ACT Hole Saw / Box Adapter Plate (4-Gang US - 3- Gang UK/EU) / ST-1000 Back Box |
| Included Privacy Sign Accessories | Qty 2 - Single Gang Electrical Enclosure Backing Plate / Qty 2 - Glass Finishing Plate with Adhesive Strips |
| Firmware Update | Yes - Integrated USB Connector |
| Controller Mounting | Wall Mount - (Back plate included) / Electrical Box (US/UK/EU Adapter Included) / Supplied Backbox |
| Privacy Sign Mounting | Single Gang Electrical Enclosure (North American Nema or EU/UK types) / Self Adhesive Strips |
| Control Processor Color | Black |
| Privacy Sign Color | Black w/ Blue LED |
| Operating Temperature Range | 40°F to 90°F (4°C to 32°C) |
| Certifications | FCC Part 15 RoHS Compliant CE US STD 60065 CAN/CSA STC C22 2 60065 ETL Listed Green Spec Listed |
| Privacy Sign Dimensions (H x W x D) | 0.19" (4.826 mm) x 3.5" (88.9 mm) x 4.5" (114 mm) |
| Control Processor Dimensions (H x W x D) | 0.875.0" (22.2 mm) x 7.0" (177.8 mm) x 3.5" (88.9 mm) |
| Weight | Control Module: 0.7 lbs (300 g) Privacy Signs: 0.1 lbs (50 g) |
| Qt-Emitter | |
| Sound Masking Frequency Response | 200 Hz - 10,000 Hz |
| Music / Paging Frequency Response | 200 Hz - 10,000 Hz (-10 dB) |
| Masking Min - Max SPL | 30 dBA - 60 dBA @ 1 meter distance |
| Music / Paging Max SPL | 62 dBA @ 1 meter distance |
| Nominal Impedance | 3600 Ω |
| Nominal Dispersion | 170 degrees conical / half space |
| Connections | Input / Output - RJ45 Modular Jack |
| Channel Selection | Four Channel Auto Sequencing and Repeating |
| Selectable Attenuation | 0 dB, -3 dB, -6 dB, -9 dB |
| Cabling | Category UTP Cabling (8 conductor) |
| Included Accessories | Acoustic Ceiling Tile Mounting Ring - UTP Cable (16ft/30ft) |
| Loudspeaker Type | Passive w/ Transformer |
| Maximum Power Consumption | .110 Watts |
| Privacy Sign Cabling Type | CMP (Plenum) 20AWG 2 Conductor Cable |
| Enclosure | Sealed |
| Color | White (Optional Black Caps and Accessories) |
| Certifications | UL 2043 |
| Cabling | Qty 1 - 50ft Emitter Cable / Qty 7 -16ft Emitter Cables / Qty 2 - 50ft Privacy Sign Cables - Included in Kit |
| Emitter Cabling Type | CMP (Plenum) UTP Twisted Category 3 Cable |
| Driver Dimensions (Dia) | 1.25" (32 mm) |
| Emitter Dimensions (H x Dia) | 2.5" (64 mm) x 3.25" (83 mm) |
| Weight | 0.35 lbs (0.159 kg) |
