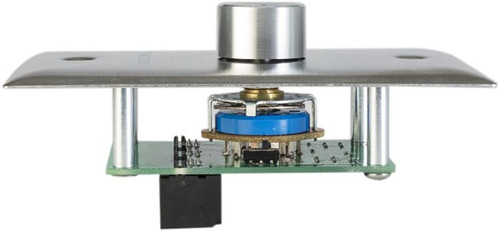

The Cambridge Qt Room Control Volume Control can be used to adjust the sound masking level for an individual room or a space with 2-8 emitters. This wall mounted volume control unit is designed to work with any of the Cambridge Sound Management sound masking systems. It installs easily in new or existing construction and fits in most standard electrical boxes, including open back, low voltage brackets. Since the QtRC is designed for a room of up to 8 emitters, a separate zone should be used in larger areas. The QtRC controlled room can be its own run from the controller or part of a run to other areas. For more information, refer to the Qt Room Control Installation and Operations Guide.
| FREQUENCY RESPONSE | +/- 1 dB in 1/3 Octave bands over entire speech range as equalized by the control module |
|---|---|
| MAXIMUM OUTPUT | 57 dB based on controller setting |
| NOMINAL IMPEDANCE | 4000 ohms |
| WIRING | CAT 3, 5, 6 cables |
| CONNECTIONS | 3x RJ-45 jacks (sound masking input, output to the next room (optional) and output to room emitters) |
| Impedance Protection | Protects up to 8 emitters |
| Mounting Configuration | Standard single duplex electrical box |
| Volume Increments | Nominally in 2.5 dBA decrements from -12.5 dBA to 0.0 dBA |
| Dimensions (W x H x D) | 1.6” x 4.1” x 3.0”(4.0 cm x 10.4 cm x 7.6 cm) |
| Weight | 0.35 lbs (158.75 grams) |
